Rockwell Automation 20G PowerFlex 750-Series AC Drives - Manual (Page 110)

110 Rockwell Automation Publication 750-RM002B-EN-P - September 2013
Chapter 2 Feedback and I/O

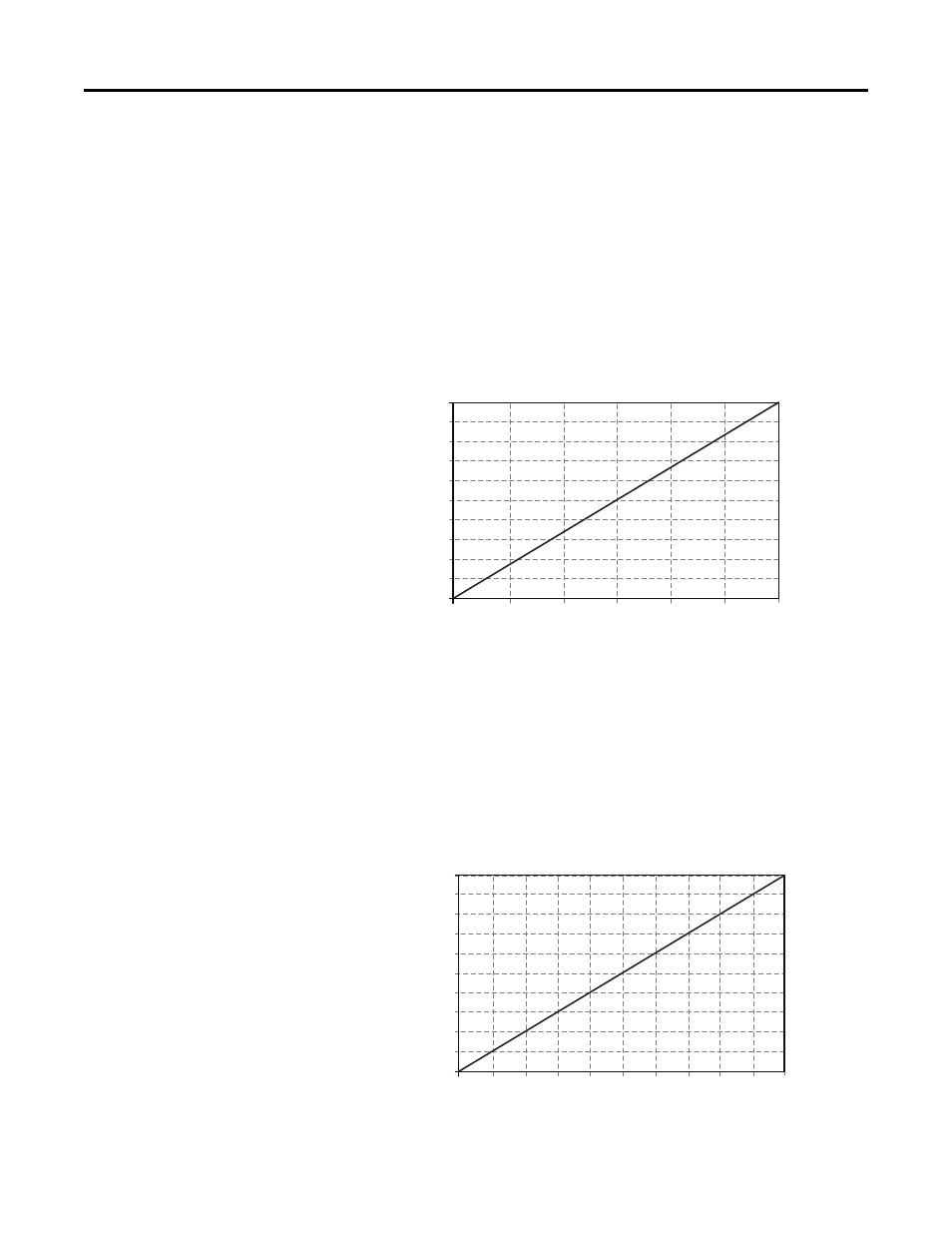

Example 6
• P255 [Anlg In Type], Bit 0 = “0” (Voltage)
• P545 [Spd Ref A Sel] = “Analog In 1”
• P547 [Spd Ref A AnlgHi] = 60 Hz
• P548 [Spd Ref A AnlgLo] = 0 Hz
• P61 [Anlg In1 Hi] = 5V
• P62 [Anlg In1 Lo] = 0V
This configuration is used when the input signal is 0…5V. Here, minimum input
(0V) represents 0 Hz and maximum input (5V) represents 60 Hz. This provides
full scale operation from a 0…5V source.
Example 7
• P255 [Anlg In Type], Bit 0 = “0” (Voltage)
• P675 [Trq Ref A Sel] = “Analog In 1”
• P677 [Trq Ref A AnlgHi] = 200%
• P678 [Trq Ref A AnlgLo] = 0%
This configuration is used when the input signal is 0…10V. The minimum input
of 0V represents a torque reference of 0% and maximum input of 10V represents
a torque reference of 200%.
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
0 10 20 30 40 50 60
Output Hertz
Inp
ut V
ol
ts
10
9
8
7
6
5
4
3
2
1
0
0 20 40 60 80 100 120 140 160 180 200
Torque Ref %
Inpu
t V
ol
ts
