Integrated Motion on the EtherNet/IP Network Applications for PowerFlex 755 AC Drives Chapter 6
Speed Limited Adjustable
Torque (SLAT) This topic describes how to configure a PowerFlex® 755 AC drive with embedded
Ethernet/IP for Speed Limited Adjustable Torque (SLAT) operation using an
Integrated Motion on the Ethernet/IP network in Logix Designer application.
For more information on SLAT refer to the following publications:
• See Speed Limited Adjustable Torque (SLAT) Min Mode and SLAT Max
Mode in the PowerFlex 700S AC Drives with Phase II Control Reference
Manual, publication
PFLEX-RM003 .
• See Slat Configuration in the Integrated Motion on the Ethernet/IP
Network Reference Manual, publication
MOTION-RM003 .
Add a PowerFlex 755 Drive Module to Your Project
See the Integrated Motion on the Ethernet/IP Network Configuration and
Startup User Manual, publication
MOTION-UM003 , for specific instructions
on adding a PowerFlex 755 with embedded Ethernet/IP drive module to your

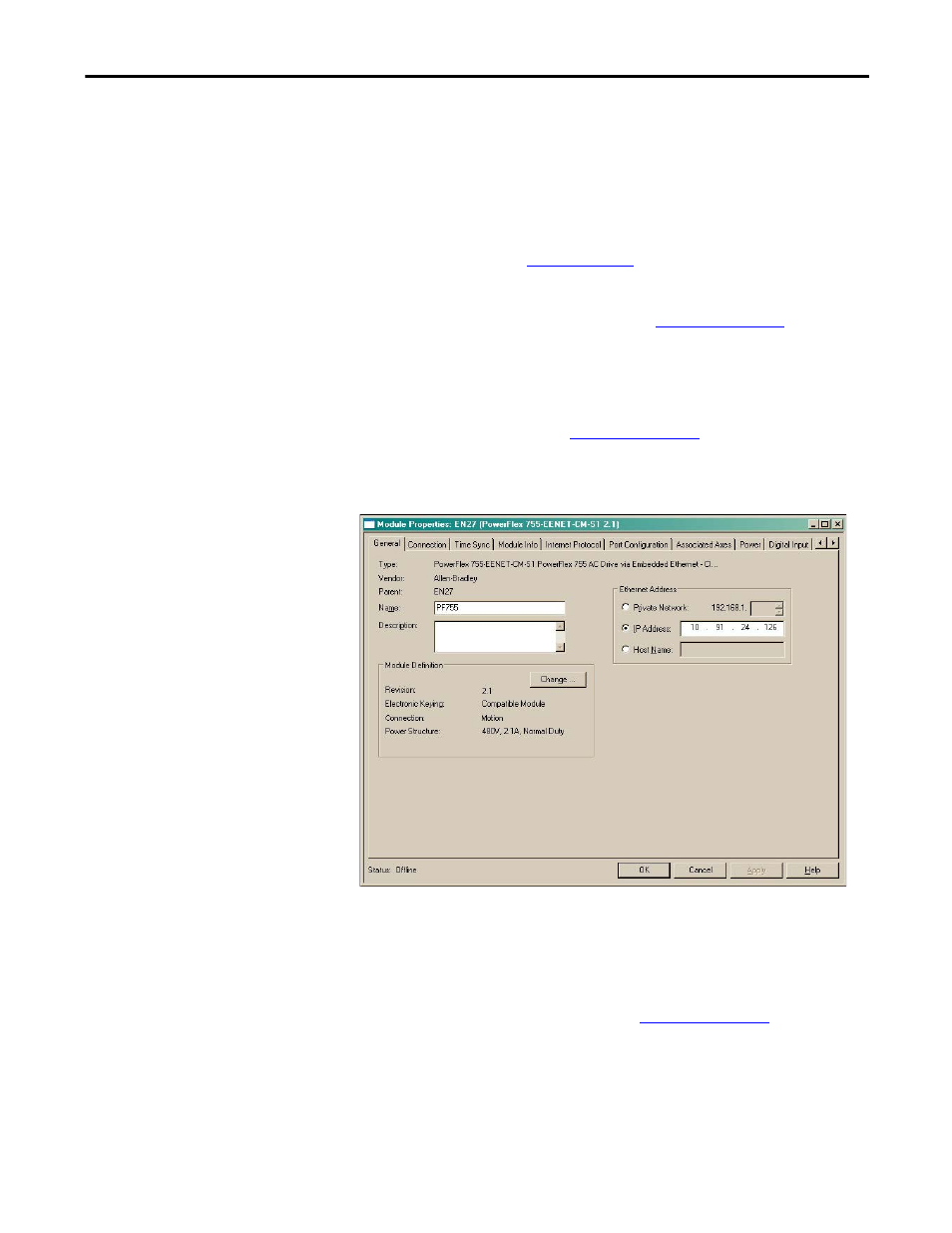

project. An example Module Properties dialog box for a PowerFlex 755 with
embedded Ethernet/IP is shown here.
Create and Configure an Axis for the PowerFlex 755 Drive
1. See the Integrated Motion on the Ethernet/IP Network Configuration
and Startup User Manual, publication
MOTION-UM003 , for specific
instructions on creating and configuring the axis for the PowerFlex 755
drive.
