Rockwell Automation Publication 750-RM002B-EN-P - September 2013 327
Integrated Motion on the EtherNet/IP Network Applications for PowerFlex 755 AC Drives Chapter 6
Table 17 - Induction Motor Data Instance to Parameter Cross Reference

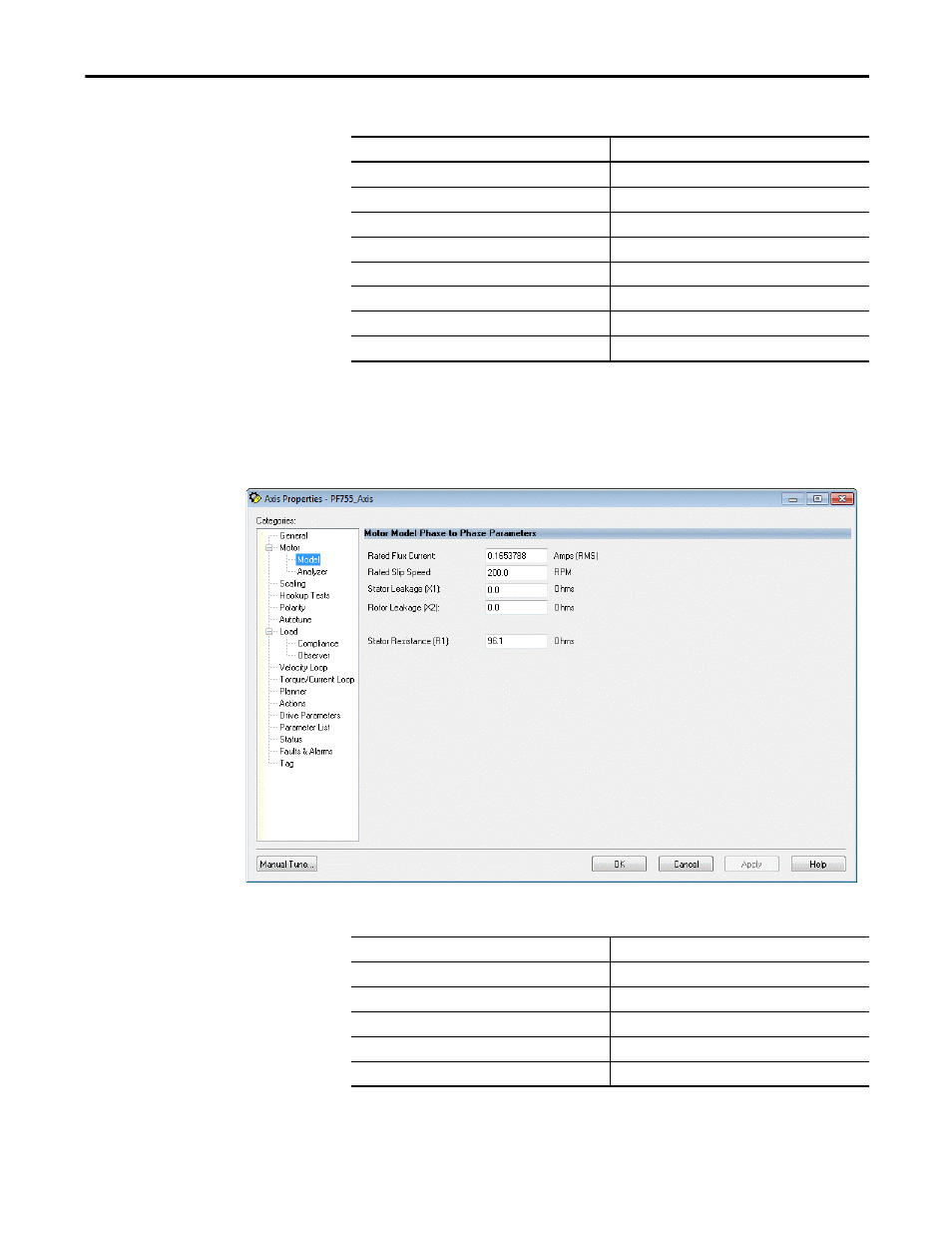

Induction Motor Model Axis Properties Configuration
Induction Motor Model Motion Axis Parameters
Table 18 - Induction Motor Model Instance to Parameter Cross Reference
Integrated Motion on EtherNet/IP Instance Drive Parameter
Induction Motor Rated Frequency P27 [Motor NP Hertz]
Motor Overload Limit P413 [Mtr OL Factor]
Motor Rated Continuous Current P26 [Motor NP Amps]
Motor Rated Output Power P30 [Motor NP Power]
Motor Rated Voltage P25 [Motor NP Volts]
Motor Type P35 [Motor Cntl Mode]
Rotary Motor Poles P31 [Motor Poles]
Rotary Motor Rated Speed P28 [Motor NP RPM]
Integrated Motion on EtherNet/IP Instance Drive Parameter
Induction Motor Flux Current P75 [Flux Current Ref]
Induction Motor Rated Slip Speed P621 [Slip RPM at FLA]
Induction Motor Stator Leakage Resistance P74 [Ixo Voltage Drop]
Induction Motor Rotor Leakage Resistance P74 [Ixo Voltage Drop]
Induction Motor Stator Resistance P73 [IR Voltage Drop]
