Chapter 3 Diagnostics and Protection
Normal Duty and Heavy Duty Operation
Applications require different amounts of overload current. Sizing a drive for
Normal Duty provides 110% for 60 seconds and 150% for 3 seconds. For a heavy
duty application, one larger drive rating than the motor is used and therefore
provides a larger amount of overload current in comparison to the motor rating.
Heavy duty sizing provides at least 150% for 60 seconds and 180% for 3 seconds.
These percentages are with respect to the connected motor rating.
Thermal Manager
The thermal manager assures that the thermal ratings of the power module are
not exceeded. The operation of the thermal manager can be thought of as a

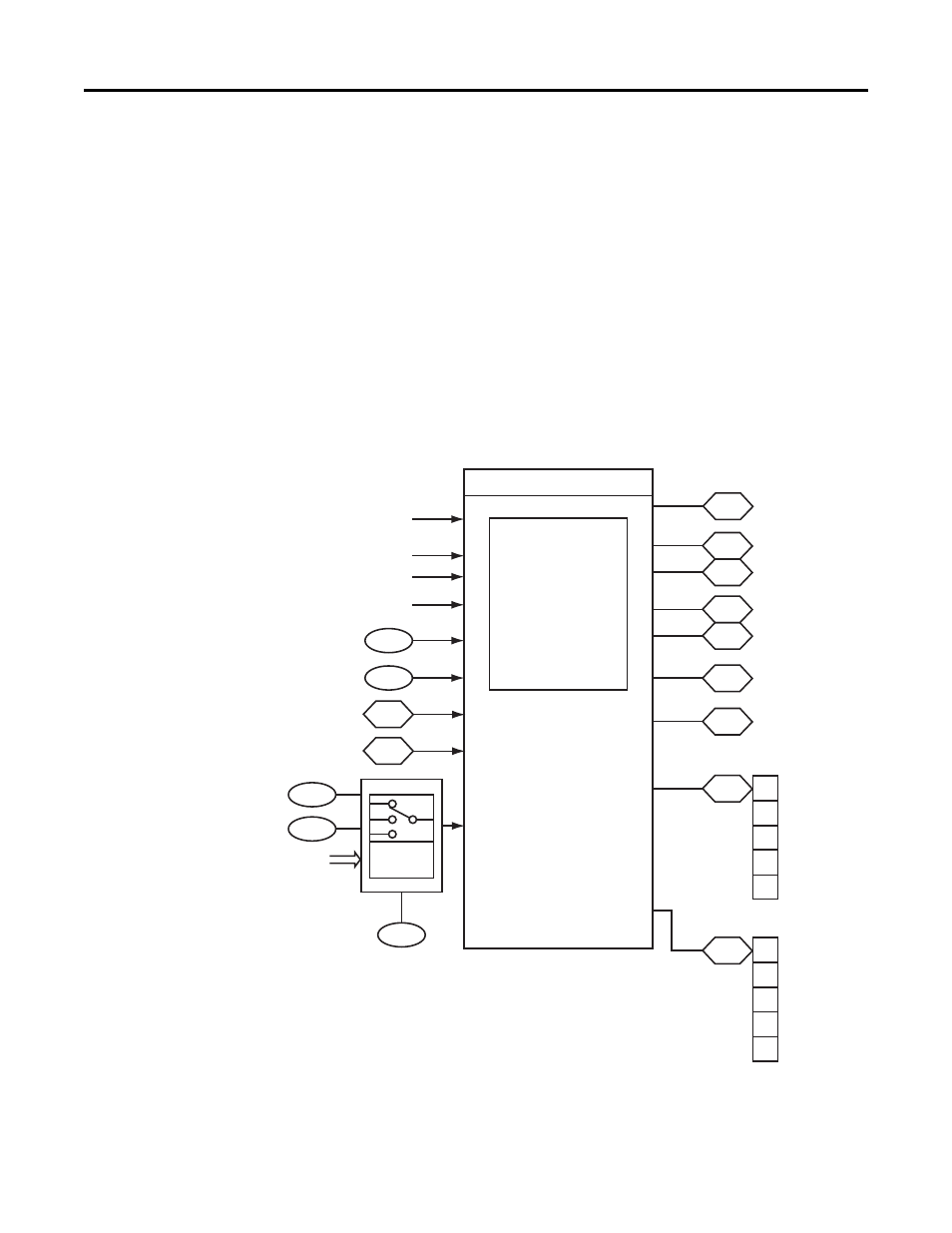

function block with the inputs and outputs as shown below.
The following is a generalization of the calculations done by the thermal
manager. The IGBT junction temperature is calculated based on the measured
