Integrated Motion on the EtherNet/IP Network Applications for PowerFlex 755 AC Drives
Chapter 6
When the axis configuration is set to Frequency Control, you can select one of
the following control methods that best suits the application:
•
Basic Volts/Hertz
•
Fan/Pump Volts/Hertz
•
Sensorless Vector
•
Induction FV

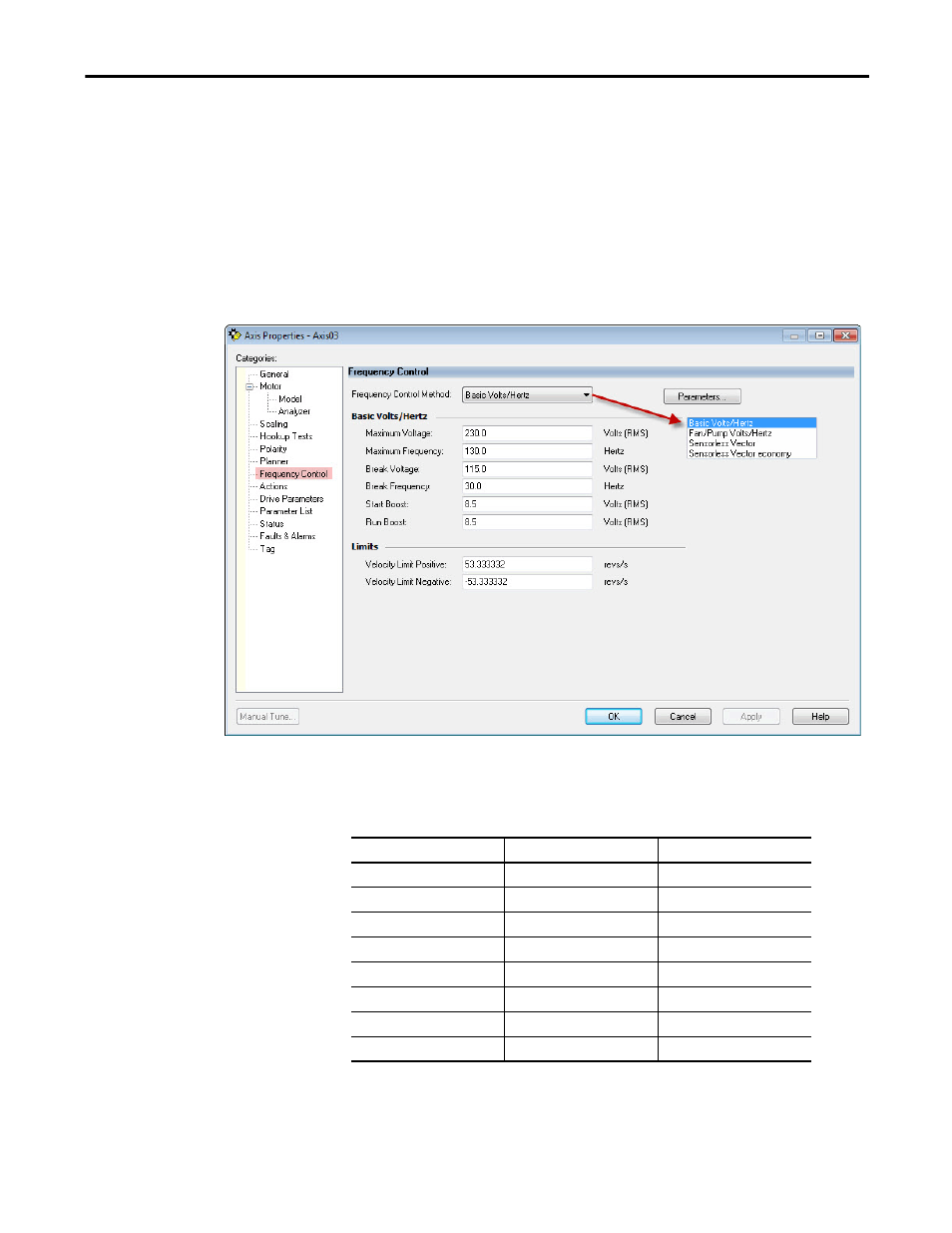

The selection options of the axis configuration within the Logix Designer
application Axis Properties, Frequency Control tab are shown here.
This table contains the possible axis configurations and corresponding control
modes of the PowerFlex 755 drive on the Integrated Motion on the EtherNet/IP
Network.
Axis Configuration
P35 [Motor Ctrl Mode]
P65 [VHz Curve]
Frequency Control:
Basic Volts/Hertz
InductionVHz
Custom V/Hz
Fan/Pump Volts/Hertz
InductionVHz
Fan/Pump
Sensorless Vector
Induction SV
Custom V/Hz
Sensorless Vector economy
Induct Econ
Custom V/Hz
Position Loop
Induction FV
Custom V/Hz
Velocity Loop
Induction FV
Custom V/Hz
Torque Loop
Induction FV
Custom V/Hz
