Homing activation, Homing to limit switch with feedback – Rockwell Automation 20G PowerFlex 750-Series AC Drives User Manual

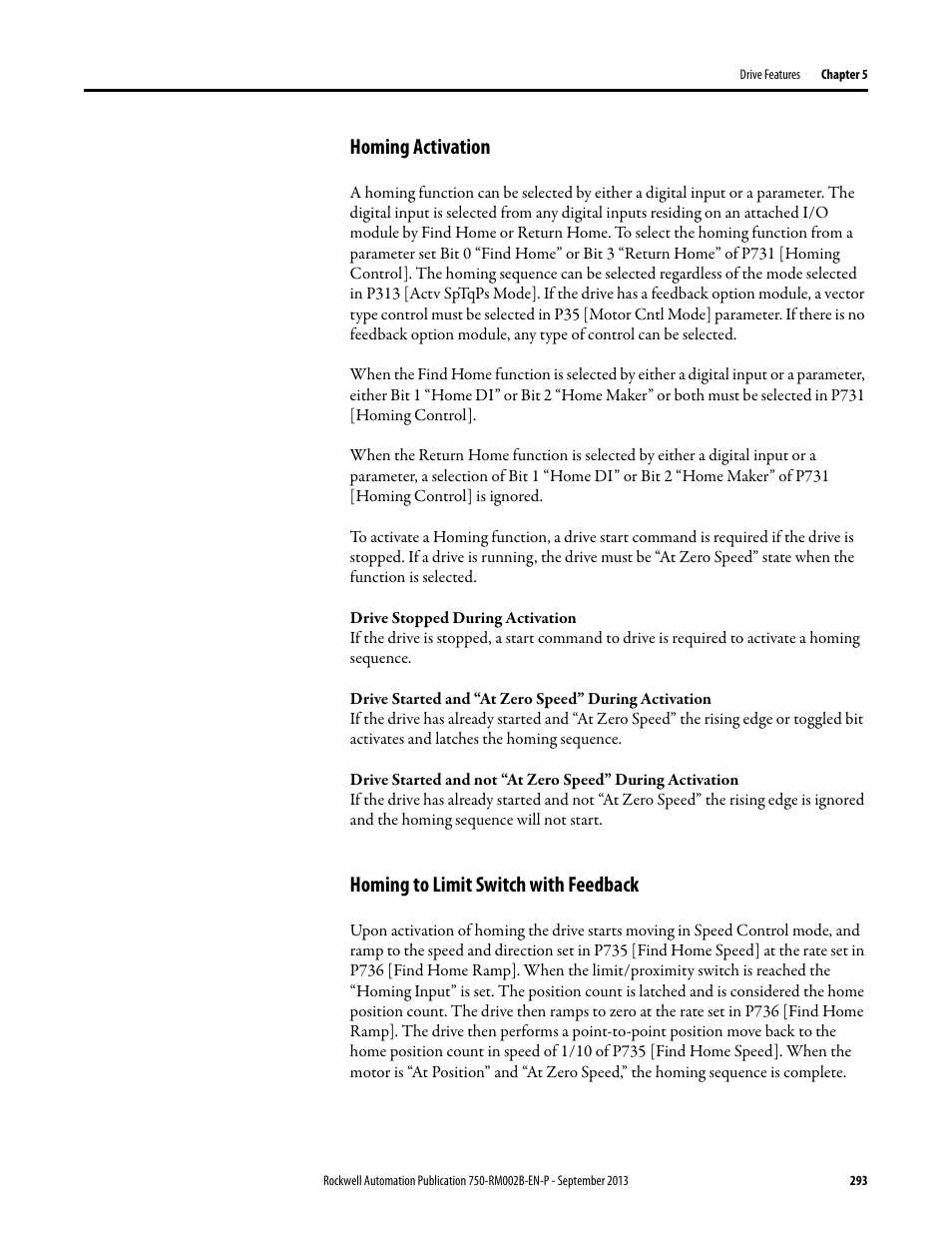

Page 293
