Chapter 1
Installation and Wiring
I/O Signal and Control Wiring
Eight (8) digital inputs, four (4) digital outputs, three (3) analog inputs, and two
(2) analog outputs are available on the standard I/O terminal blocks provided
with the drive. One digital input (1…8) must be configured for “Enable” (digital
input 4 by default = “Enable”). See I/O and Control Wire Routing on page
for information on routing I/O signal and control wires.
Additional digital and analog I/O is available when using the optional I/O
Expansion circuit board. See
for more information. Also, you can use
the optional 115V AC Converter circuit board to convert 115V AC digital input
signals to 24V DC digital inputs signals to interface with the digital inputs on the
standard I/O terminal blocks. See
for more information.
Table 32 - Analog I/O, Digital I/O and DC Analog Tachometer Wire Sizes and Terminal
Specifications

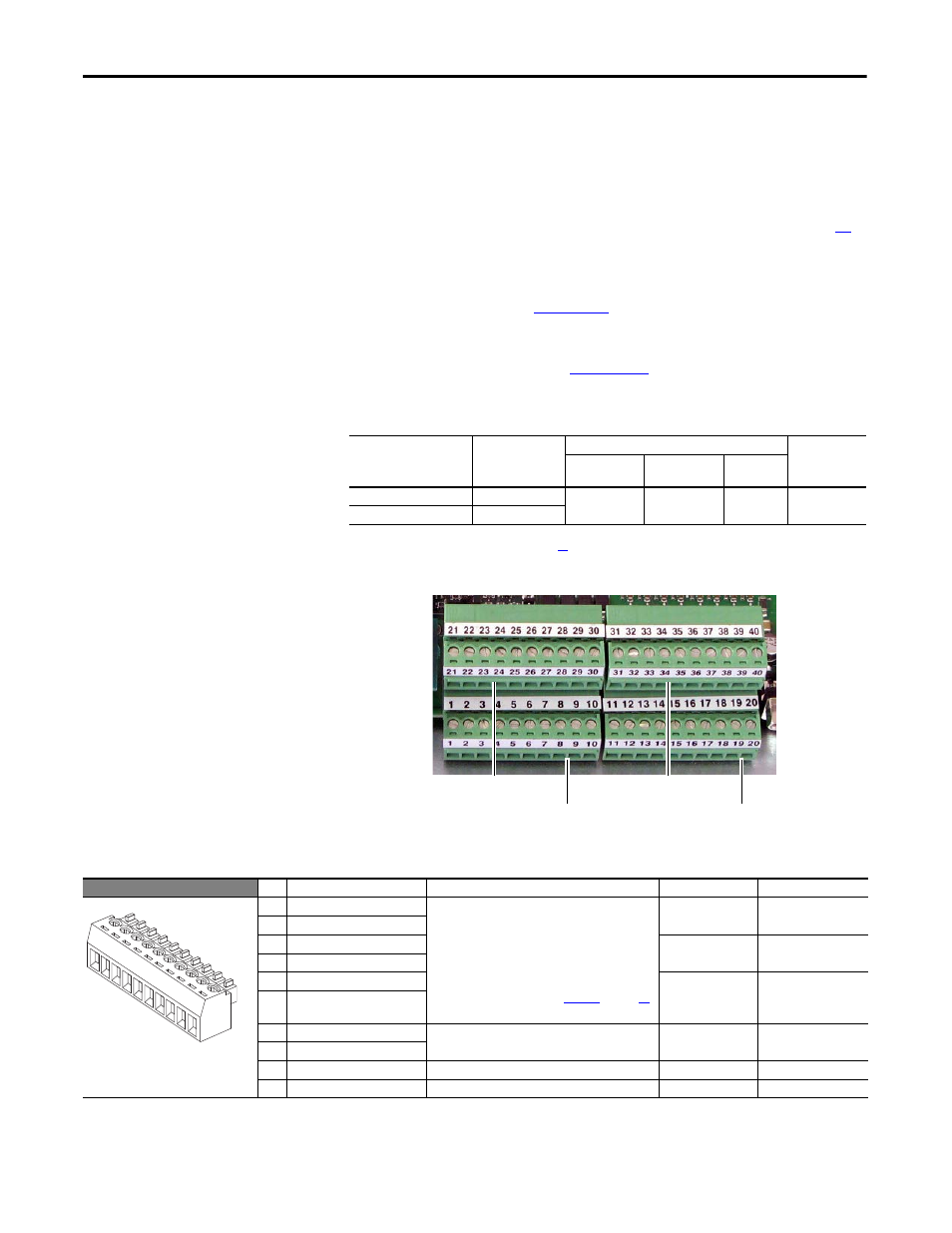

Figure 52 - I/O Terminal Block Locations
Table 33 - I/O Terminal Block 1 Designations
Signal Type
Terminal Block
(Terminals)
Wire Size and Type
(1)
(1) See Cable and Wiring Recommendations on page
for more information.
Tightening
Torque
N
•
m (lb
•
in)
Flexible (mm
2
) Multi-core
(mm
2
)
AWG
Analog and Digital I/O
TB1…4 (1…40)
0.140…1.500
0.140…1.500
26…16
0.4 (3.5)
DC Analog Tach
M3 (+ and –)
Terminal Block 3
Terminal Block 1
Terminal Block 4
Terminal Block 2
No.
Signal
Description
Factory Default
Config. Parameter
1
Analog Input 1 (+)
Isolated
(1)
, bipolar, differential
±
10V / 0…20 mA or 4…20 mA.
Important: 0…20 mA or 4…20 mA operation
requires that switch S9, S10, and S11 on the control
board be in the “Off” position. Drive damage may
occur if the switch is not in the correct position based
on the type of input signal. See
on page
Max
±
10V, Max 0.25 mA.
1 “Speed Ref A”
70 [Anlg In1 Sel]
2
Analog Input 1 (–)
3
Analog Input 2 (+)
0 “Off”
75 [Anlg In2 Sel]
4
Analog Input 2 (–)
5
Analog Input 3 (+)
0 “Off”
80 [Anlg In3 Sel]
6
Analog Input 3 (–)
7
+10V Pot Reference
2…5 k
Ω
load. Max
±
10V, 10 mA.
–
–
8
–10V Pot Reference
9
Pot Common
For (+) and (–) 10V pot references.
–
–
10
PE ground
PE ground to drive chassis.
–
–
(1) Differential Isolation - External source must be maintained at less than 160V with respect to PE. Input provides high common mode immunity.
