Chapter 1 Installation and Wiring
Mounting Considerations Operating Conditions and Temperatures
PowerFlex DC drives are designed to operate at 0…50 °C (32…122 °F)
surrounding air temperature without derating. The drive must be mounted in a
clean, dry location. Contaminants such as oils, corrosive vapors and abrasive
debris must be kept out of the enclosure. NEMA/UL Type Open, IP20
enclosures are intended for indoor use primarily to provide a degree of protection
against contact with enclosed equipment. These enclosures offer no protection
against airborne contaminants.
Minimum Mounting Clearances
Minimum clearance requirements (indicated in Figure 1 ) are intended to be from
drive to drive. Other objects can occupy this space; however, reduced airflow may
cause protection circuits to fault the drive. The drive must be mounted in a
vertical orientation as shown below and must not be mounted at an angle greater
than 30 degrees from vertical. In addition, inlet air temperature must not exceed
the product specification.

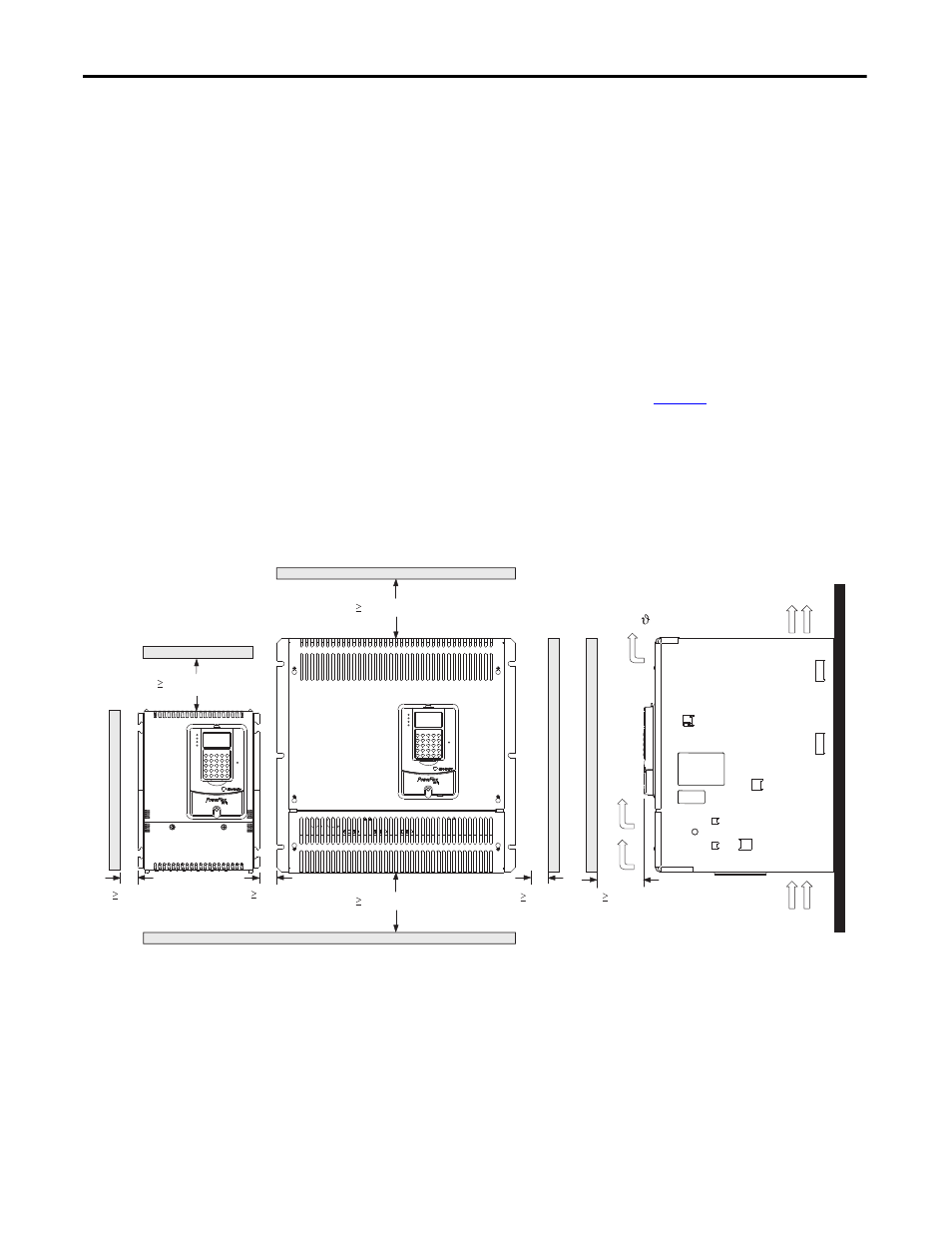

Figure 1 - Drive Enclosure Minimum Mounting Clearances
10 mm 10 mm 50 mm
(0.4 in.) (0.4 in.) (2.0 in.)
10 mm
(0.4 in.)
150 mm (6.0 in.)
150 mm (6.0 in.)
150 mm (6.0 in.)
STS
PORT MOD
NET A NET B STS
PORT
MOD NET A
NET B
Airflow through the
drive must not be
impeded.
