Analog input configuration, Example 1, Example 2 – Rockwell Automation 20P PowerFlex Digital DC Drive User Manual

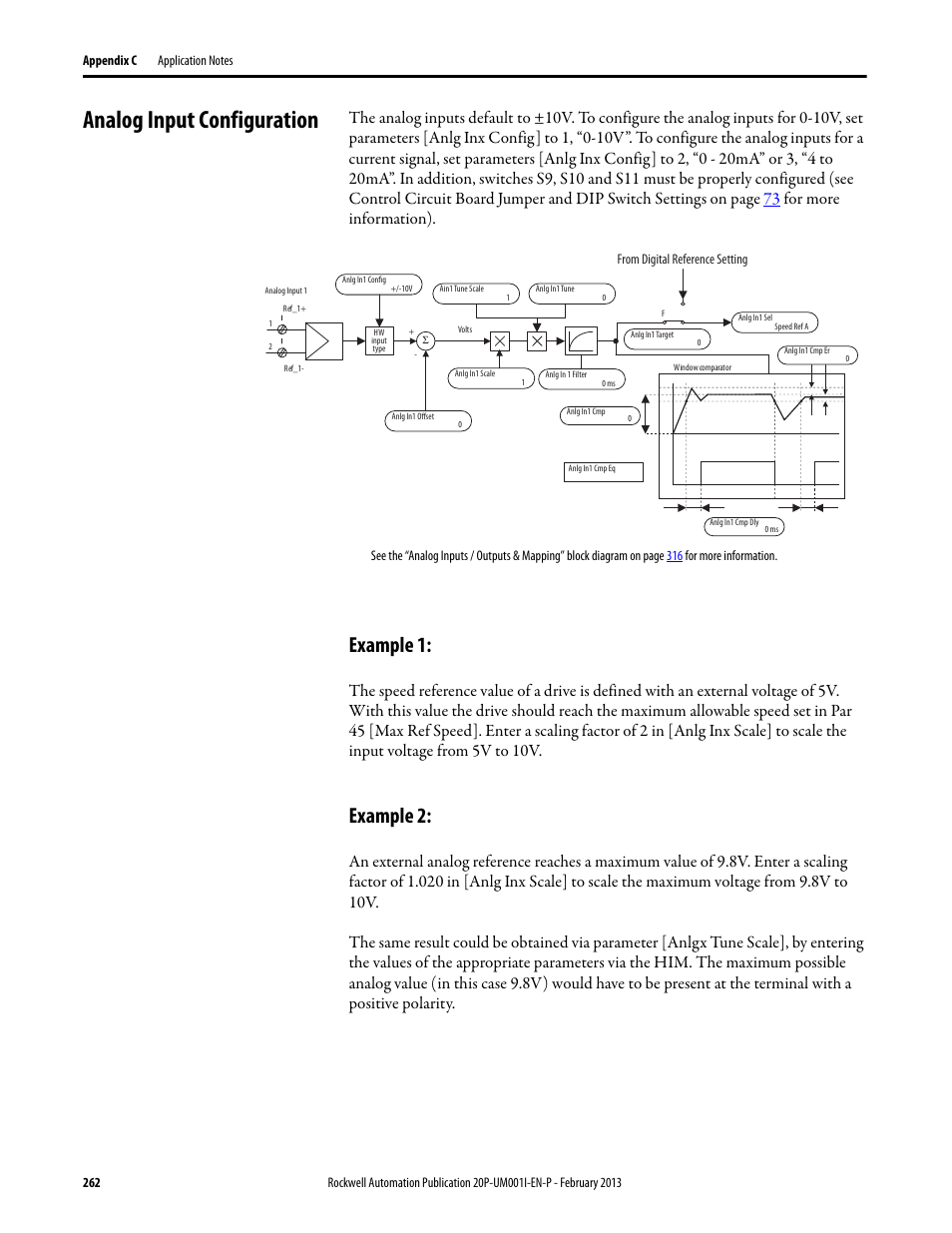

Page 262: Example 1: example 2, Analog input configuration on
