Extensions for automation
I/O function module E82ZAFACO10 (application I/O PT)
Installation
7
l
201 EDS82EV903 EN 3.0

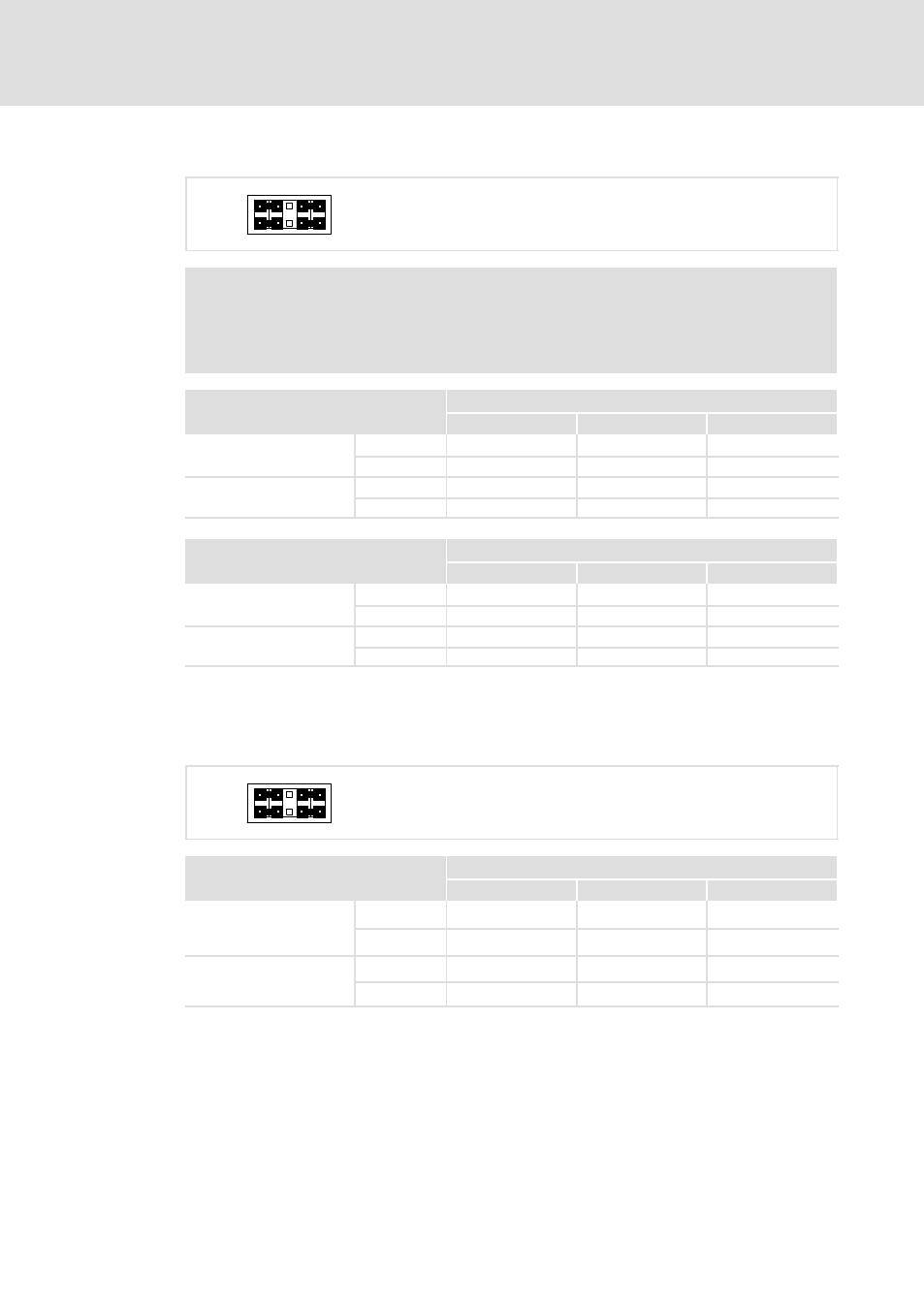

Analog input configuration
10
9
8
7
2
1
4
3
6
5
Lenze setting (bold printing in tables)
Ÿ 1 − 3
Ÿ 2 − 4
Ÿ 7 − 9
Ÿ 8 − 10
)
Note!
If a setpoint potentiometer is supplied internally via X3.2/9, the jumper must
be set between 0 ... +5 V. Otherwise it is not possible to use the whole speed
range.
Analog inputs Possible levels
0 ... +5 V 0 ... +10 V −10 ... +10 V
X3.1/1U
Analog input 1, AIN1 Jumper 7 − 9: free 7 − 9 7 − 9
Code C0034/1 = 0 C0034/1 = 0 C0034/1 = 1
X3.1/2U
Analog input 2, AIN2 Jumper 8 − 10: free 8 − 10 8 − 10
Code C0034/2 = 0 C0034/2 = 0 C0034/2 = 1
Analog inputs Possible levels
0 ... +20 mA +4 ... +20 mA +4 ... +20 mA 1)
X3.1/1I
Analog input 1, AIN1 Jumper optional optional optional
Code C0034/1 = 2 C0034/1 = 3 C0034/1 = 4
X3.1/2I
Analog input 2, AIN2 Jumper optional optional optional
Code C0034/2 = 2 C0034/2 = 3 C0034/2 = 4
1) open−circuit monitored
Analog output configuration
10
9
8
7
2
1
4
3
6
5
Lenze setting (bold printing in tables)
Ÿ 1 − 3
Ÿ 2 − 4
Ÿ 7 − 9
Ÿ 8 − 10
Analog outputs Possible levels
0 ... +10 V 0 ... +20 mA +4 ... +20 mA
X3.2/62
Analog output 1,
AOUT1 Jumper 1 − 3 3 − 5 3 − 5
Code C0424/1 = 0 C0424/1 = 0 C0424/1 = 1
X3.2/63
Analog output 2,
AOUT2 Jumper 2 − 4 4 − 6 4 − 6
Code C0424/2 = 0 C0424/2 = 0 C0424/2 = 1
