System Health
78 GeoSteer System
Each of the following menu options are explained in detail in this chapter.
• System Health – This provides an overview of the system and displays any issues that may be present.
• Manage Settings – This allows the user to manage log files, databases, or reset the system back to factory defaults.
• Accessories – This allows the user to manage any accessories connected to the GeoSteer.
• Technician – This area is reserved for Service Technicians only. End users do not have access to this area.
• Software Upgrade – This is where new versions of firmware can be loaded onto the GeoSteer.
System Health
The system health screen provides quick diagnostic and status view for the various aspects of the GeoSteer system. If a
problem should occur, this allows the user to take quick glance at the status of the various sensors and see if any obvious
problems appear. If they do, the user can look more closely at the aspect that is not working.

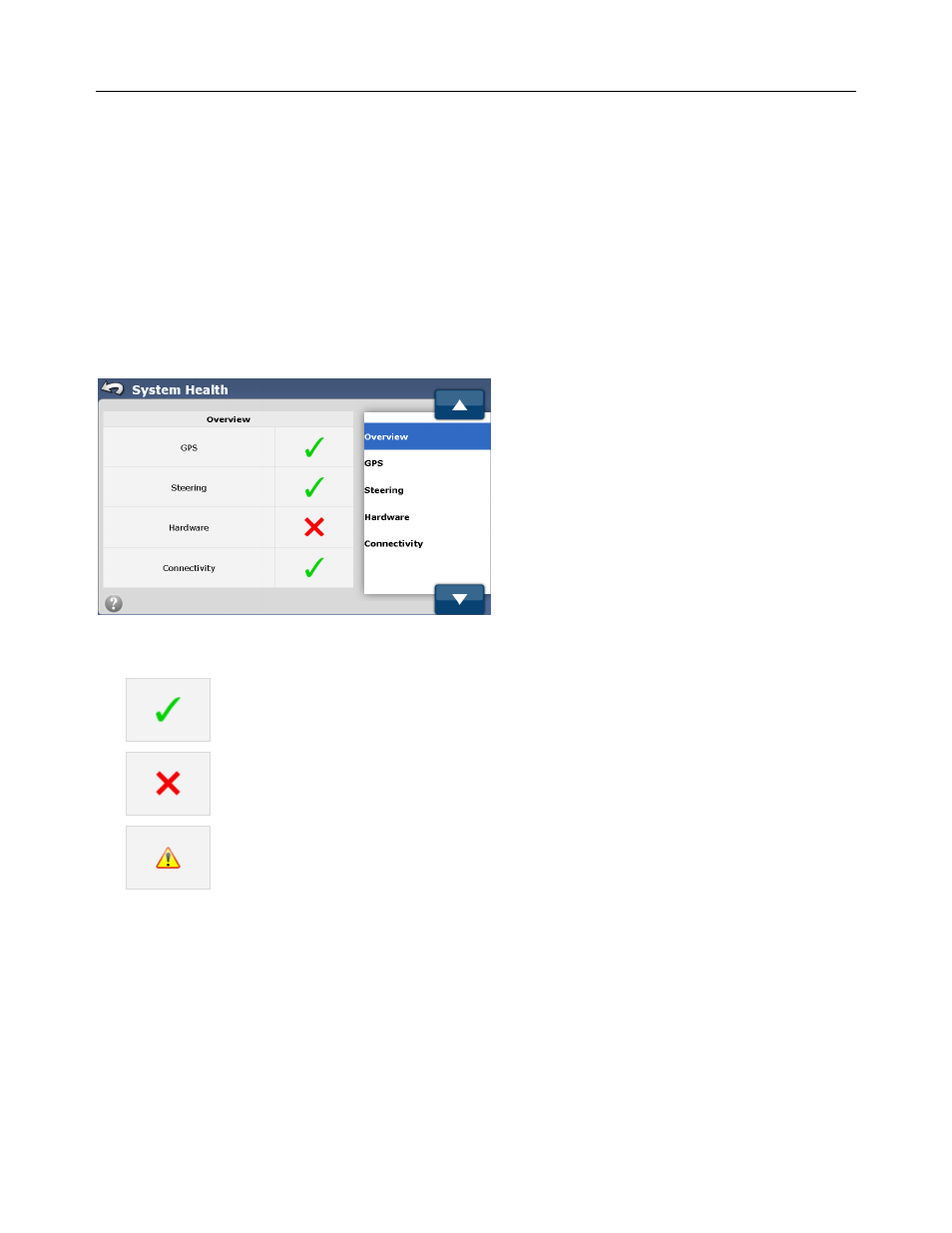

Figure 3-2 System Health
To access the different screens, use the Blue Up/Down Arrows or buttons or directly select the hardware group from the list on
the right. The status for each item is shown by one of three icons:
•
Green Check – This indicates no problems detected.
•
Red X – This indicates there might be a problem or the function or feature code has not been purchased
for this item.
•
Exclamation Point – This indicates that the component is not ready yet.
The various components are broken down into hardware groups. The items inside each group change based on which vehicle
type is active. The groups are as follows:
• Overview – This is an overview of the four other groups and provides a quick glance at which group may be causing the
problem so it can be looked into more closely.
• GPS – This group has to do with all the items that have to do with getting a position. This includes GPS signals and
correction signals.
• Steering – This group has to do with all the items that have to do with interfacing with the steering system.
• Hardware – This group has to do with the hardware error checks. Do the various sensors values detected fall within the
normal or expected ranges.
• Connectivity – This group deals with the connectivity of the GeoSystem to cell networks and remote services.
