Ag Leader GeoSteer Operation Manual User Manual
Page 26
Transferring GeoSteer from Vehicle to Vehicle
12
GeoSteer System
7. Locate the GeoSteer Control Unit on the vehicle.
8. Disconnect the GPS Coax (Blue) TNC Connector from the GeoSteer Control Unit.
9. If the GeoDock has a Cell Modem connection, disconnect the Cell Modem (Orange) SMA Connector from the GeoSteer
Unit.

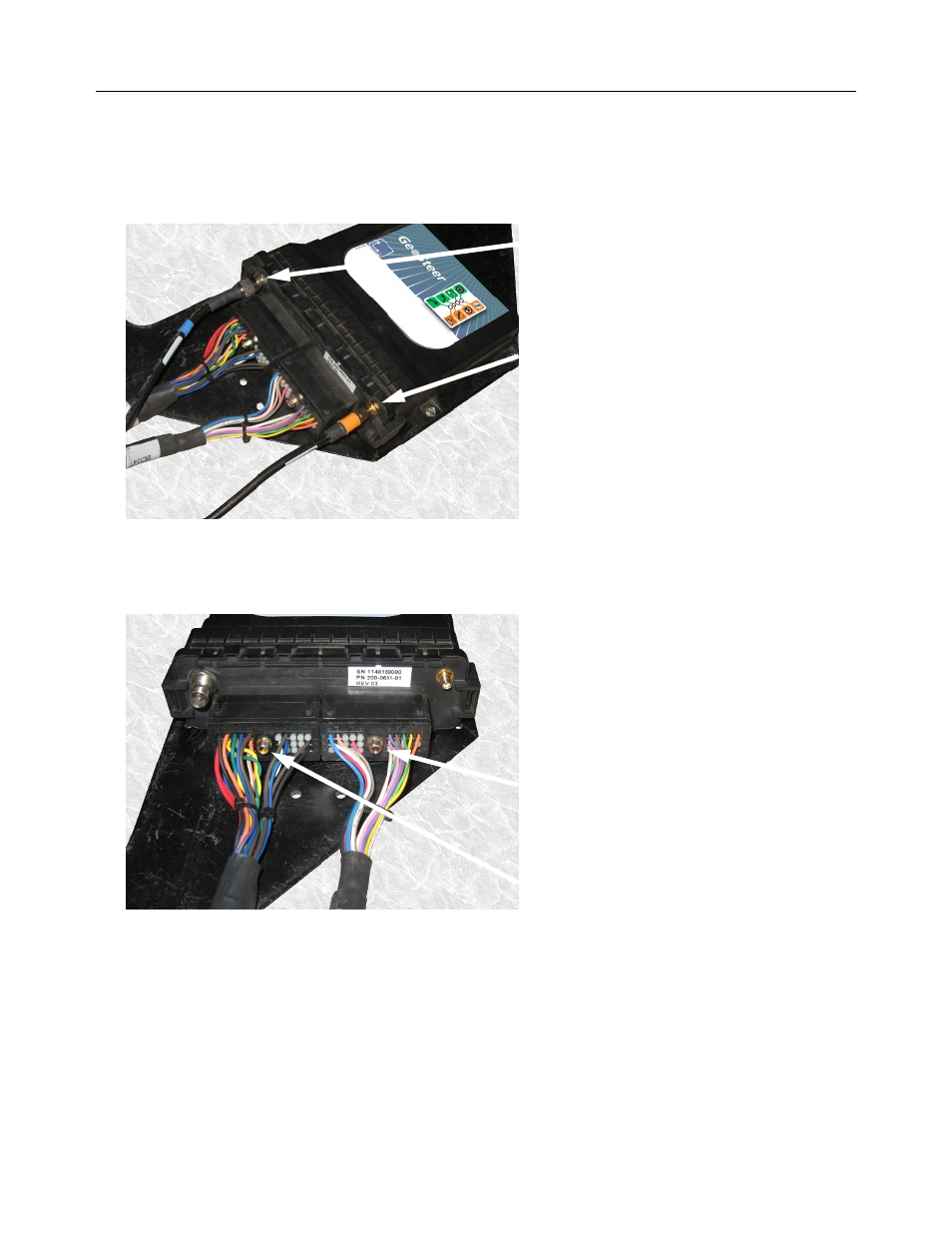

Figure 1-10 Locate GeoSteer Control Unit on Vehicle
10. Use a 1/4 inch nut driver to remove the GeoSteer Main Cable Harness connector from the GeoSteer Control Unit.
11. Use a 1/4 inch nut driver to remove the Vehicle Specific Cable Harness (if present) from the GeoSteer Control Unit.
Figure 1-11 Disconnect GeoSteer Control Unit Harnesses
TNC GPS Coax (Blue) Connector
SMA Cell Modem Coax (Orange) Connector (if
equipped
GeoSteer Main Cable Harness Connector
Vehicle Specific Cable Harness Connector
(if Installed)
