GeoSteer System Installation Overview
2 GeoSteer System
GeoSteer System Installation Overview
This section provides an overview of what is required to complete a GeoSteer system installation. To aid in clarifying the
complete installation, this section also includes the parts and kits that are not included with this vehicle installation kit. A
GeoSteer system installation can be broken down into four sub-categories that need to be ordered to complete the installation.
Three of the sub-categories are mandatory and the fourth is a list of accessories that add additional features and capabilities.
The four parts or sub-categories of a complete GeoSteer system installation are:
1. Display Kit
2. GeoSteer System Kit
3. Vehicle Installation Kit
a. Hydraulic, Steer by Wire, or Assisted Steering Unit
b. CAN Bus
4. Accessory Kit
Each of the sub-categories is graphically shown in the following figure and is identified by a separately shaded area and the
number from the list above. Most installations will be slightly different and required different parts.
Note: Vehicle installation kits will generally include parts from only either sub-category 3a or 3b. The following figure shows
examples of how both 3a and 3b components would be connected to the GeoSteer system for demonstration purposes. Most
installations would not require both.

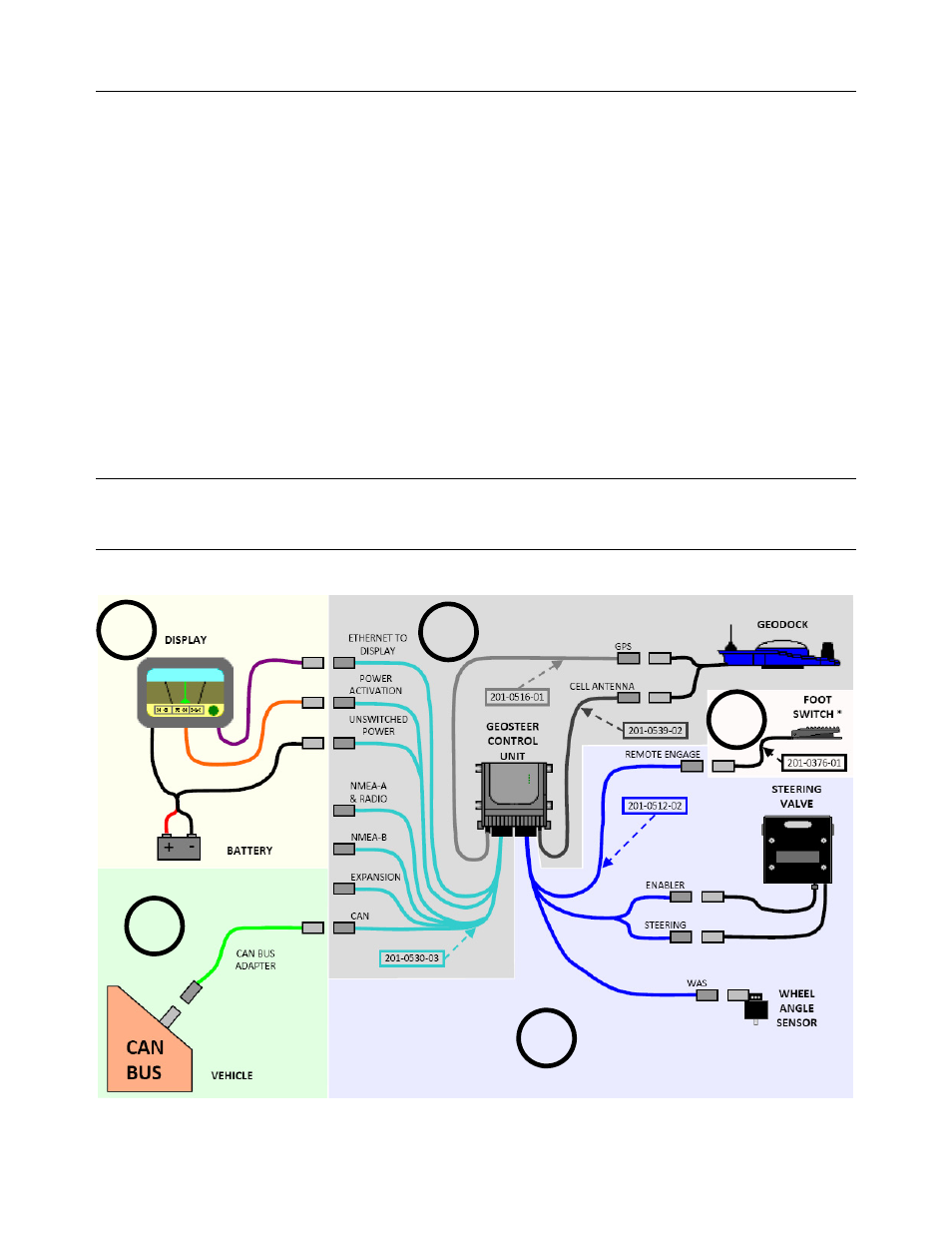

Figure 1-1 Example of GeoSteer Installations Options
1
2
3a
4
3b
