Transferring GeoSteer from Vehicle to Vehicle
Operator’s Manual 11
Removing the GeoSteer System from a Vehicle
1. Locate the GeoDock on the roof of the vehicle.
2. Disconnect the GPS Coax (Blue) by splitting the TNC Connectors shown.
3. If the GeoDock has a Cell Modem Antenna, disconnect the Cell Modem Antenna Coax (Orange) by splitting the TNC
Connectors shown.
4. If the GeoDock has an optional GS-900, GS-450, or GS-OmniSTAR Demodulator, disconnect the 12-pin Power/Data
Connector shown.

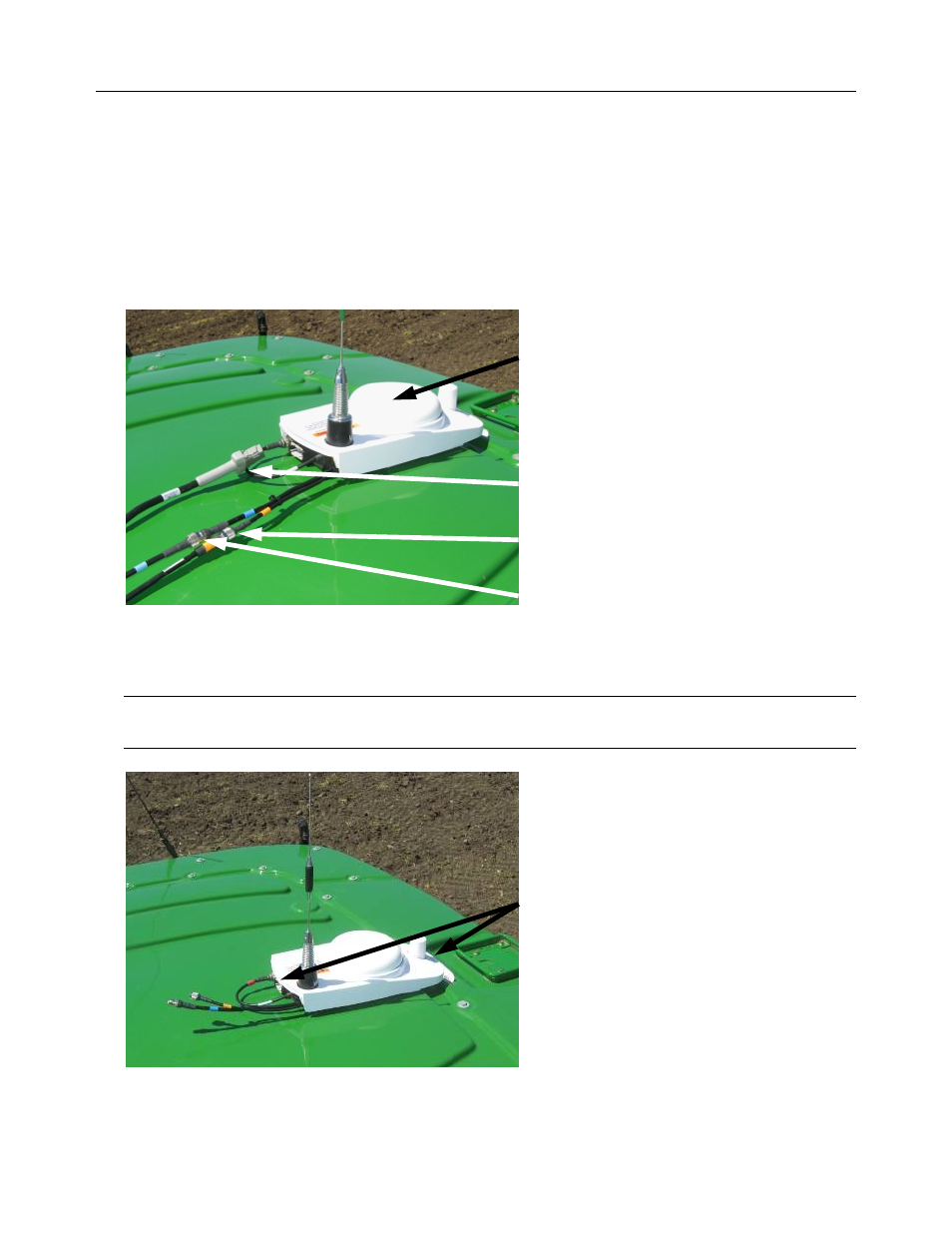

Figure 1-9 Locate GeoDock and GeoDock Connections
5. Secure the cable connections left on the cab of the vehicle and protect them from dirt/moisture.
6. Carefully pry the magnetically attached GeoDock from the GeoDock Mounting Bracket.
Note: Only pry up on the GeoDock from the metal lip on the front or back of the GeoDock. Never pry the GeoDock using
the plastic cover or by pulling on the coax cables coming out of the back. This can damage the unit.
GeoDock
GPS Coax Connector (Blue)
Cell Modem Connector (Orange) (if Applicable)
Optional GS-900, GS-450, or GS-OmniSTAR
Demodulator Power/Data Connector
Pry up from these Points Only
