Transferring GeoSteer from Vehicle to Vehicle
Operator’s Manual 13
12. Remove the four 8-32 x 1/2 Hex Screws using a 1/4 inch nut driver. This releases the GeoSteer Control Unit from the
vehicle mounting bracket so it can be moved to another vehicle.

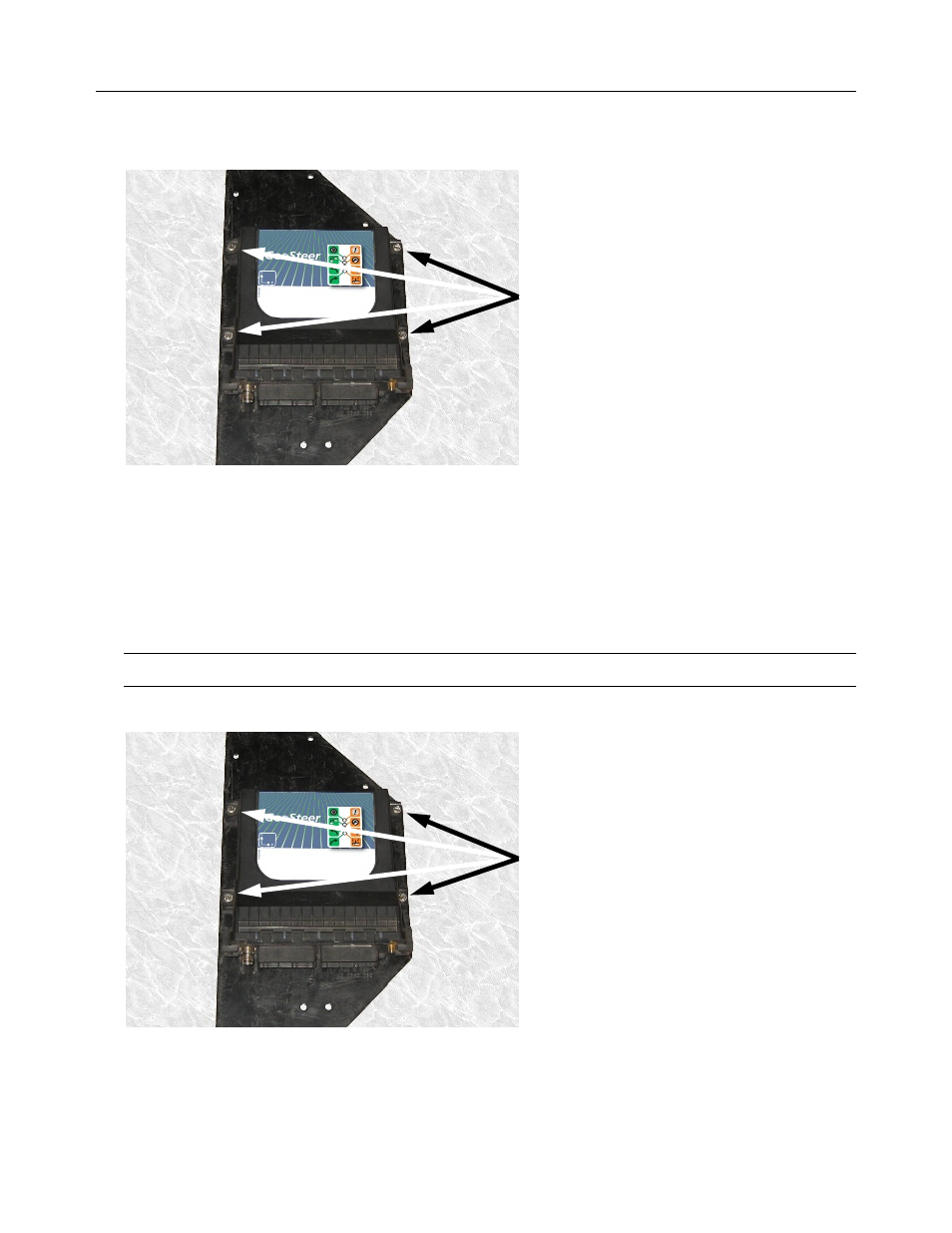

Figure 1-12 Remove Screws Holding GeoSteer Control Unit
13. Remove the Display from the cab using the instructions provided in the Display Operator’s Manual.
Installing the GeoSteer System on to Vehicle
1. Install the Display in the cab using the instructions provided in the Display Operator’s Manual.
2. Attach the GeoSteer Control Unit to the mounting bracket with four 8-32 x 1/2 Hex Screws. Tighten the screws using a
1/4 inch nut driver.
Note: Do not over tighten the screws.
Figure 1-13 Attach GeoSteer Control Unit with Screws
Remove the Four Screws
Attach GeoSteer Control Unit with Four Screws
