Steering Components
72 GeoSteer System

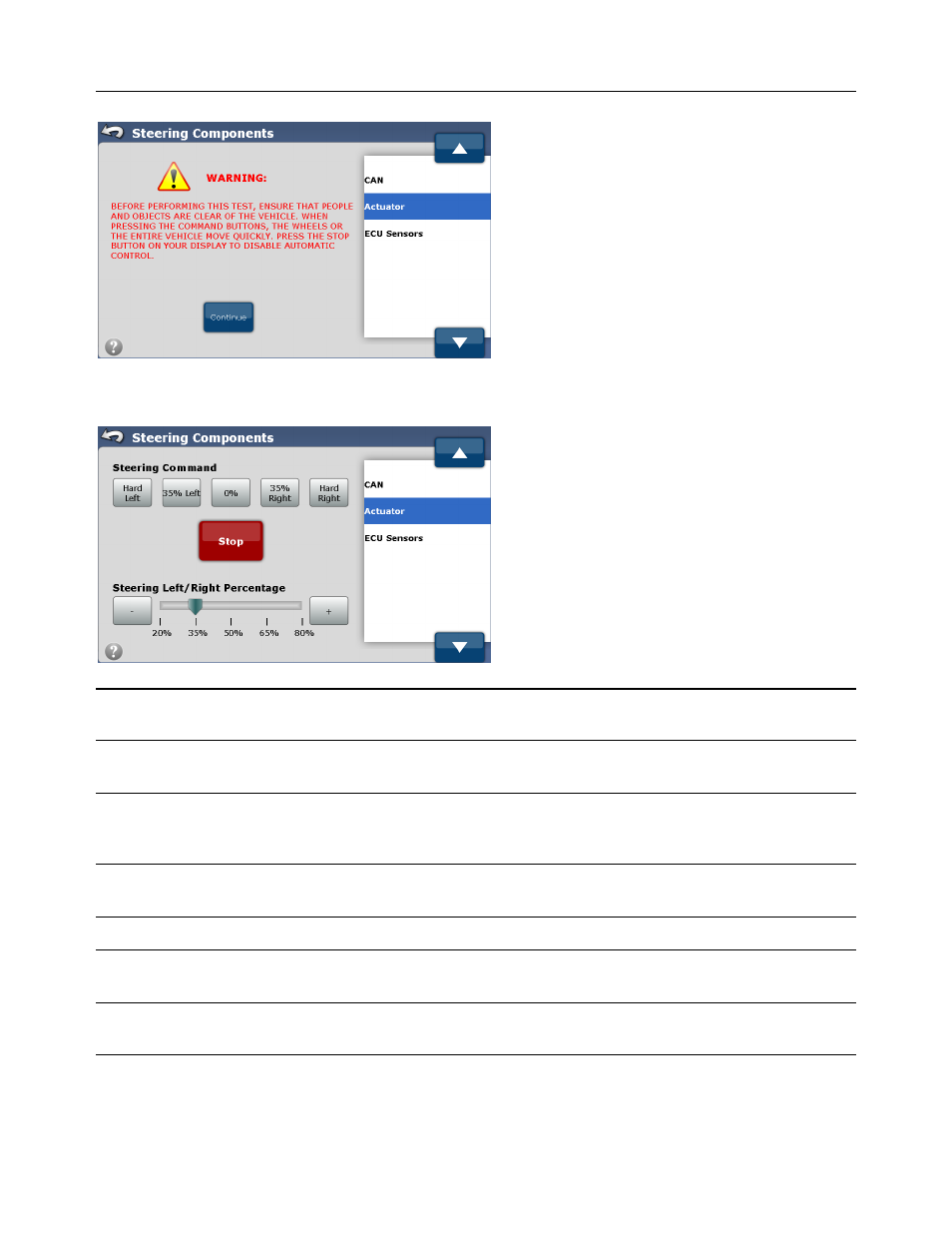

Figure 2-80 Actuator
Read the WARNING message and press the Continue button when all bystanders are away from the vehicle.
Figure 2-81 Hydraulic Valve Control Screen
Note: Before performing this test, ensure people and objects are clear of the vehicle. When pressing the Steering Command
buttons, the wheels or vehicle will move quickly from side to side. Press the STOP button to halt the vehicle movement.
Note: For the Actuator screen, the Steering Command buttons control the direction the steering axle will turn to not the speed
of turn. When a button is pressed, the steering axle will turn the percentage of curvature and stop there. The Steering
Command does not change the speed at which the steering axle will change, only the direction.
Note: Some vehicles will need to be moving for the system to be able to send commands.
Note: Some CAN Bus / ISO Controlled vehicles require the user to use the vehicle’s factory supplied engage switch to start the
test process. If this is require, the test screen will notify the user to use factory switch instead of the screen.
