Steering Components
Operator’s Manual 67

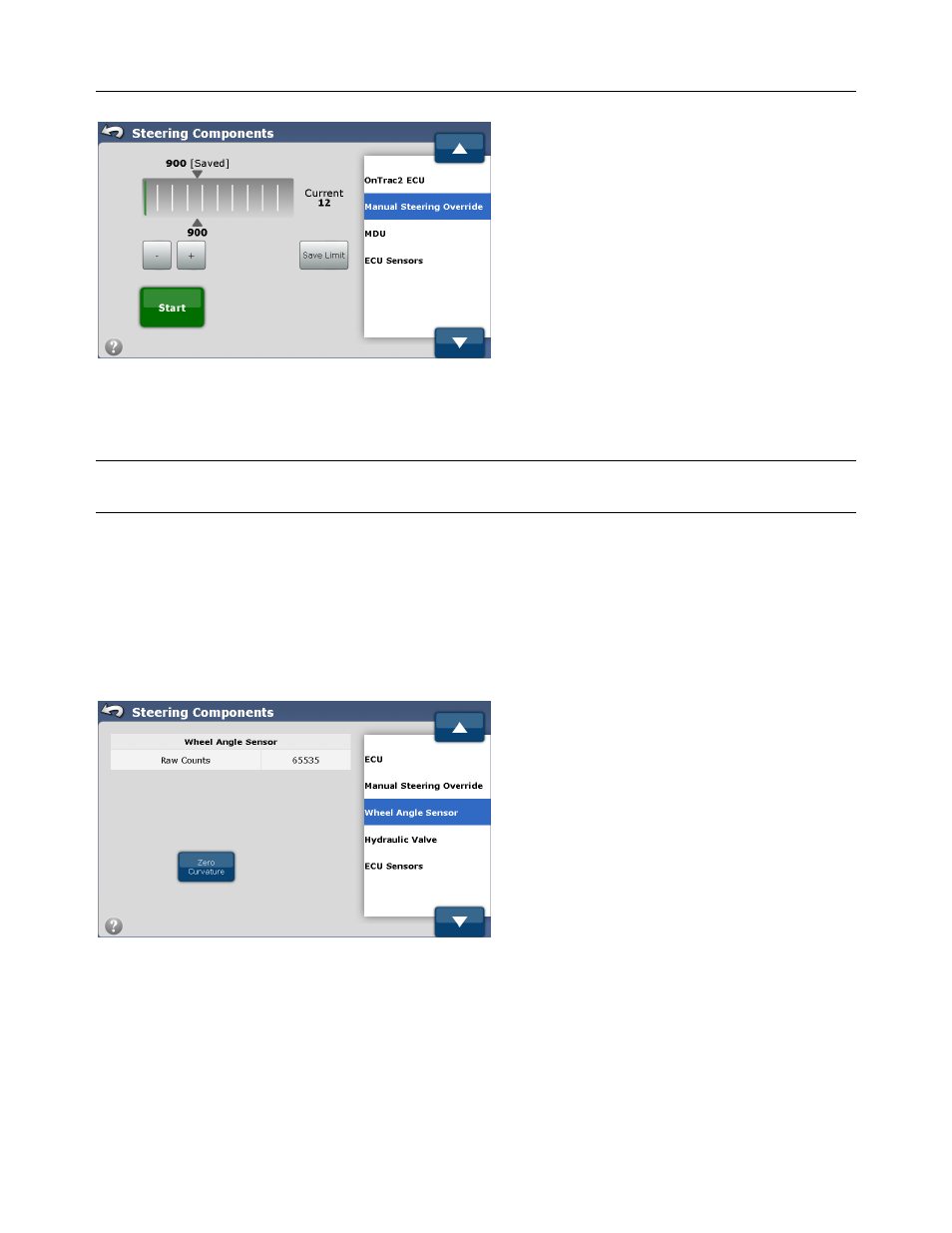

Figure 2-71 Manual Steering Override (Mechanical Steering Device)
The Manual Steering Override screens allow the user to adjust the amount of manual steering force required before the
AutoSteer system will disengage. This screen is displayed for setting the pressure transducer on Steering Valve type installs
and for setting the maximum current on Mechanical Steering Devices.
Note: It is critically important for the Manual Steering Override to be functioning and set to the proper level to allow the user
to disengage AutoSteer manually. Never operate an AutoSteer system without this feature working or set properly.
These screens were described in detail in the Setup Wizard section of this manual. For more information understanding and
using this screen please refer to the following sections:
• Pressure Transducer Installations – Please refer to Page 42 for more information.
• Mechanical Steering Installation (OnTrac2+) – Please refer to Page 44 for more information.
Wheel Angle Sensor
Figure 2-72 Wheel Angle Sensor
The Wheel Angle Sensor screen shows the sensor reading coming from the Angle Sensor on the vehicle. The Wheel Angle
Sensor sends wheel angle position signals to the system in order to ensure precise AutoSteering operations.
The Wheel Angle Sensor screen provides the following information and tools:
