Auto Calibrate
54 GeoSteer System

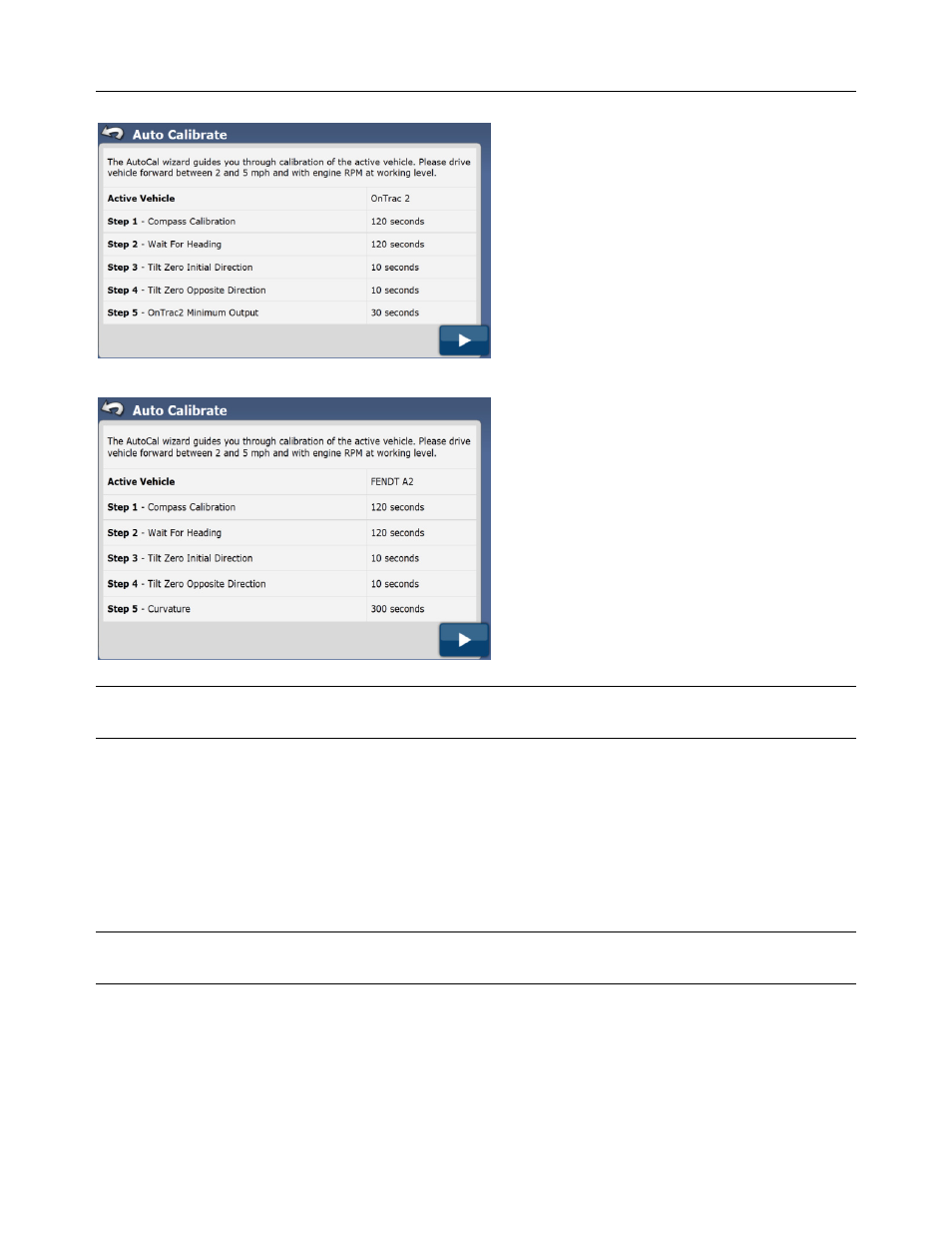

Figure 2-50 Auto Calibrate Initial Screen (Mechanical Steering Unit / OnTrac2+)
Figure 2-51 Auto Calibrate Initial Screen (CAN Bus / ISO)
Note: All of the steps of the routine must be completed and the changes saved before the GeoSteer will allow the system to
AutoSteer the vehicle.
Common Calibration Steps
All three Auto Calibrate wizard processes will start with the same Common Calibration Steps. They are as follows:
• Compass Calibration – Calibrates the electronic compass.
• Wait For Heading – Step to verify that the compass and heading calculation are equal.
• Tilt Zero Initial Direction – Initial step for calibrating the terrain compensation sensors.
• Tilt Zero Opposite Direction – Second step for calibrating the terrain compensation sensors.
Note: The Auto Calibrate procedure requires a significant amount of space. Find an adequate location before starting the Auto
Calibration process.
To start the Auto Calibrate process, press the Blue Right Arrow button in the Auto Calibrate screen.
