NMEA Out
126 GeoSteer System
Refer to your 3 rd party device to determine what versions should be sent. In most cases the Current Version should be
safe to send. The Legacy Version is only used on very old 3 rd party devices that were not capable of using RTK generated
data.
Table 4-2 GPS Quality Value Sent for GGA Message Depending on Version
GPS Quality Current Version Legacy Version
0 Invalid Position Invalid Position
1 SPS Position SPS Position
2 DGPS Position
Fixed Position (DGPS, OmniSTAR or
RTK)
3 N/A N/A
4 RTK or OmniSTAR Fixed Position N/A
5 RTK or OmniSTAR Float Position N/A
5. Press the Green Check button to save the settings or press the Red X to cancel.
Port A Configuration

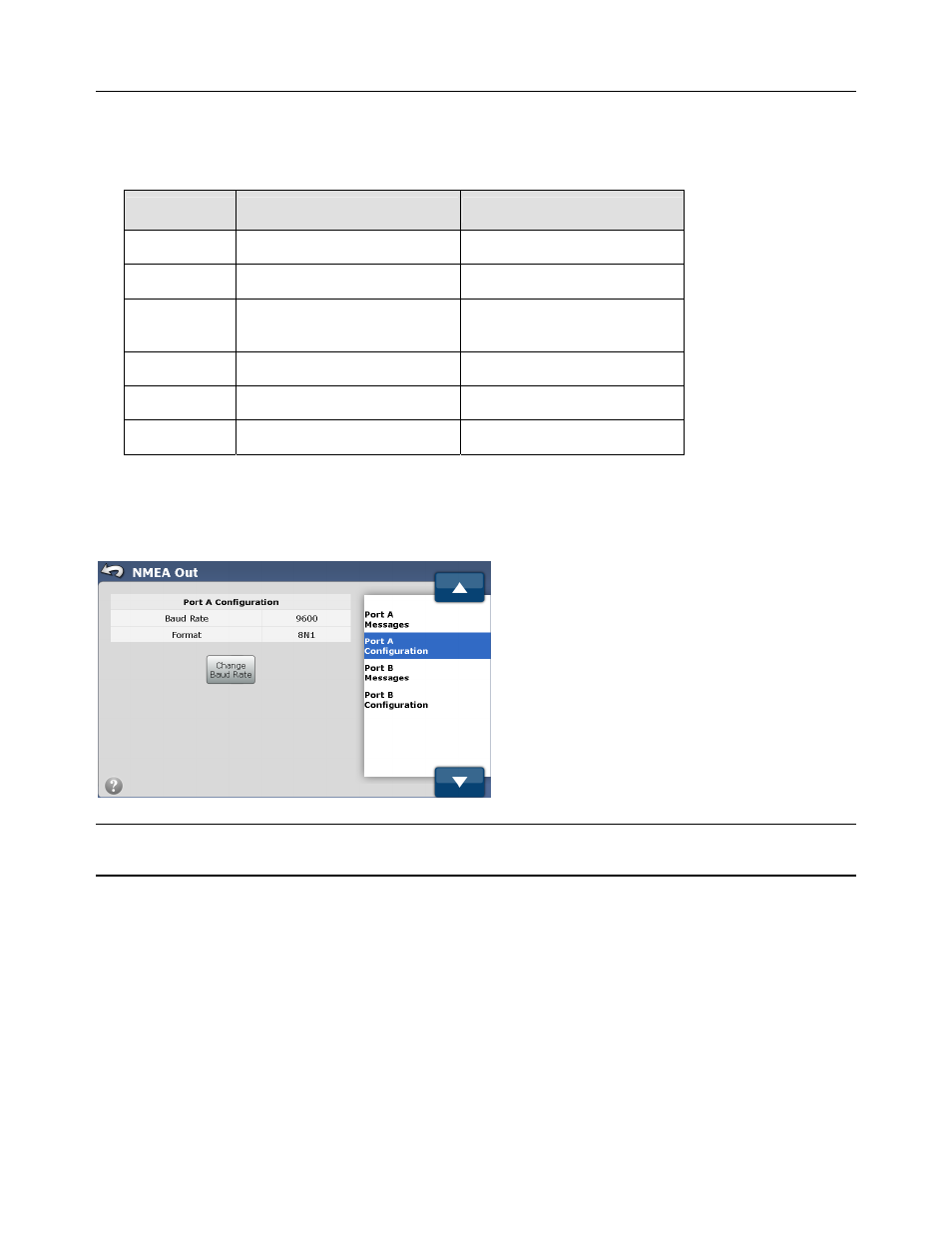

Figure 4-52 Port A Configuration
Note: Refer to your precision agriculture controller’s documentation to determine the correct Baud Rate and Format that is
required to communicate. An incorrect setting may cause your controller to malfunction or not work at all.
The Port A Configuration screen allows the user to configure the baud rate of the serial port.
GeoSteer supports the following Baud Rates:
• 4800
• 9600
• 19200
• 38400
• 57600
• 115200
