RTK
94 GeoSteer System

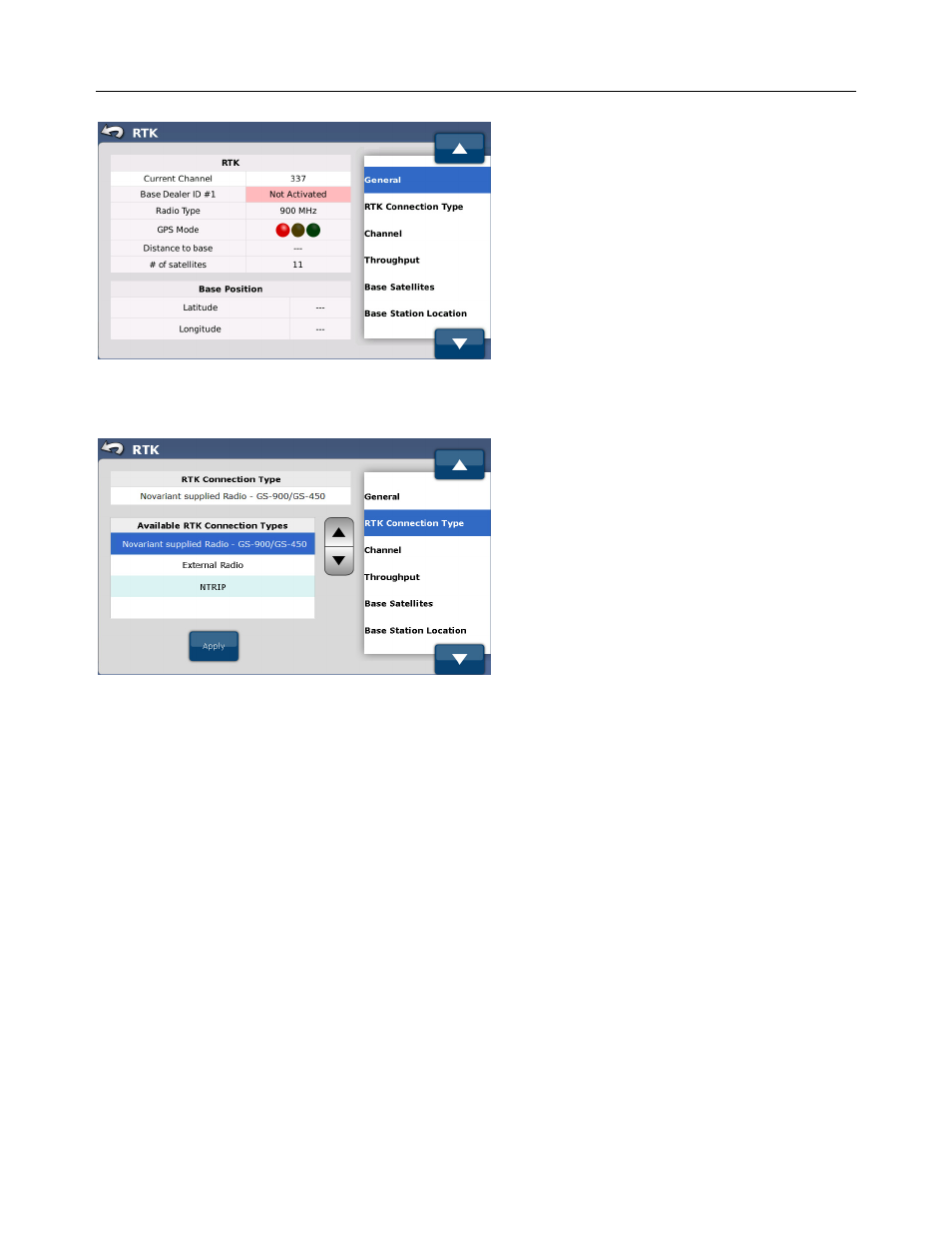

Figure 4-3 Base Dealer ID # not Activated
RTK Connection Type
Figure 4-4 RTK Connection Type
The RTK Connection Type screen displays the current source of the RTK correction data. This enables the user to select and
change the RTK connection type if they have multiple sources available to them. RTK Connection Types available are:
• Novariant supplied Radio – GS-900/GS-450 – RTK corrections received are via a GS-900 or GS-450 radio kit installed
in the GeoDock and supplied by Novariant.
• External Radio – RTK corrections received via 3 rd party radio externally connected. This allows users to connect 3rd party
radio modem, cell modem, or other devices that can provide a RTK data stream.
• NTRIP – RTK corrections provided by the internal cell modem. This option is not used if the NTRIP is coming from an
external cell modem connected to the external data port.
Change RTK Connection Type
1. From the GPS tab, press the RTK button and then highlight RTK Connection Type from the list on the left.
2. Use the Gray Up/Down Arrow buttons to scroll through the available options shown in the Available RTK Connection
Types list and select an RTK connection type desired.
3. Press the Apply button to save it.
