External Radio
138 GeoSteer System
Change Baud Rate
Note: Changing the Baud Rate for Port A on the External Radio screen also changes the Baud Rate for the NMEA Out output.
Port A can be used simultaneously for the External Radio In and NMEA Out, however both functions must use the same Baud
Rate.
To change the configuration of Port Configuration, follow the procedure below:
1. From the Connections screen, press the External Radio button.
2. Press the Change Baud Rate button.
3. A Warning message will appear. Press the Green Check button to accept it or the Red X button to cancel.

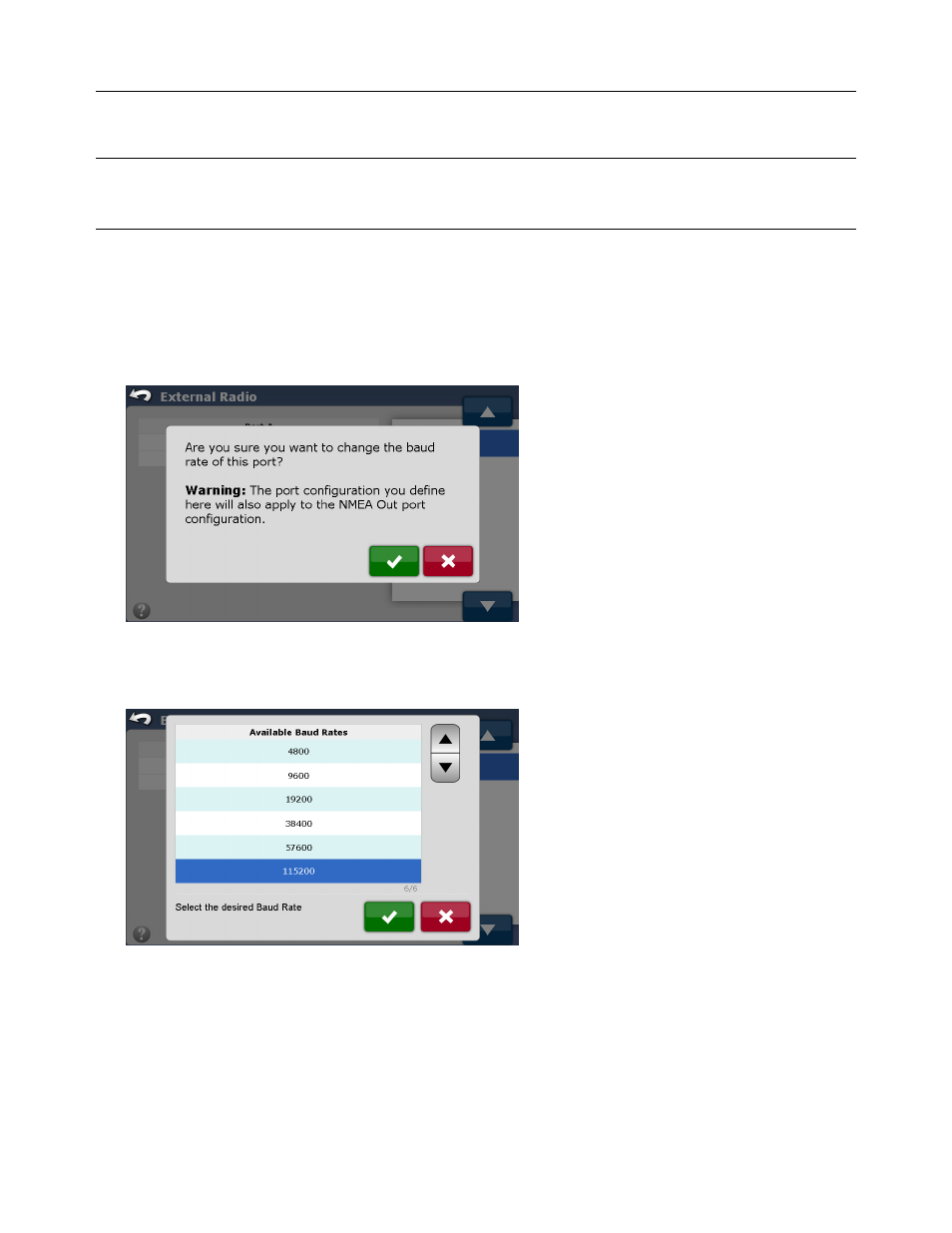

Figure 5-15 Port A Warning Message
4. Use the Gray Up/Down Arrow buttons or directly select the desired Baud Rate. Press the Green Check button to accept
changes or the press the Red X button to cancel.
Figure 5-16 Port Available Baud Rates
