Setup Wizard
34 GeoSteer System

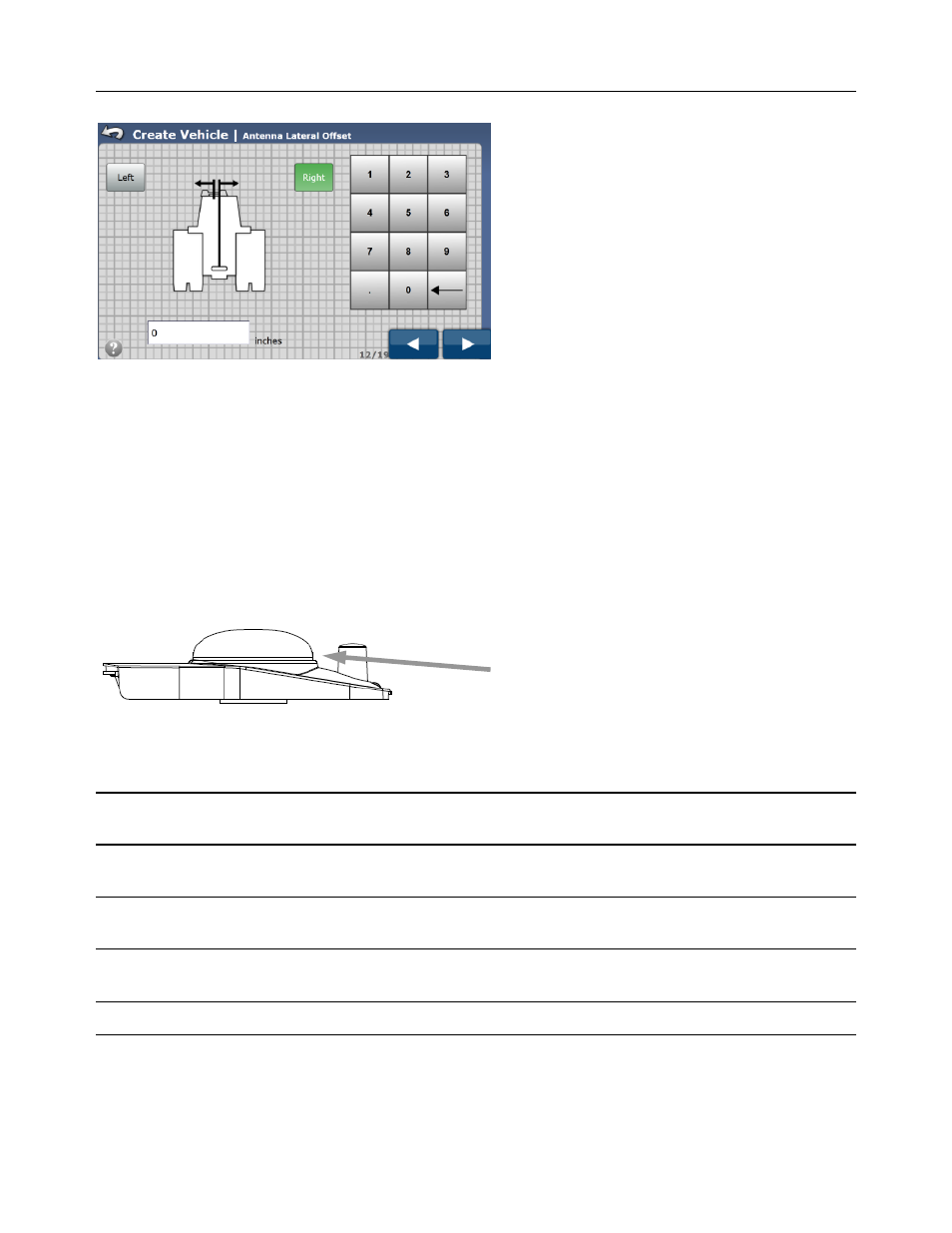

Figure 2-17 Antenna Lateral Offset
For best results, the GeoDock should be mounted along the centerline of the vehicle; however it can be mounted to the left or
right of the centerline if necessary. Press the button that indicates which side of the centerline the GPS antenna is mounted. If
the offset is 0.0, it does not matter which one is selected.
• Left – This indicates that the GPS is to the left of the centerline.
• Right – This indicates that the GPS is to the right of the centerline.
After the Antenna Lateral Offset has been entered, press the Blue Right Arrow button to continue to the next step.
Antenna Height
The Antenna Height is the distance from the ground to GPS antenna on the GeoDock as shown in Figure 2-18.
Figure 2-18 Measuring Point on the GeoDock GPS Antenna
Take a tape measure and measure the distance from the ground to the GPS antenna on the GeoDock. Enter that value into the
Antenna Height window.
Note: Be sure to verify that the measurement entered is in the same units that the display is expecting. The expected unit of
measurement is shown to the right of the data input box.
Note: The units of measure shown in the AutoSteer Setup pages are configured on the Display side and passed to the GeoSteer
menus. Refer to your Display Operator’s Manual for instructions on how to set the units of measure.
Note: This measurement should be accurate to within 2 inches (5.0 cm).
Measure to this Point
