Ag Leader GeoSteer Operation Manual - Manual (Page 134)

NTRIP
120 GeoSteer System
General (After Profile Created)

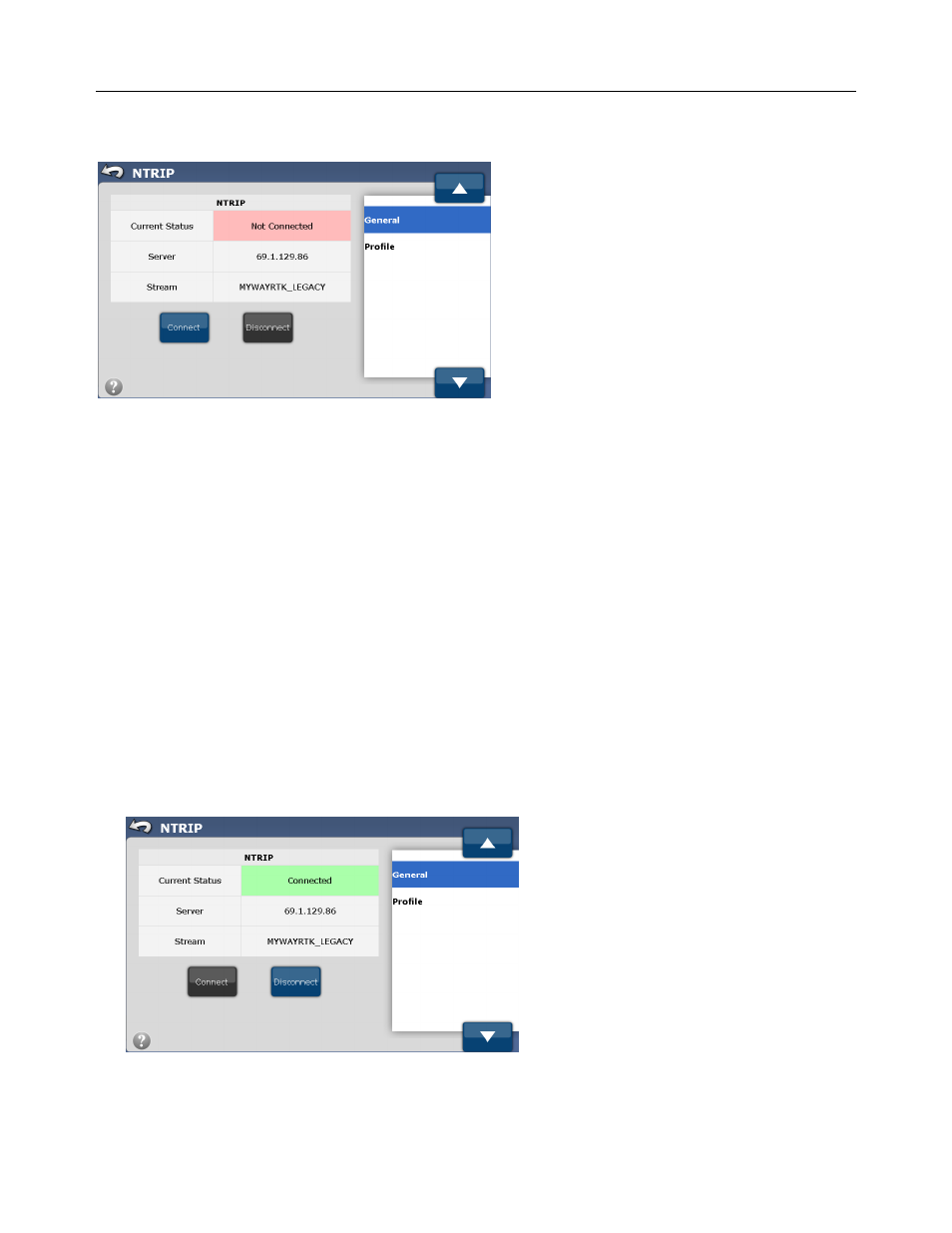

Figure 4-43 NTRIP General
After the profile has been created, the General tab will remember the last profile used. The user can then jump straight to this
screen to Connect and Disconnect.
Connect
Follow the procedure below to Connect to the NTRIP server.
1. From the GPS menu, press the NTRIP button.
2. Press the Blue Up/Down buttons or directly select General from the list on the right.
3. Press the Connect button shown in Figure 4-43.
Disconnect
Follow the procedure below to Disconnect to the NTRIP server.
1. From the GPS menu, press the NTRIP button.
2. Press the Blue Up/Down buttons or directly select General from the list on the right.
3. Press the Disconnect button.
Figure 4-44 NTRIP Connected
