Setup Wizard
Operator’s Manual 31
Naming the Vehicle
The Vehicle Name screen allows the user to enter a custom name for the vehicle. This name is independent of the name
provided on the Display side of the vehicle setup. You cannot use the same name twice in GeoSteer system. Use the on screen
keyboard to type in the name of the vehicle.

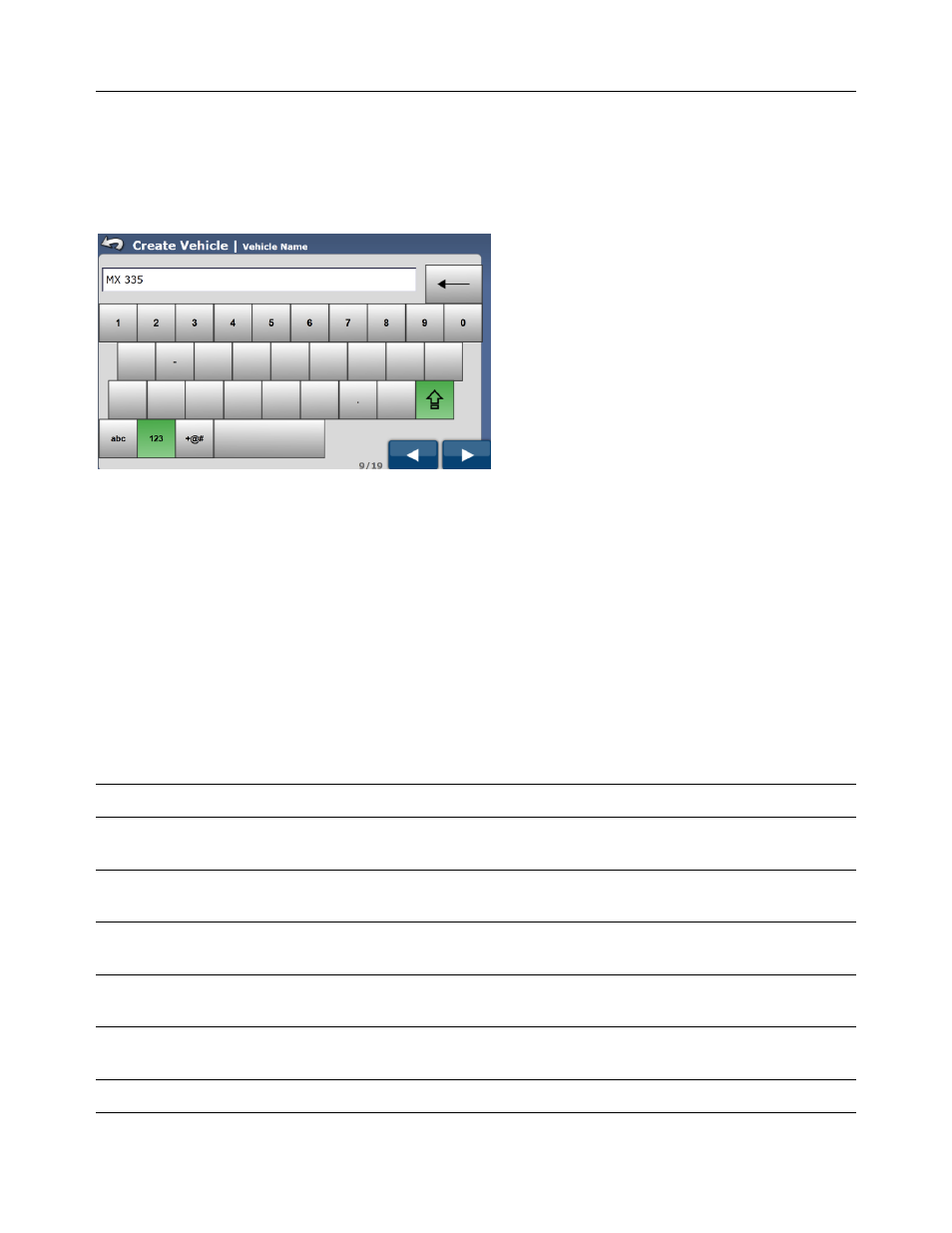

Figure 2-14 Vehicle Name
Special keys on the keyboard:
• BACK ARROW – This is the delete key.
• UP ARROW – This is the shift key. Use this to type in capital letters.
• abc (ABC) – This activates and shows the letters on the keyboard.
• 123 – This activates and shows the numbers on the keyboard.
• +@# - This activates and shows the special characters that can be used to name the vehicle.
After the Vehicle Name has been entered, press the Blue Right Arrow button to continue to the next step
Wheel Base
This measurement is only required for vehicles with two axles, the GeoSteer system needs to know the distance between the
front and rear axle. This distance is the vehicle’s Wheel Base. Use a tape measure to measure the distance between the two
axles and then enter that value into the Display.
Note: Always measure both sides of the vehicle and use the average of the two measurements.
Note: The units of measure shown in the AutoSteer Setup pages are configured on the Display side and passed to the GeoSteer
menus. Refer to your Display Operator’s Manual for instructions on how to set the units of measure.
Note: Be sure to verify that the measurement entered is in the same units that the display is expecting. The expected unit of
measurement is shown to the right of the data input box.
Note: This measurement should be accurate to within 2 inch (5.0 cm).
