Setup Wizard
Operator’s Manual 35

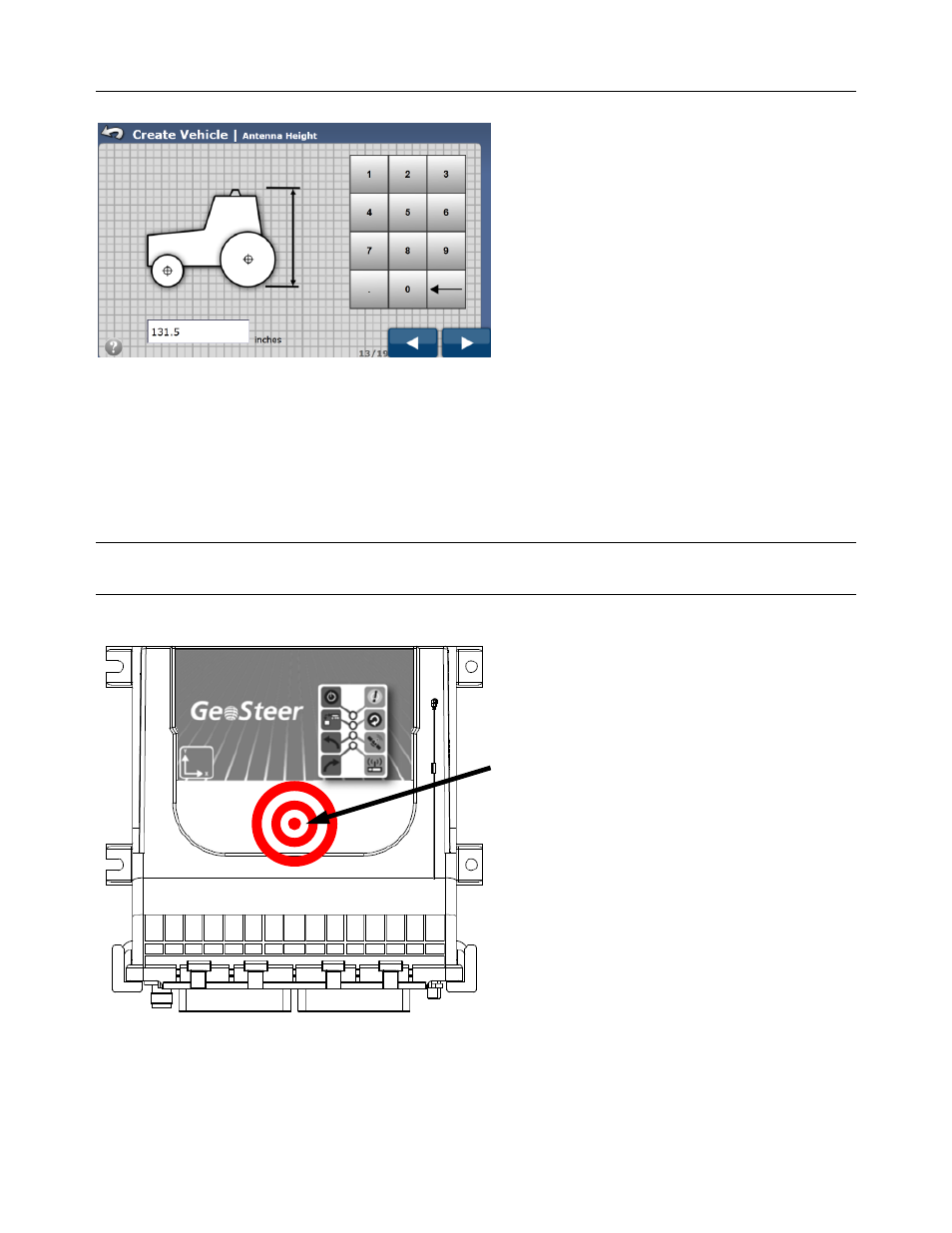

Figure 2-19 Antenna Height
After the Antenna Height has been entered, press the Blue Right Arrow button to continue to the next step.
GeoSteer Fore/Aft
Just like the GPS antenna, the location of the GeoSteer Control Unit must be entered into the system. These measurements are
important for GeoSteer to achieve its rated performance. All measurements entered into the GeoSteer system should be
measured to the center point of the GeoSteer Control Unit box at the top surface.
Note: The bull’s eye shown in Figure 2-20 is not on the actual GeoSteer Control Unit label. It is shown here only to show the
approximate location of the measurement point on the GeoSteer Control Unit.
Figure 2-20 Measurement Point on GeoSteer Control Unit
Measure to this Point
