EXTERNAL CONTROL

99

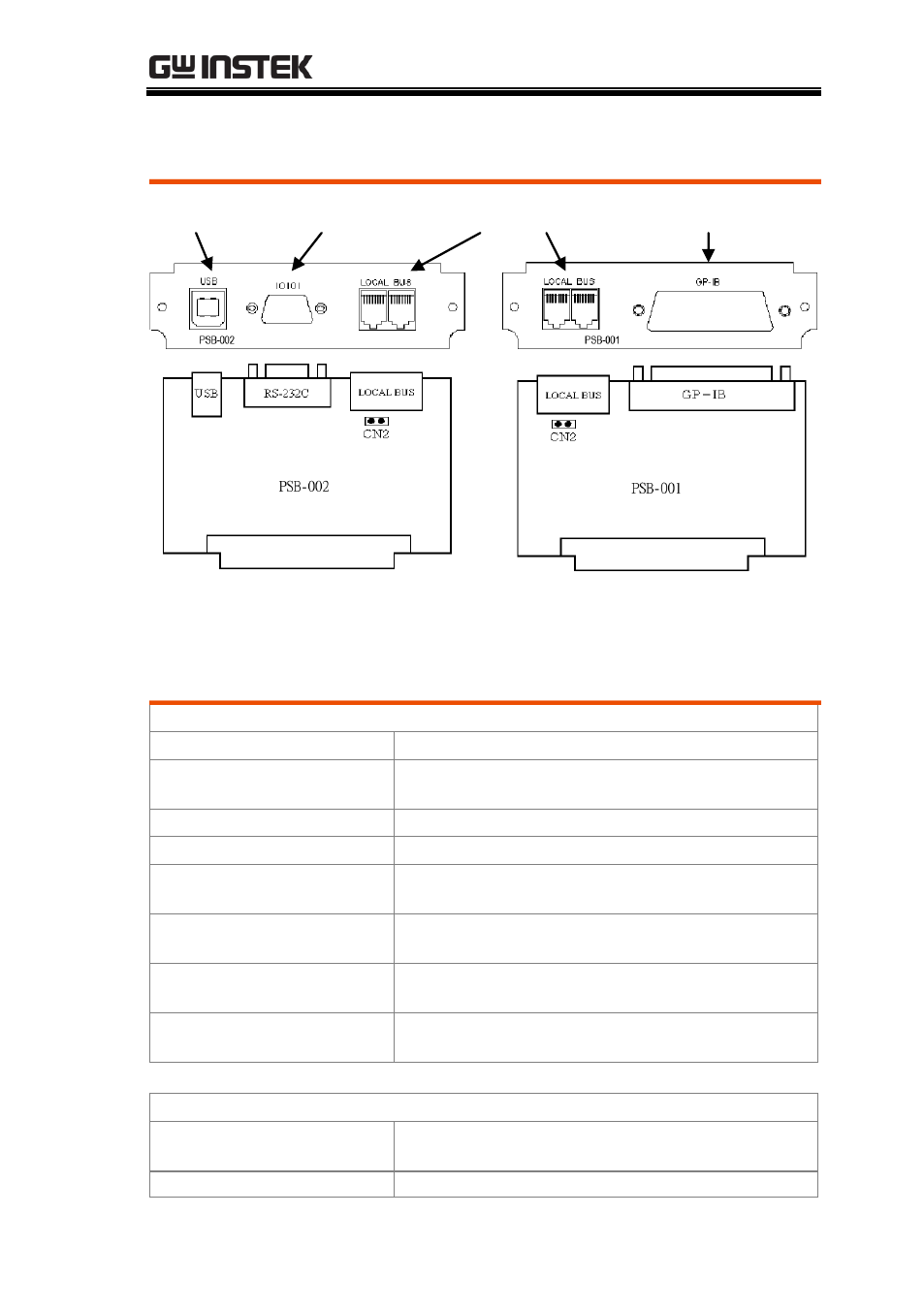

Interface Connectors

USB connector RS-232 connecter Local bus connecter GP-IB connector

Fig. Diagram of the Interface Boards

PSB-001 Specifications (optional)

GPIB
Specifications

Conforms to IEEE488-1978.

Interface functions

SH1, AH1, T6, L4, SR1, RL1, PR0, DC1, DT0, C0,
& E1

Address setting

1 to 30

Delimiter

LF, EOI, & LF + EOI

Listener function

Output conditions of controlled power supply
units may be set.

Talker function

Output conditions and setting conditions of
controlled power supply units may be detected.

Service request function

Occurrence of alarms and errors and presence
or absence of responses are reported.

Q’ty of connectable units

Maximum of 14 units are connectable with a
single GP-IB card.

Local bus
Specifications

Conforms to RS-485 Standards. Proprietary
protocol.

Max. cable length

10 [m]
