OPERATION

45

The CH1 and CH2 keys are independent of each
other, and it is possible to turn the output on
through channel 1 or B by pressing the CH1 or

CH2 key to select the corresponding channel.

However, the output is disabled unless the

OUTPUT key is lit.

Note

For the PSB-2400L2, if neither the CH1 nor CH2 key
is lit, the OUTPUT key will not go on even if it is
pressed. (No output is provided.)

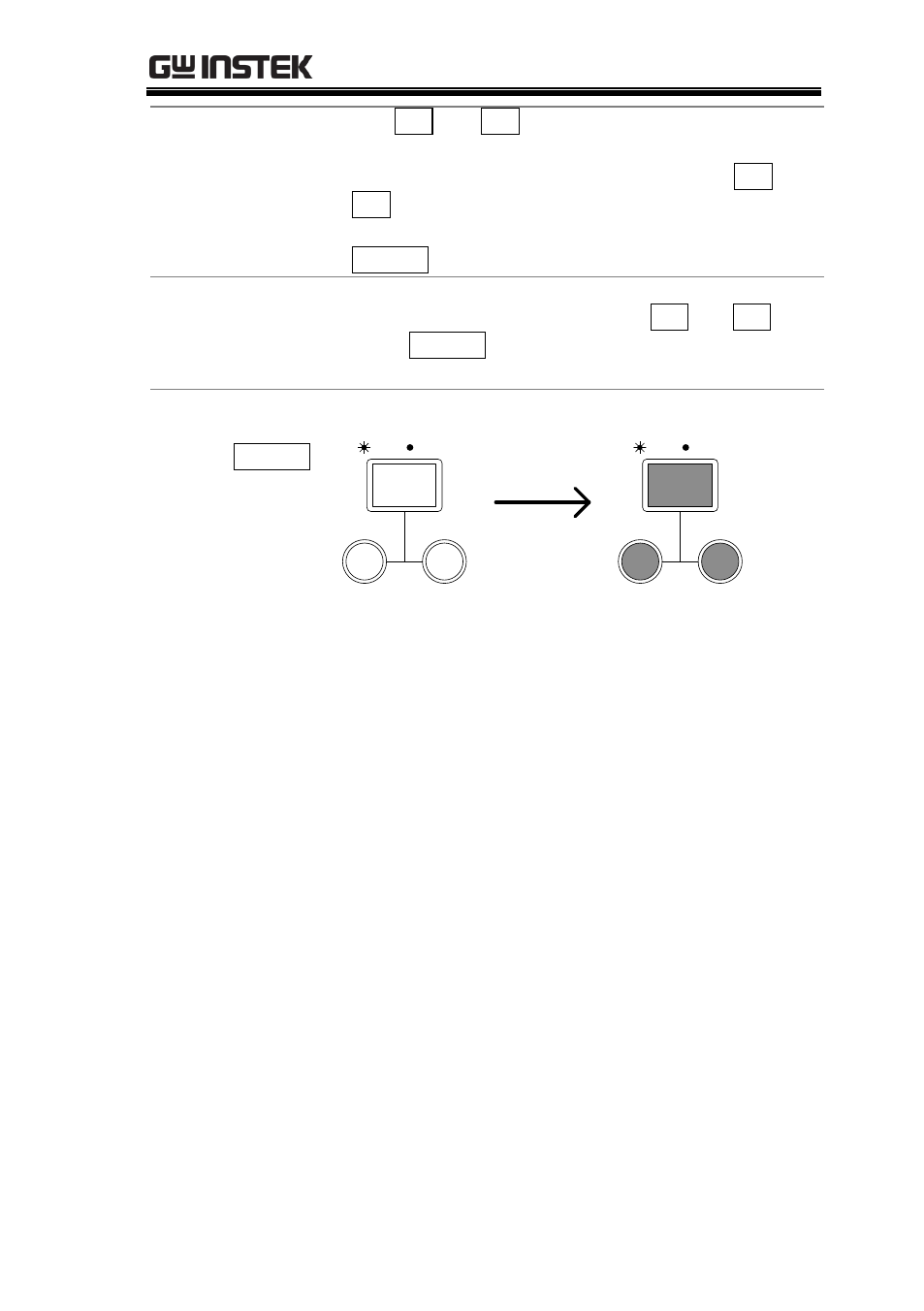

Fig. Output by
Pressing OUTPUT
key

OUTPUT

CH 2

CH 1

ON / OFF

OUTPUT

CH 2

CH 1

ON / OFF

Press CH1 and CH2 to

make them light up. (The

output is still off)

Press Output to output.
