OPERATION

69

Tracking Function

Menu Item: 09 (PSB-L2)

Introduction

The tracking function is available on the dual
channel model (PSB-2400L2) only. When the
tracking function is turned on, the output of
channel 2 is made to match the output of channel
1, thus channel 2 can be said to ―track‖ channel 1.
This effectively means that the values of both
channels change simultaneously.

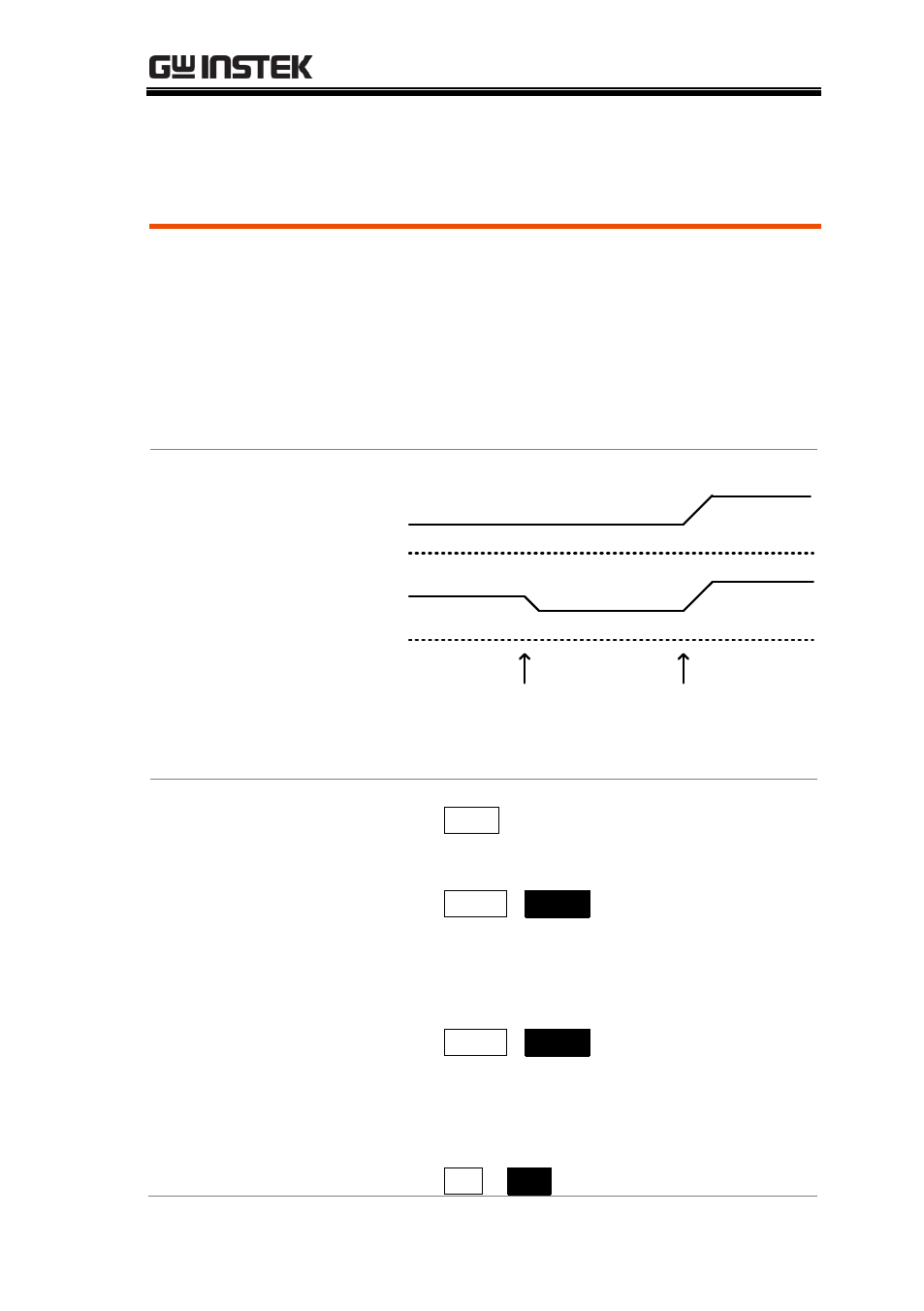

Fig. Tracking
Operation

Channel 1

Channel 2

5V

10V

20V

20V

5V

5V

Tracking function

ON

Changing set values
with encoder or through
communication

Procedure

1. Press the MENU key until the menu number

―09‖ is displayed.

2. Press the ENTER /

CHECK

key to enter the

tracking function setting mode. Select On or
Off with the encoder wheel. By default the
tracking function is turned off.

3. Press the ENTER /

CHECK

key to confirm the

setting.
Both the CH1 and CH2 LEDs on the right of the
channel LED turn on.

4. Press the ESC /

DISP

key to quit the setting
