OPERATION

77

NOTE

The internal impedance of the voltage and current
monitoring circuits are approximately 1kΩ.
Be careful not draw over 1mA through the
monitoring circuits.

Procedure

1. Voltage monitor

CH1: Pins 17 and 16 (COM), CH2: Pins 8 and 7
(COM)

2. Current monitor

CH1: Pins 18 and 16 (COM), CH2: Pins 9 and 7
(COM)

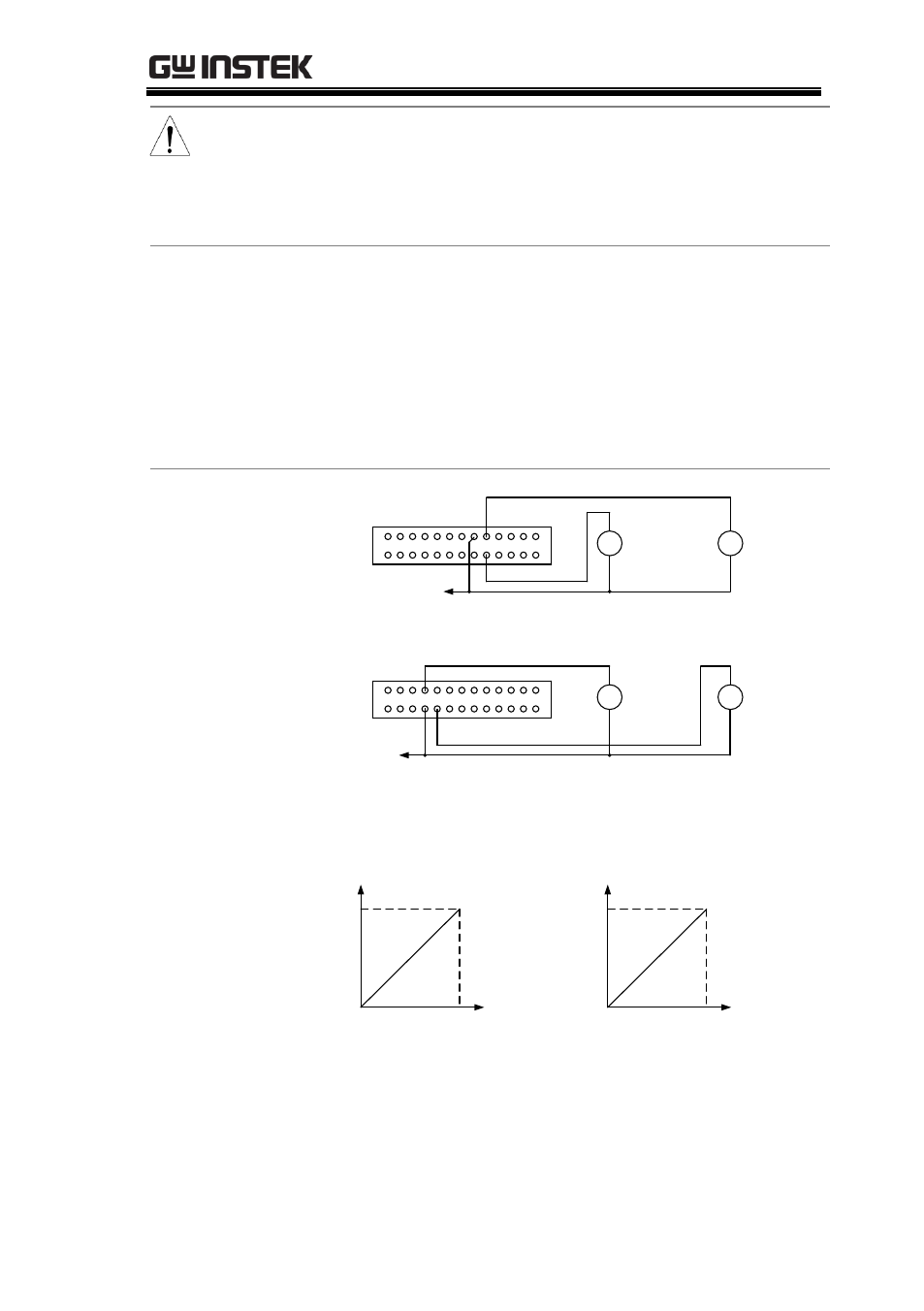

Fig. Monitor
Output Pins

M

M

1

2

25

26

CH1

Voltage

monitor

CH1

Current

monitor

EXT CONT (J3)

M

M

1

2

25

26

CH2

Voltage

monitor

CH2

Current

monitor

EXT CONT (J3)

Negative output
terminal of CH1

Negative output
terminal of CH2

Output voltage

FS

10V

Monitor

voltage

Output current

FS

10V

Monitor

voltage
