OTHER FUNCTIONS
93
Power Extension using PSB-2800LS (Parallel
Connection Only)
Description The PSB-2800LS (booster unit) is especially
designed to boost the power capacity when used in
parallel. It is possible to increase the output up to a
maximum of 3200W when used in parallel with a
PSB-2800L as the master unit).
NOTE
Note that the PSB-2800LS cannot be used for series
operation.

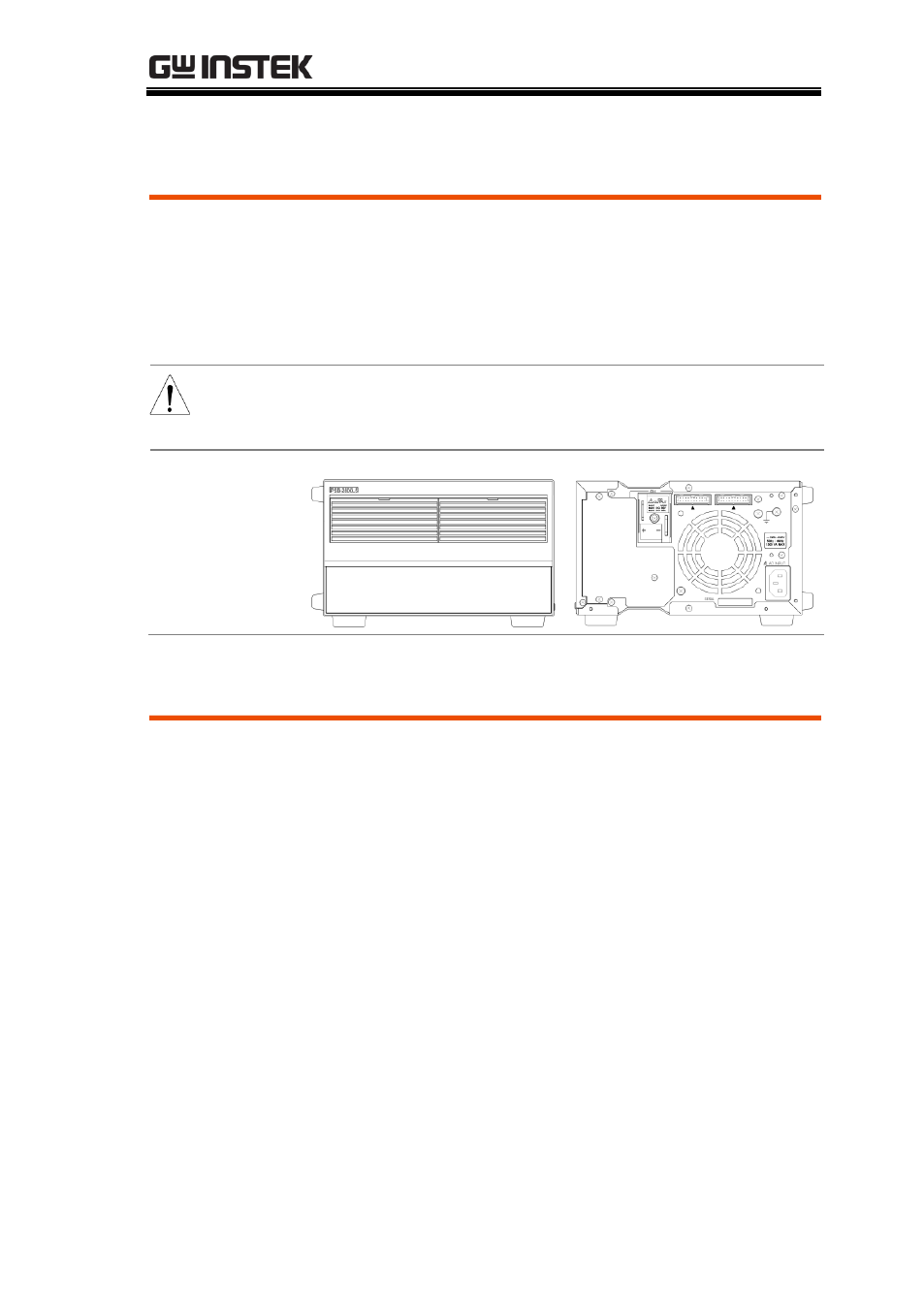

Fig. Front and
Rear panel of
PSB-2800LS
How to use the PSB-2800LS
Description The PSB-2800LS is not equipped with a power
switch. The PSB-2800LS relies on a master unit to
turn it on when it is connected in parallel. As soon
as the master unit is turned on any connected
PSB-2800LS power supply is also turned on (see
page 70 for details).
In other words, the PSB-2800LS cannot be used
alone. So before using the PSB-2800LS, check to
make sure that the AC power cable, signal cables
and load wires are connected properly. Improper
wiring or settings may cause problems.
