PSB-2000 Series User Manual

82

Alarm Function using External Contacts

Introduction

An external contact switch can force the PSB-L
into the alarm state. When in the alarm state, the
output is turned off and ―HARD‖ is displayed on
the LED display. Remove the input power or
turn off the power from the POWER switch to
cancel the alarm state.

External Control Pins to activate the alarm state:

CH1: Pins 20 and 22 (COM)
CH2: Pins 11 and 13 (COM)

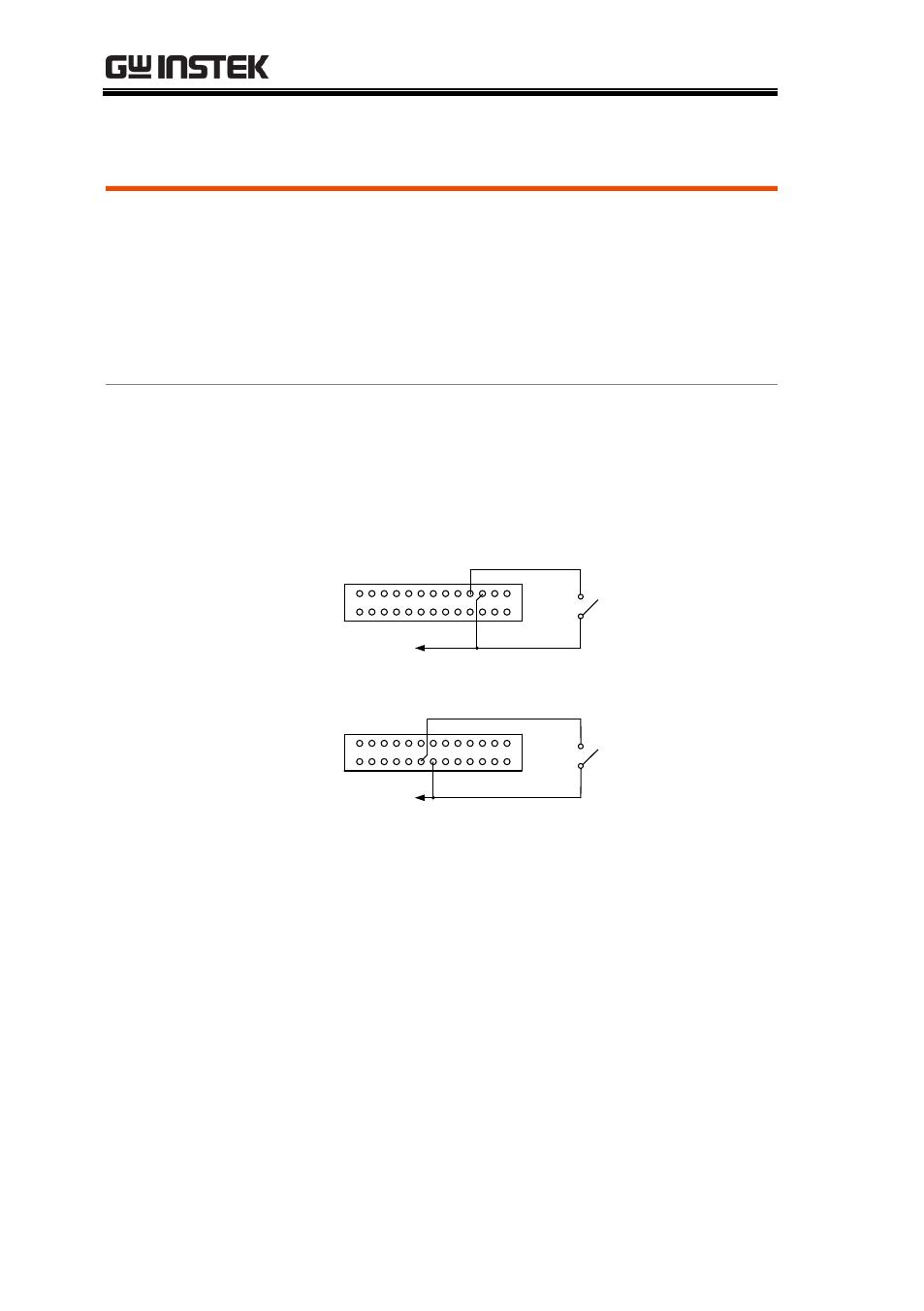

Fig. External Alarm
Input Pins

1

2

25

26

EXT CONT (J3)

Negative output

terminal of CH1

1

2

25

26

EXT CONT (J3)

Negative output

terminal of CH2

CH2

External

alarm input

CH1

External

alarm input
