PSB-2000 Series User Manual

46

How to Display the Setting Value When the Output is On

Output methods

The power supply unit displays the output value
when the output is on. Press the ENTER/

CHECK

key when the output is on to switch the display to
the setting value.

Procedure

Every press of the ENTER/

CHECK

key toggles the

display between the setting mode and output
mode.

When the output is on and the mode has been
switched to the setting mode, the A or V key
blinks, indicating that the setting value is being
displayed.

Note

The setting value is changed if the encoder wheel

is rotated in the setting mode. The output value is
changed if the encoder is rotated in the output
mode. Do not touch the encoder to check the
setting values.



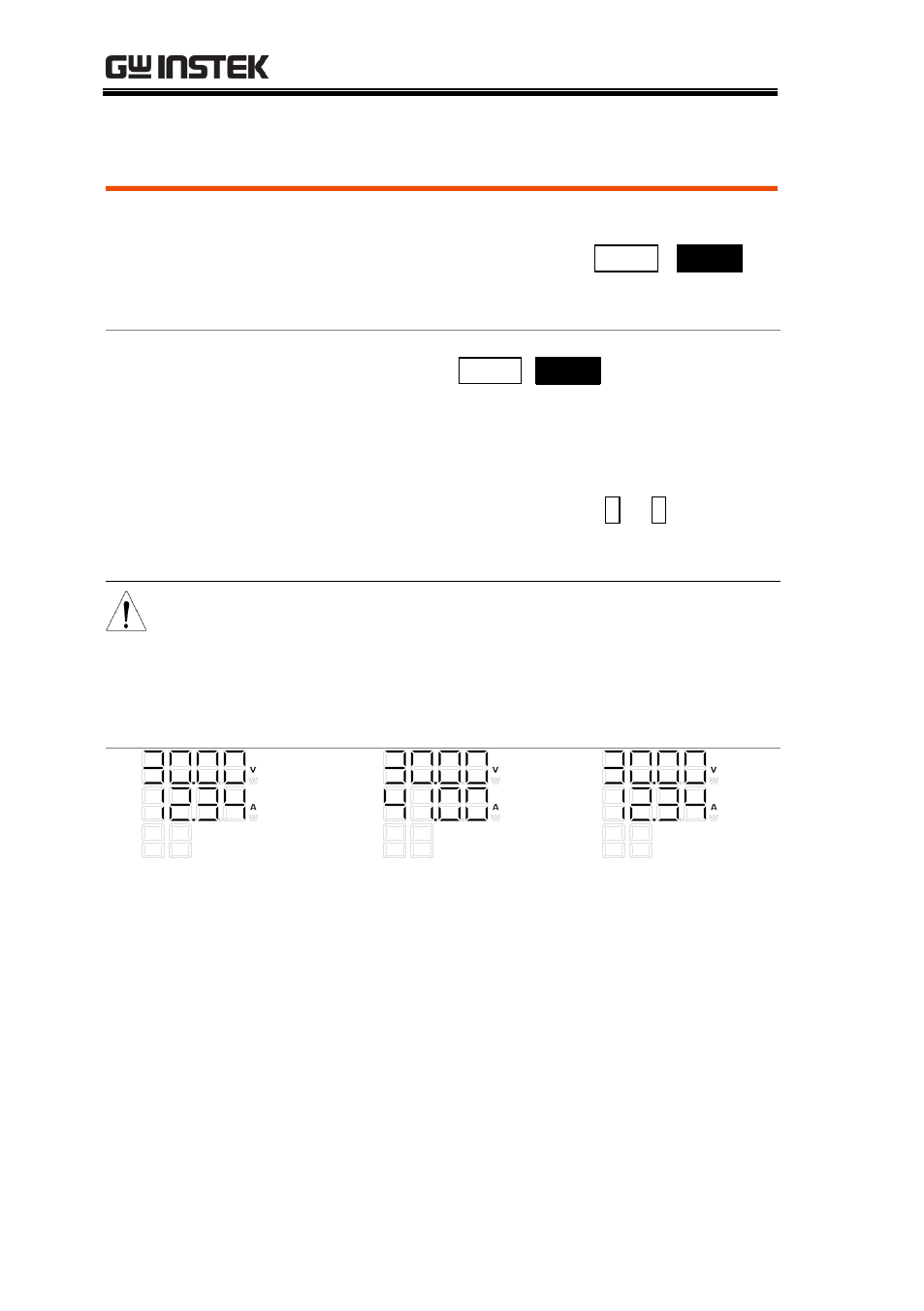

Output value

Press CHECK:

Set value

Press CHECK:
Output value
