PSB-2000 Series User Manual

66

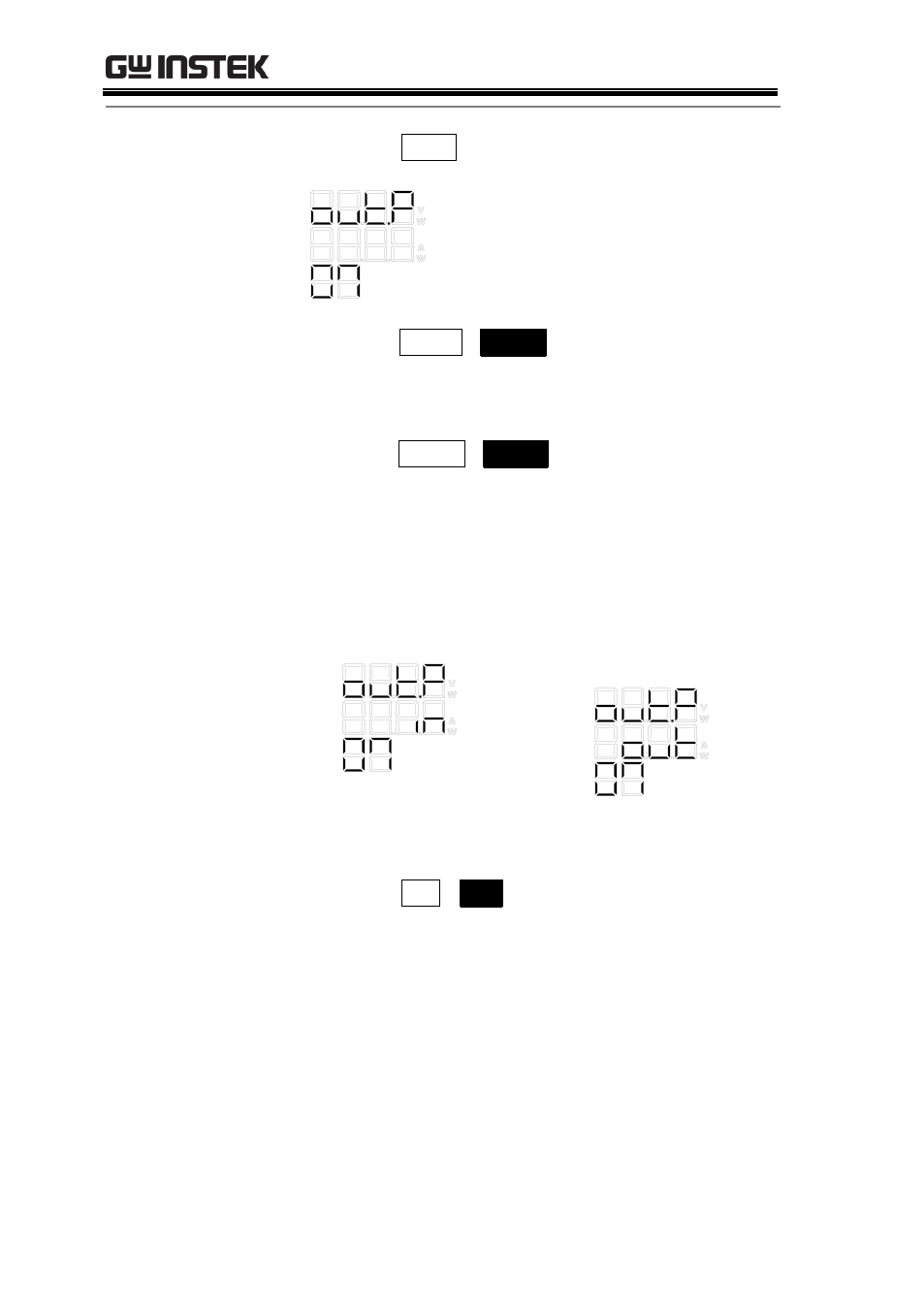

Procedure

1. Press the MENU key until menu number

―07‖(PSB-L) or ―06‖(PSB-H) is displayed.

2. Press the ENTER /

CHECK

key to enter the

external output On/Off control setting mode.

3. Select On or Off with the encoder wheel, and

press the ENTER /

CHECK

key again to confirm

the settings. The external output on/off setting
is now complete. The output control modes are
shown below:
IN= The output is controlled with the OUTPUT
key.
OUT= The output is controlled with external
contacts.

OUTPUT key control

External Control

4. Press the ESC/

DISP

key to quit the settings and

return to normal operation.
