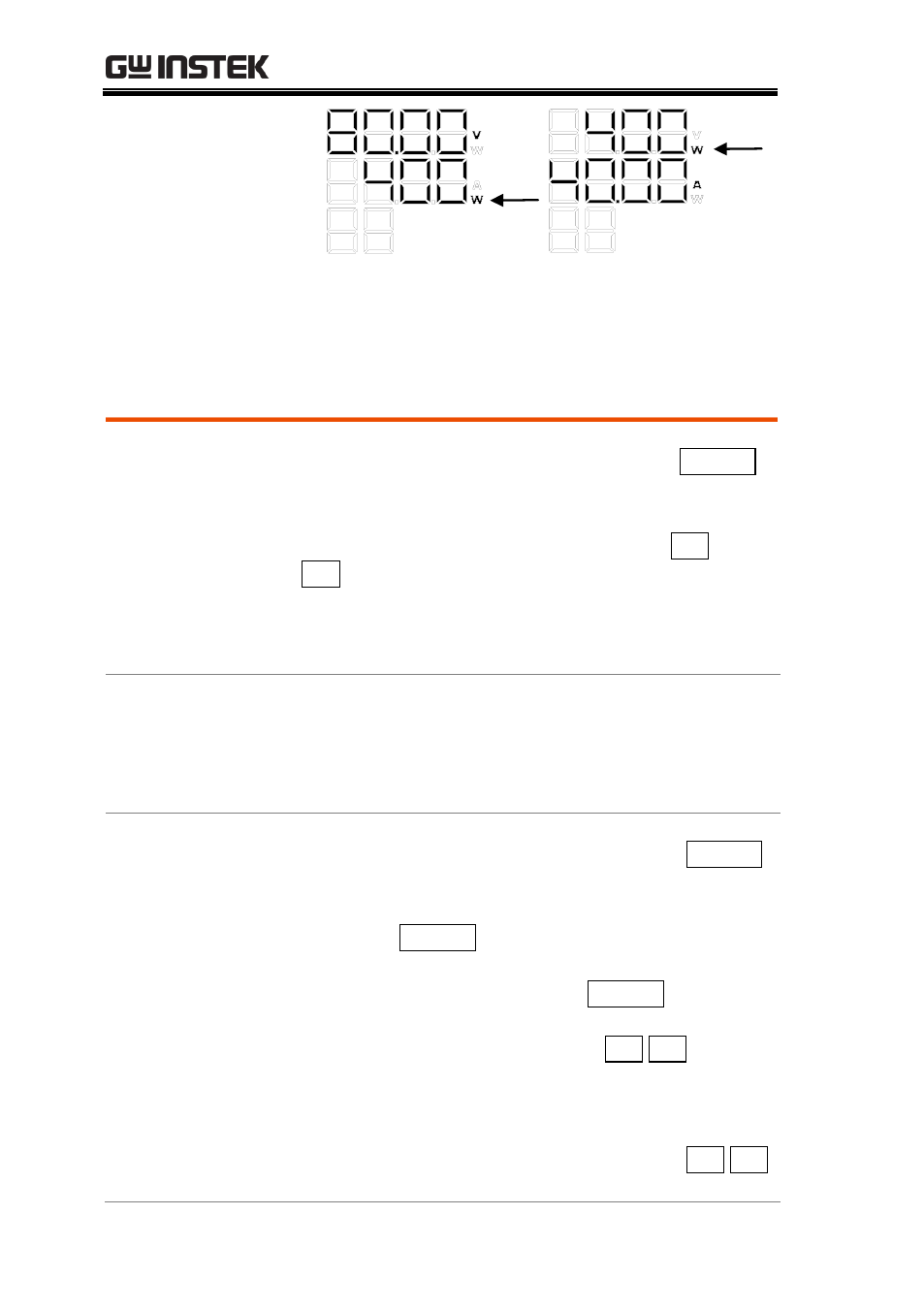

PSB-2000 Series User Manual

44

Fig. Power
Display

Voltage and

Power:

80V and 400W

Current and Power:

400W and 40A

How to Turn the Output On

Output Methods

Turning the output on or off using the OUTPUT
key.

Turning the output on or off using the CH1 or

CH2 key (PSB-2400L2 only).

Turning the output on or off using the external
control function.

Note

If the output is quickly turned off then on, then it
is possible that the voltage will not discharge
normally. Please allow the output to be off for a
least 1 second before turning the ouput on again.

Procedure

1. Turning the output on or off using the OUTPUT

key.

Press the OUTPUT key to turn the output on or
off. The Output is on while this key is lit. On
the PSB-2400L2, pressing the OUTPUT key turns
on or off the outputs for channel 1 and channel 2
simultaneously, but only if the CH1 CH2 keys
have been pressed beforehand to select channel
1 or B.

2. Turning the output on or off using the CH1 CH2

key. (PSB-2400L2 only)
