PSB-2000 Series User Manual

86

OUTPUT

Ends the sequence operation.

CAUTION

The OUTPUT key does not the start sequence
operation.
Use the PRESET 1 (

) key to start the sequence

operation. Even if the sequence function is
activated and the ―● SEQUENCE LED‖ is lit, the
sequence operation will not start unless the

PRESET 1 (

) key is pressed. Functions other

than the preset function will work normally even
when the ―● SEQUENCE LED‖ is lit.
If the OUTPUT key is pressed when a sequence is
running, the sequence operation finishes. Note that
ending a sequence operation is different from
turning off the output in the normal operating
mode.

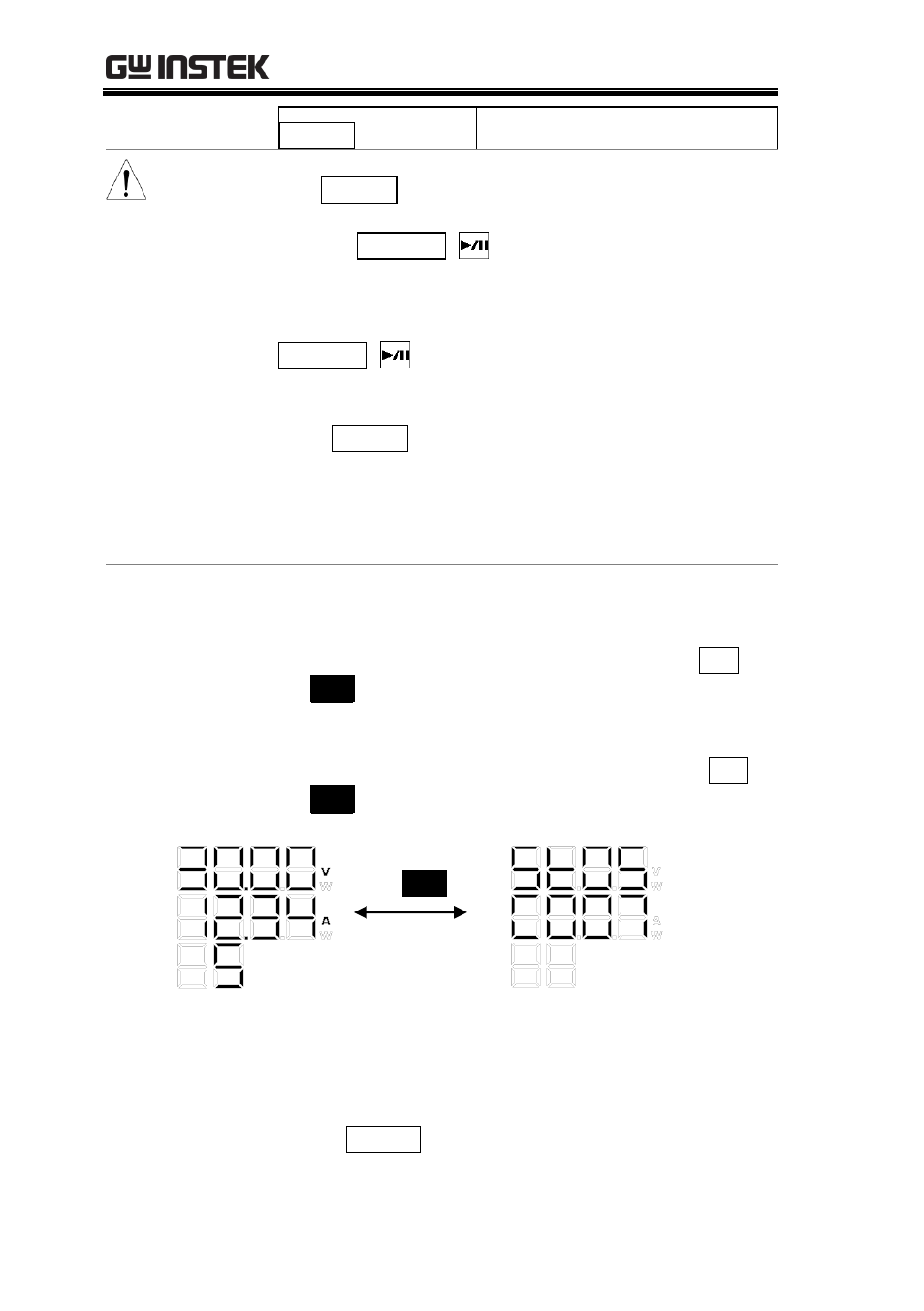

4. The display during a sequence operation is

different from that in normal operation. The
differences are shown below. When the ESC /

DISP

key is pressed during a sequence

operation, the step number is displayed on the
Voltage LED and the number of cycles is
displayed on the Current LED. Press the ESC /

DISP

key again to return to the previous

display.

Press

DISP

key

Step No.

Number
of cycles

Number of steps

Display 1 in sequence

operation

Display 2 in
sequence operation

5. During a sequence operation, the ―●

SEQUENCE LED‖ below
the PRESET key blinks, indicating that
sequence operation is being executed. To stop
