OPERATION

61

CAUTION

If the output is active at the end of the program as
shown in the figure above, the power supply
output will remain at the level of the last step even
after the completion of the sequence operation.
(I.e., the output stays active.)
The last step number must be set to OFF for the
the output to be turned off at the end of a
sequence.

The sequence operation will end prematurely if
the OUTPUT key pressed when a sequence is
running. Note however, that the output will
remain active at the level of the last step that was
executed when the OUTPUT key was pressed.

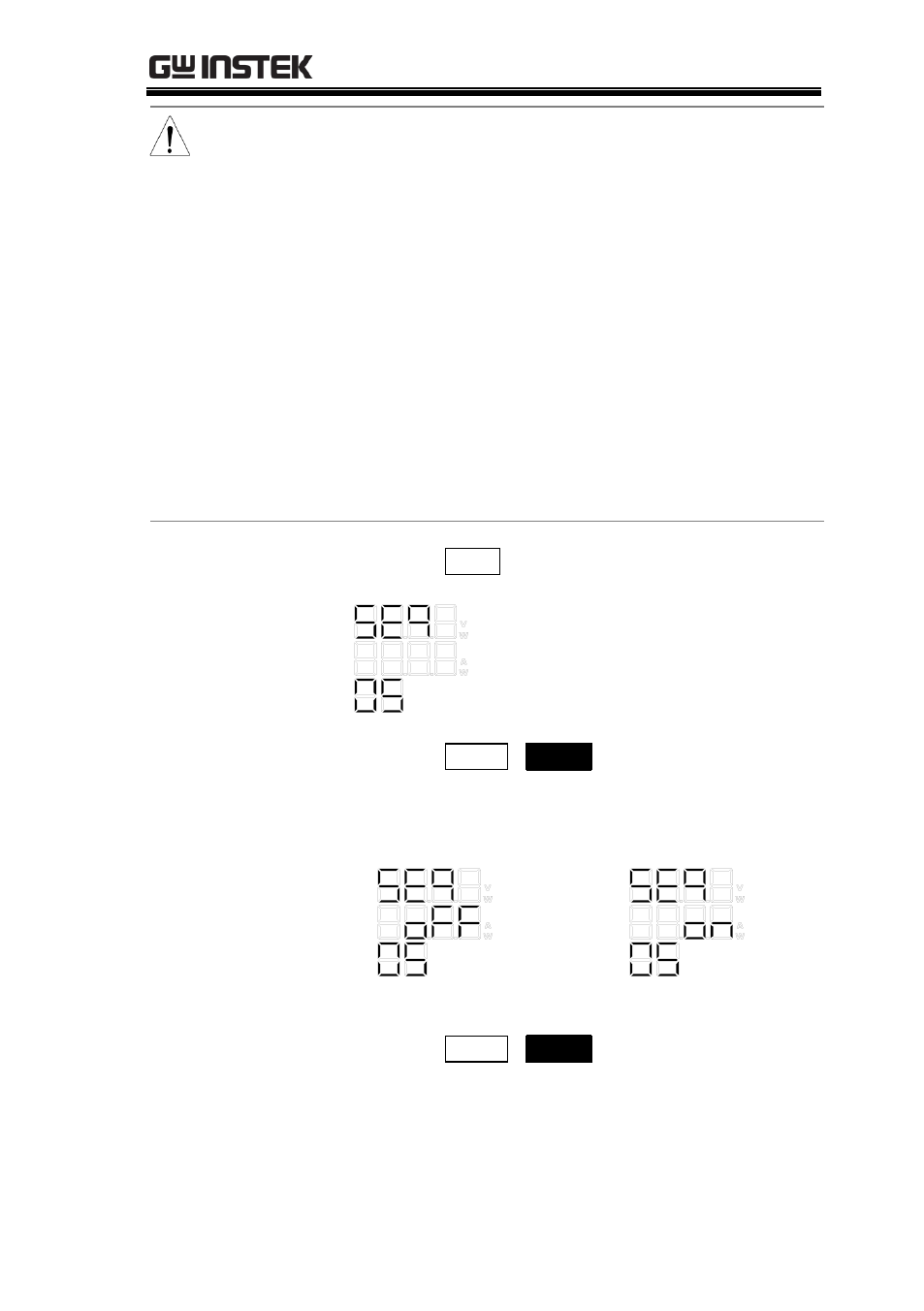

Procedure

1. Press the MENU key until menu number

―05‖(PSB-L) or ―4‖(PSB-H) is displayed.

2. Press the ENTER /

CHECK

key to enter the

sequence operation settings. Select ON or OFF
with the encoder wheel. By default the
sequence function is turned off.

Initial setting

Sequence operation activated

3. Press the ENTER /

CHECK

key to confirm the

setting.
The SEQUENCE LED below the PRESET key
turns on.
1 2 3
