OPERATION
41
Operation Ranges (PSB-2400H, 2800H)
 Voltage setting range: 0V to 800V (All models)
 Current setting range: 0A to 3A (PSB-2400H)
0A to 6A (PSB-2800H)
 Power setting range: 0W to 400W (PSB-2400H)
0W to 800W (PSB-2800H)
700V
600V
500V
400V
300V
200V
800V
0.5A 1A 1.5A 2A 2.5A 3A
Output current
Output voltage
400W Power limit line
PSB-2400H
133V
700V
600V
500V
400V
300V
200V
800V
1A 2A 3A 4A 5A 6A
800W Power limit line
PSB-2800H
133V
Output voltage
Output current

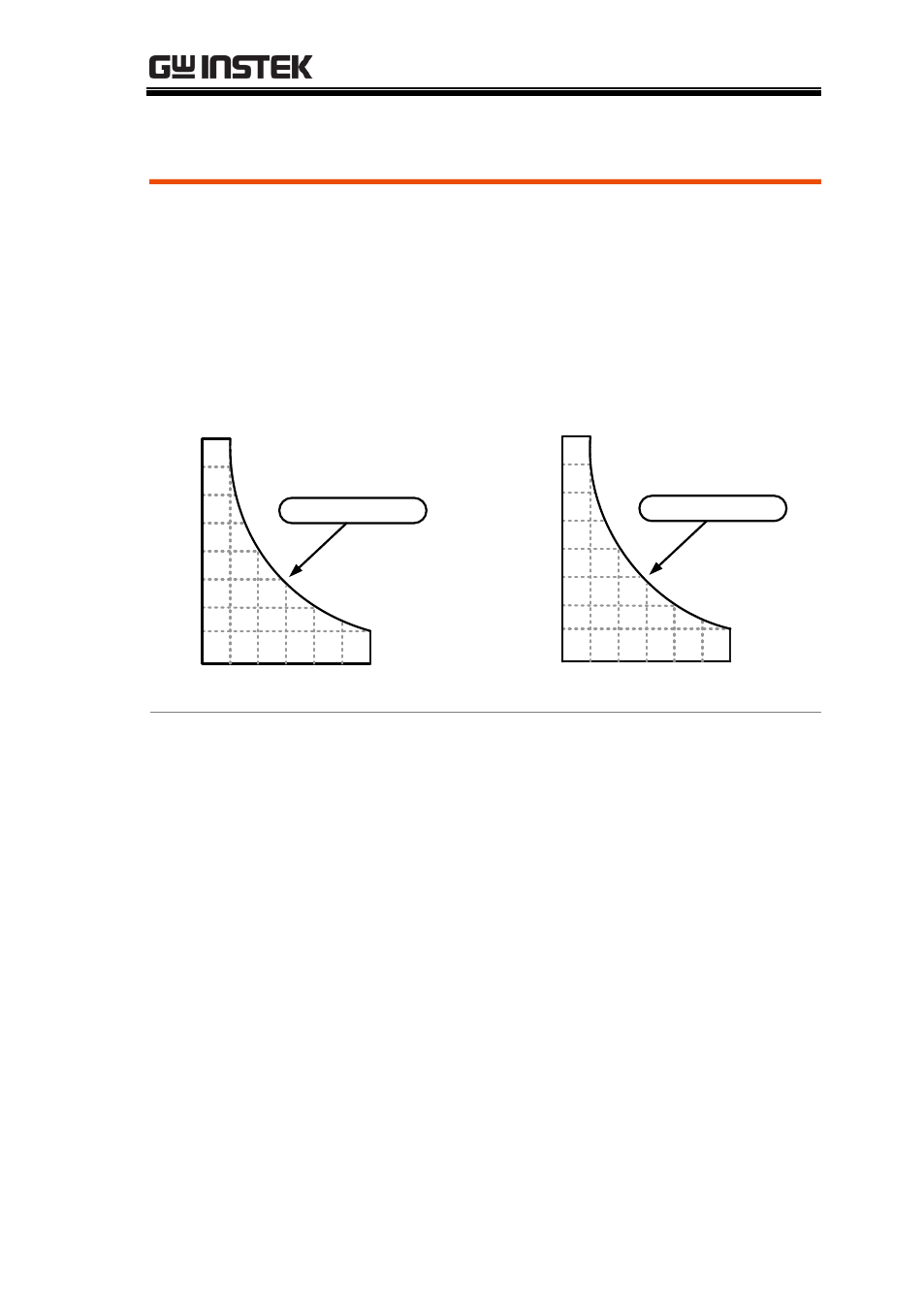

Fig. Operation Range of PSB-
2400H Operation Range of PSB-2800H
