PSB-2000 Series User Manual

18

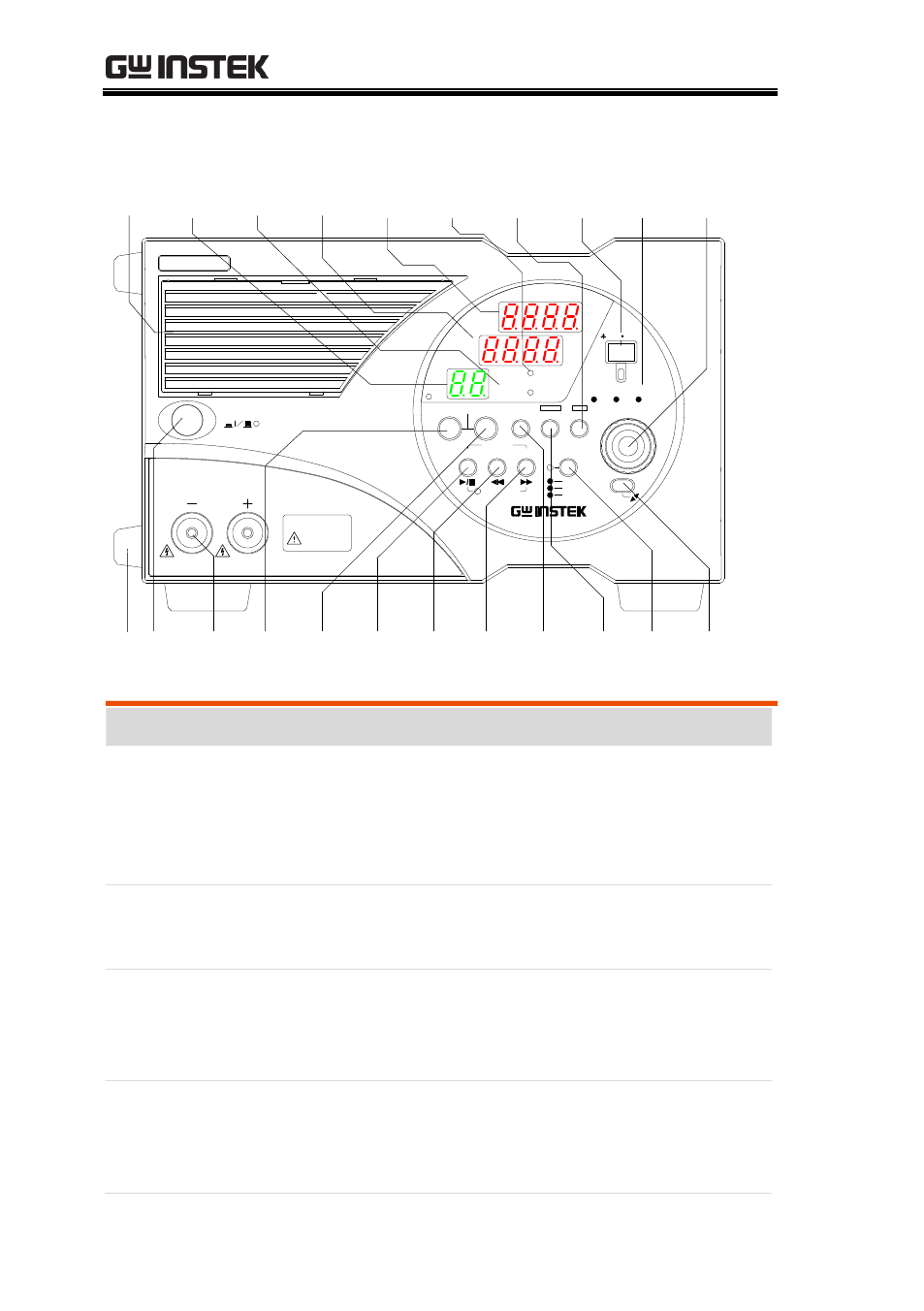

Front Panel (PSB-2400H shown)

1 5 6 7 8 9 10 11 12 13

2 3 4 14 15 16 17 18 19 20 21 22

POWER

CAUTION

MAX

400W

MAX DC 800V

MAX DC

3A

PSB - 2400 H

CHECK

ENTER

REMOTE

FAST

LOCK

Hi -

W

V

A

CV

MENU

SEQUENCE

PRESET

3

2

1

FAST/ LOCK(3s)

/ LOCAL

OUTPUT

OFF TIMER

DISP

ESC

MENU

W

CC

CP

A

W

R

O

T

A

T

E

V

( L Type ONLY)

W

Regulated DC Power Supply

ON /

OFF

Item

Description

1

Front grill

This is a ventilation grill for for cooling the
internal circuits. It is detachable and has a dust
filter inside. Clean the filter periodically. See page
142.

2

Rubber feet

Detachable. If the unit is mounted in a rack and
the feet are not needed, they may be removed.

3

POWER
ON/OFF
switch

Depress the switch to the (I) position to turn on
the power supply unit. Press it again to turn off
the unit.

4

Front output
terminals

Output is supplied through these terminals. The
maximum current is 40A(2400L, 2800L, 2400L2,
2800LS), 3A(2400H) or 6A(2800H).
