PSB-2000 Series User Manual

50

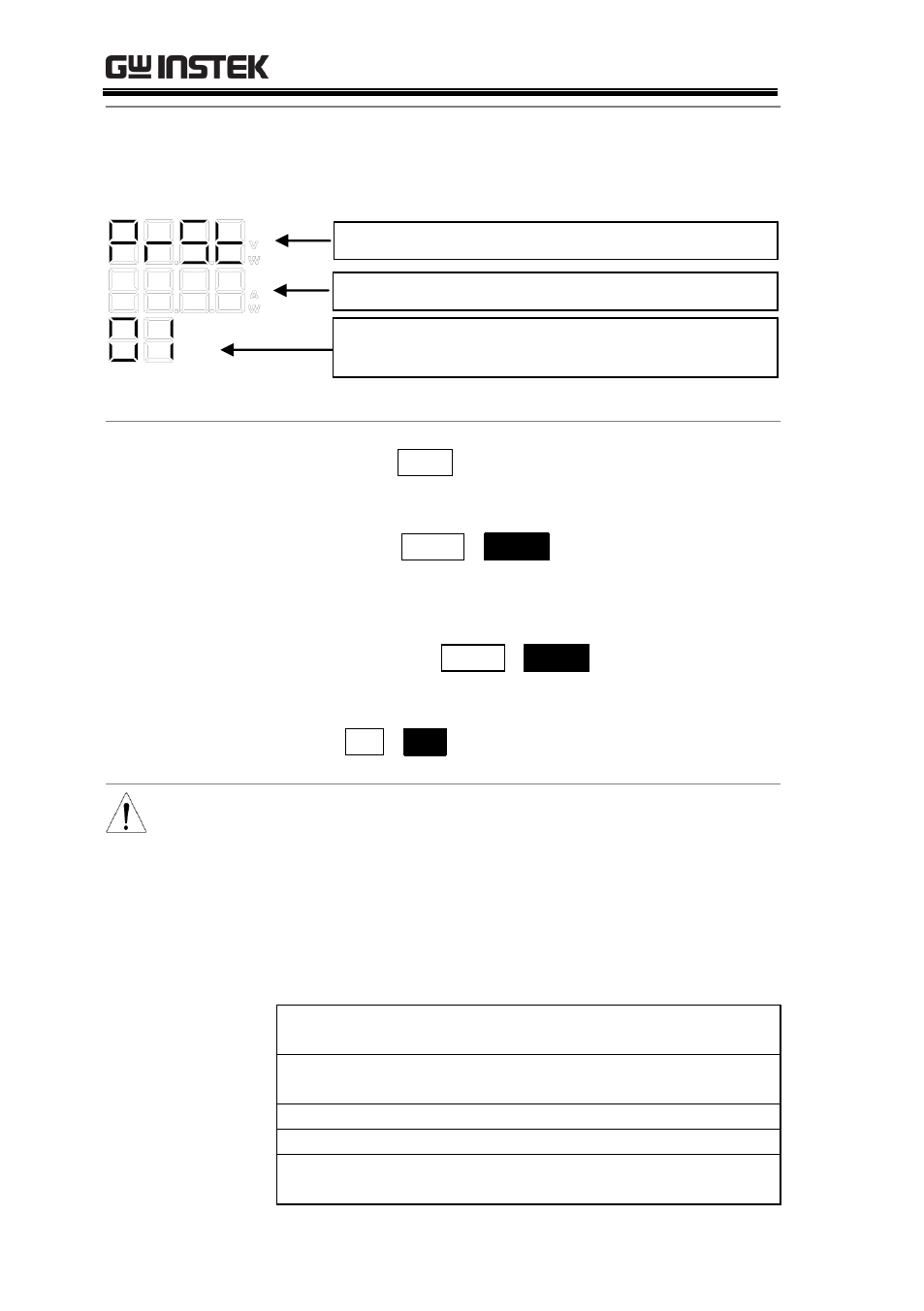

The diagram below can be used as a reference for the menu
operations in the following pages:

General Setting
Procedure

1. Press the MENU key until an intended function

number is displayed.

2. Press the ENTER/

CHECK

key to validate the

function. Proceed to setting of the next item.

3. Set a numeric value or item with the encoder,

and press the ENTER/

CHECK

key to validate it.

4. When all intended items have been set, press

the ESC/

DISP

key to return to the normal state.

CAUTION

Set values are only validated after the ENTER /
CHECK key is pressed.
Be sure to check that the value is set properly after
setting it.
Some functions may not be settable as some
functions cannot be used together. See the table
below for details.

Set function

Functions that cannot be set or
used simultaneously

Preset

Sequence
External(voltage/resistance)

OVP/OCP

-

Hi-Ω (PSB-L Series Only)

-

Off timer

Sequence Delay External
(On/Off)

Voltage LED

Current LED

2 digit LED for displaying the number of cycles,
step No., and menu No.
