OPERATION

81

Output ON/OFF with External Contacts

Introduction

The output can be turned on or off using external
contact switches if the external control function is
activated.

External Control Pins for Output ON/OFF
control:

CH1: Pins 21 and 22 (COM)
CH2: Pins 12 and 13 (COM)
Short: OUTPUT ON
Open: OUTPUT OFF

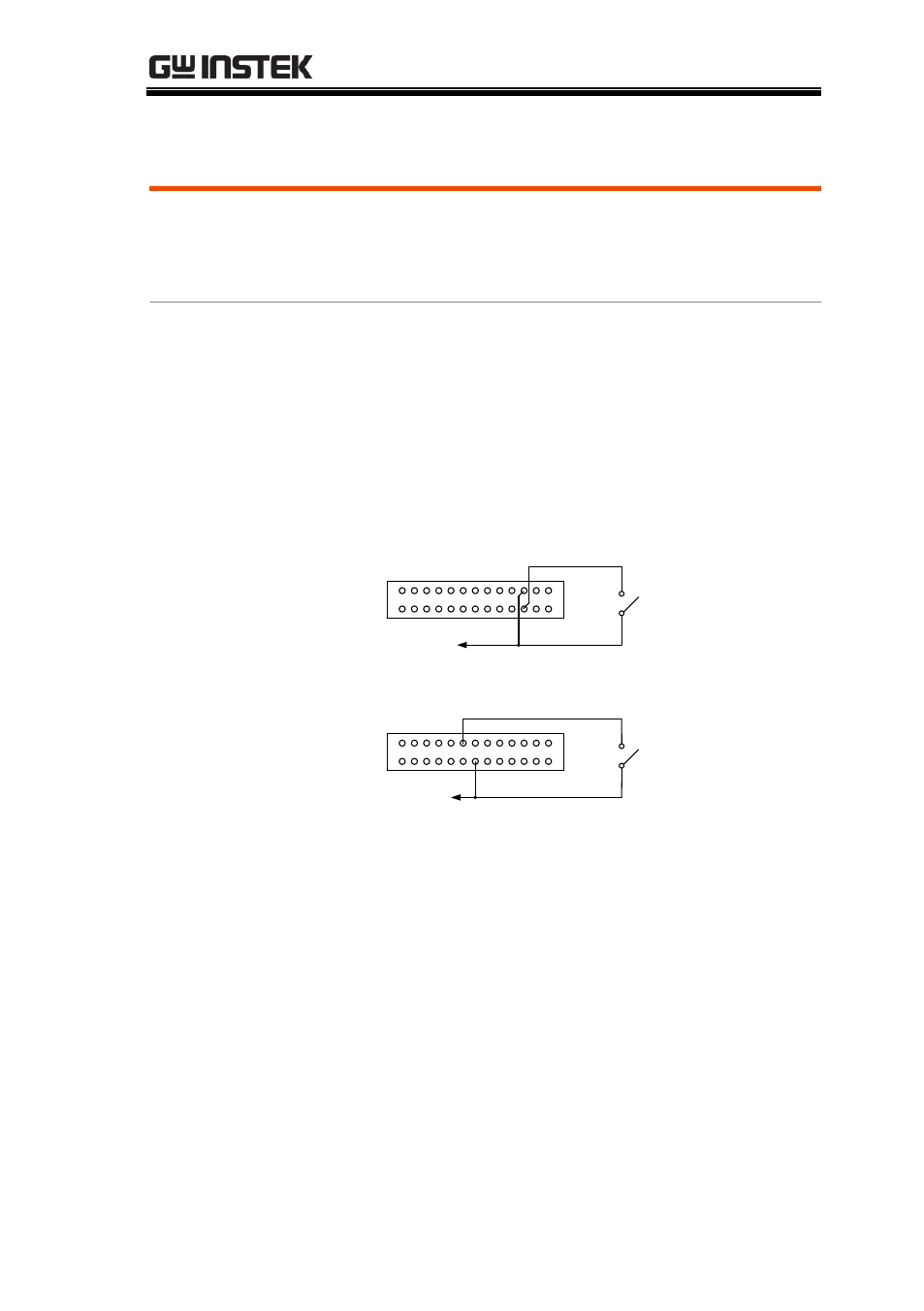

Fig. Output
ON/OFF Pins with
External Contacts

1

2

25

26

EXT CONT (J3)

Negative output

terminal of CH1

1

2

25

26

EXT CONT (J3)

Negative output

terminal of CH2

CH2

OUTPUT

ON/OFF

CH1

OUTPUT

ON/OFF
