Operation Ranges (PSB-2400L, 2800L,
2400L2, 2800LS)
Introduction
The PSB-2000 series power supply units offer
wider voltage and current range settings, within
the rated power envelope, than our traditional
models.
Voltage setting range: 0V to 80V
(All models)
Current setting range: 0A to 40A
(PSB-2400L & PSB-2400L2)
0A to 80A
(PSB-2800L & PSB-2800LS)
Power setting range: 10W to 400W (PSB-2400L & PSB-2400L2)
10W to 800W (PSB-2800L & PSB-2800LS)
70V
10V
60V
50V
40V
30V
20V
80V
5A
10A
15A
20A
25A
30A
35A
40A
Output current
Output voltage
400W Power limit line
70V
10V
60V
50V
40V
30V
20V
80V
10A
20A
30A
40A
50A
60A
70A
80A
800W Power limit line
Output voltage
Output current

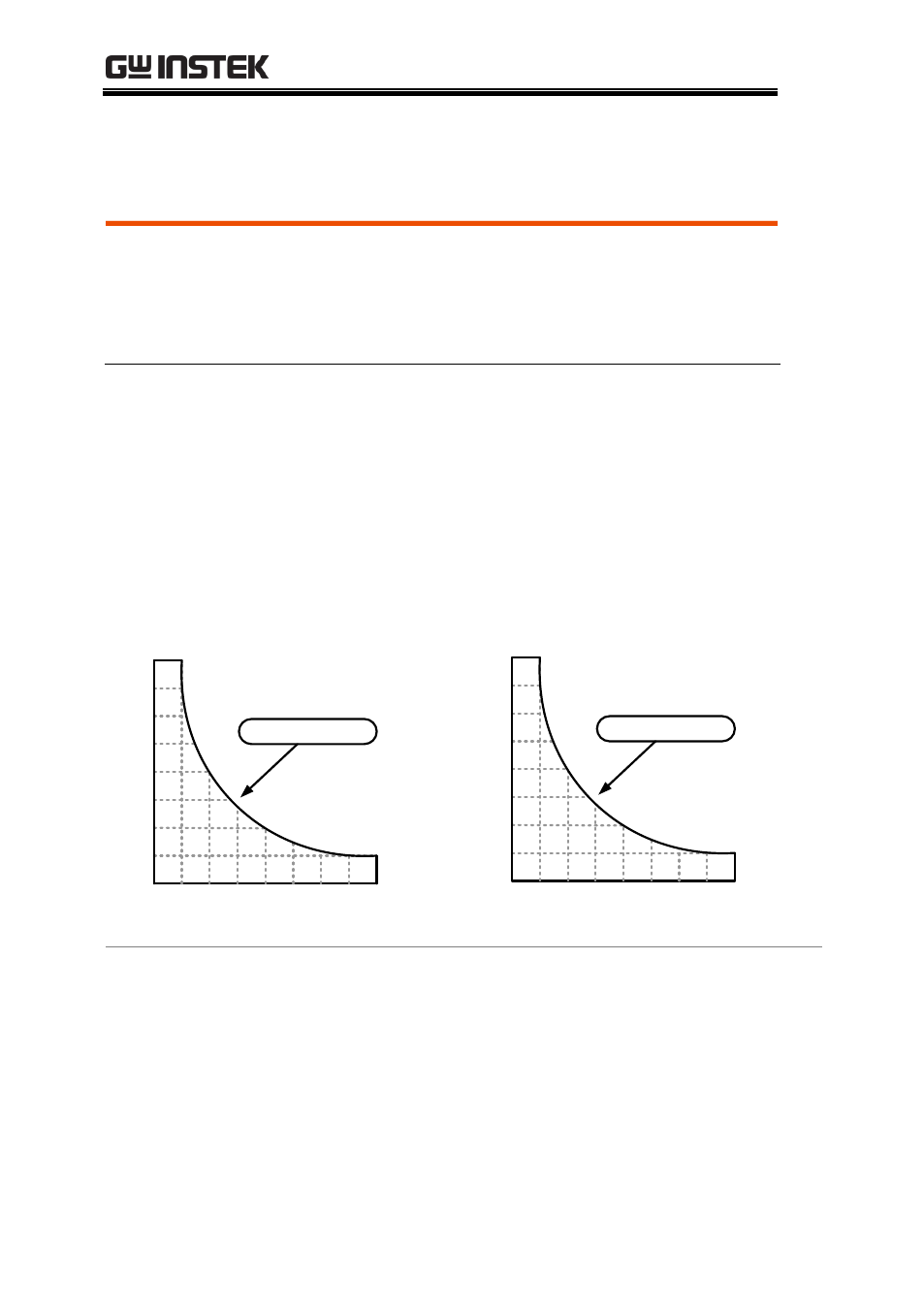

Fig. PSB-2400L/L2 Operation
Range
Fig. PSB-2800L/LS Operation range
