PSB-2000 Series User Manual

68

3. Press the ENTER /

CHECK

key to confirm the

setting.
The DELAY LED in the center of the panel turns
on.

OFF TIMER

DELAY

Hi-Ω

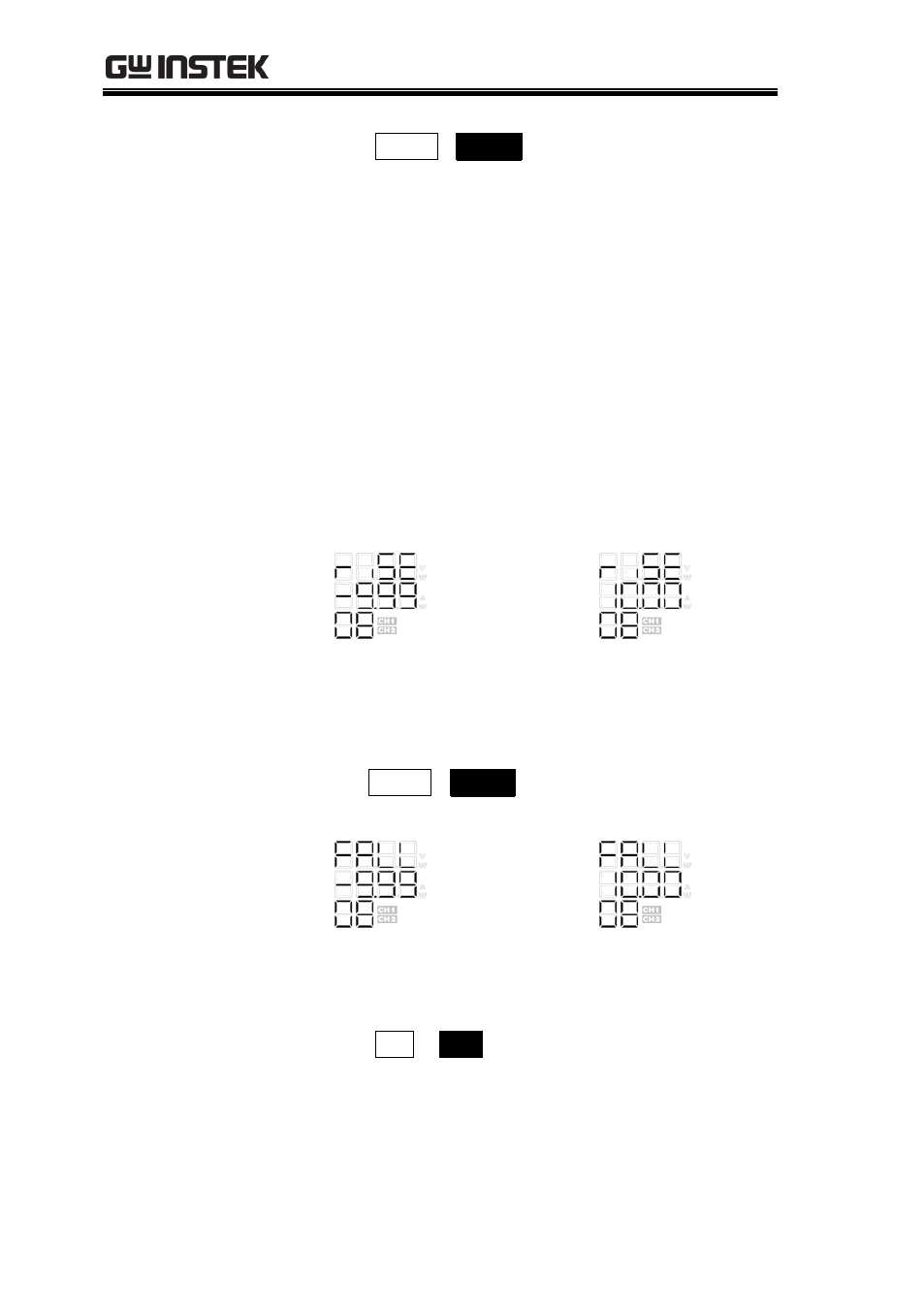

4. Set the rise delay time with the encoder wheel.

When a positive time is set, the output of channel
2 is delayed with respect to channel 1. On the
contrary, when a negative time is set, the output
of channel 2 leads that of channel 1. The delay
time can be set in the range of -9.99 seconds to
+10.00 seconds in steps 10 ms.

The output of channel 2 is
turned on 9.99 seconds
earlier

The output of channel 2 is
turned on 10.00 seconds
later.

5. Set the fall delay time with the encoder wheel, and

press the ENTER /

CHECK

key. The delay function

setting is now complete.

The channel 2 output is
turned off 9.99 seconds
earlier

The channel 2 output is
turned off 10.00 seconds
later.

6. Press the ESC /

DISP

key to quit the delay settings

and return to normal operation.
