OPERATION
47
How to Rotate the Display Panel 90 Degrees for Vertical
Installation
The display panel on the PSB-2000 series can be
rotated 90 degrees so that the unit can be operated
comfortably in either the horizontal or vertical
orientations. Hold the encoder wheel and rotate
the orientation of the panel while pressing the
ROTATE key below the encoder wheel. Keep
turning the panel until a ―click‖ sound is heard.
This indicates that the panel is now locked in
place.
CAUTION Be sure to confirm that the POWER switch is off
before rotating the display panel.
If the display panel is rotated with the power on,
the set value may change due to the rotation of the
encoder wheel.

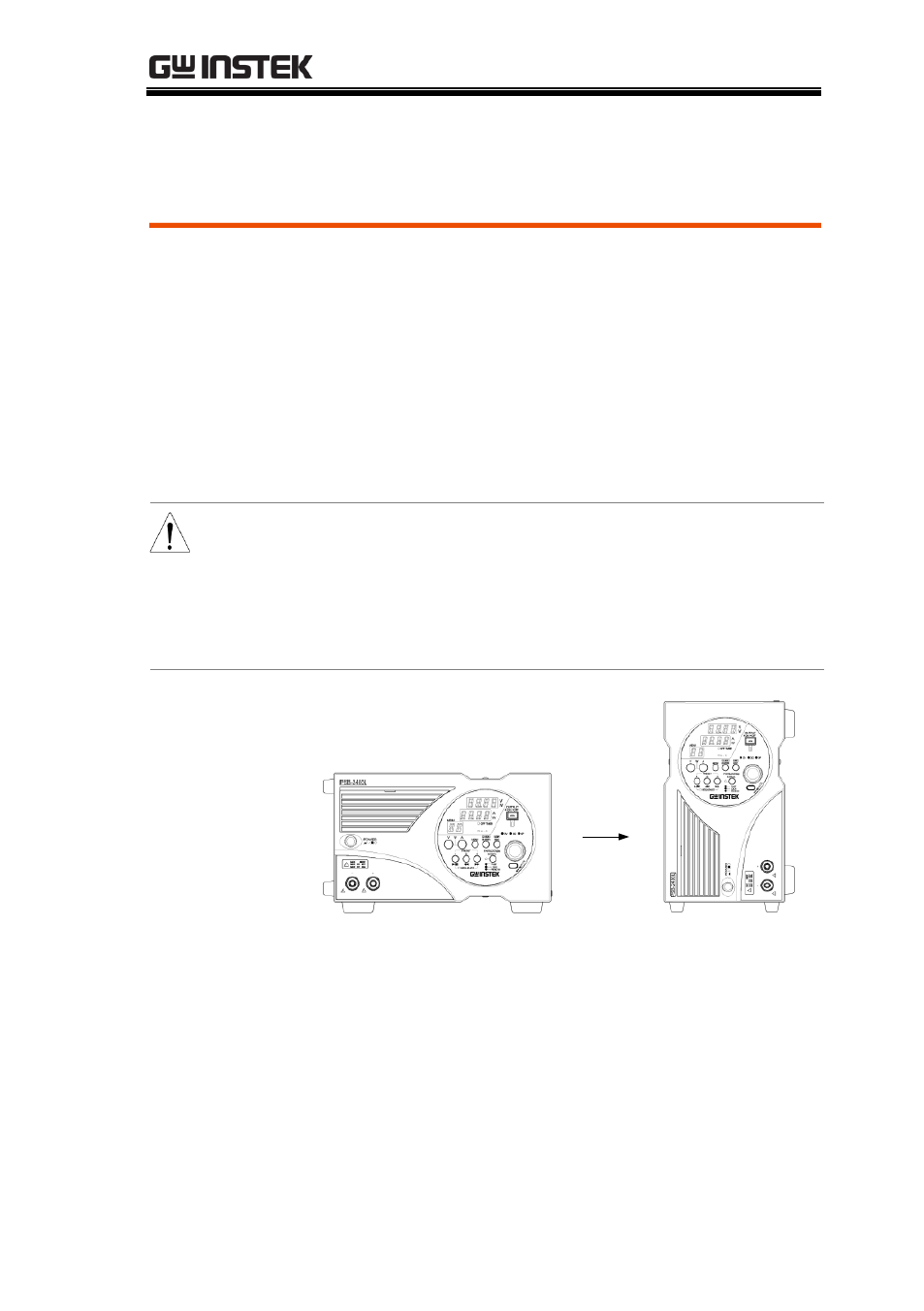

Fig. Rotating
Display Panel
Horizontal installation Vertical installation by
rotating the display panel
