ARINC 429 Basic Right-Hand Dialog

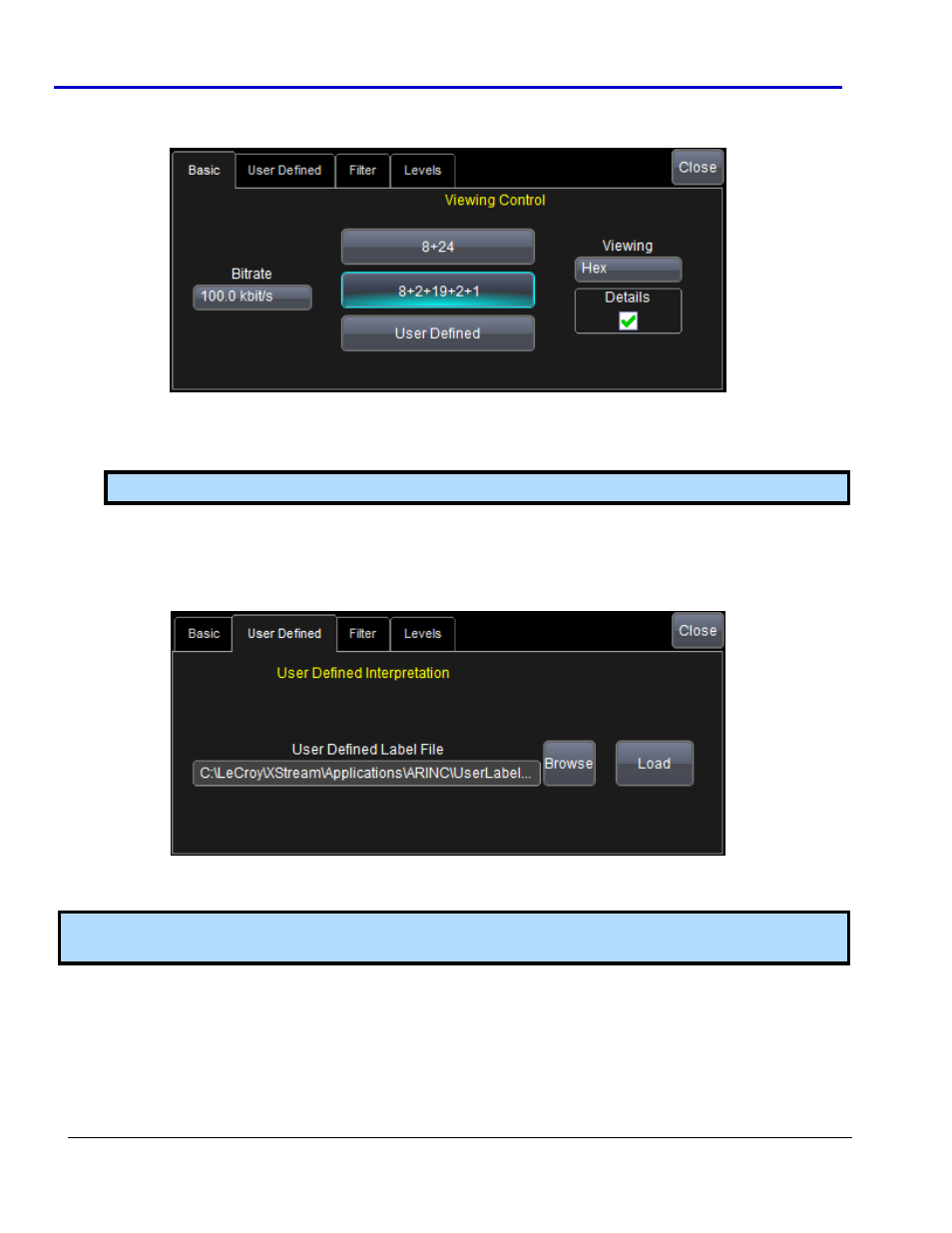

The Basic right-hand dialog provides detailed controls and setup conditions as follows:

Bitrate - Provide a value using the pop-up numeric keypad. Typically 12.5 or 100 kbps.

Viewing Control Buttons - These three buttons control how the data is decoded on waveforms into 8+24,
8+2+19+2+1, and User Defined word format divisions.
Note: User Defined must be selected in order to view a user-defined label file from the Symbolic dialog.

Viewing - Choose the format you wish to view your decoded waveforms from Binary, Hex, and Decimal.

Details - Marking this checkbox provides an extra layer of information in the decode. This is visible when
looking at trace annotations on a decoded waveform.
ARINC 429 User Defined Right-Hand Dialog
The User Defined right-hand dialog can be used to provide a personalized interpretation of your ARINC 429
decode.
Note: The User Defined Viewing Control button must be selected on the Basic dialog in order to view a User
Defined Label File.

Browse - Click this button and navigate to locate your label file.

Load - Once you've found your label file using the Browse button, click this button and apply it to your
ARINC 429 decode.

Clear - Use this button to remove your user-defined labels from your ARINC 429 decode.
