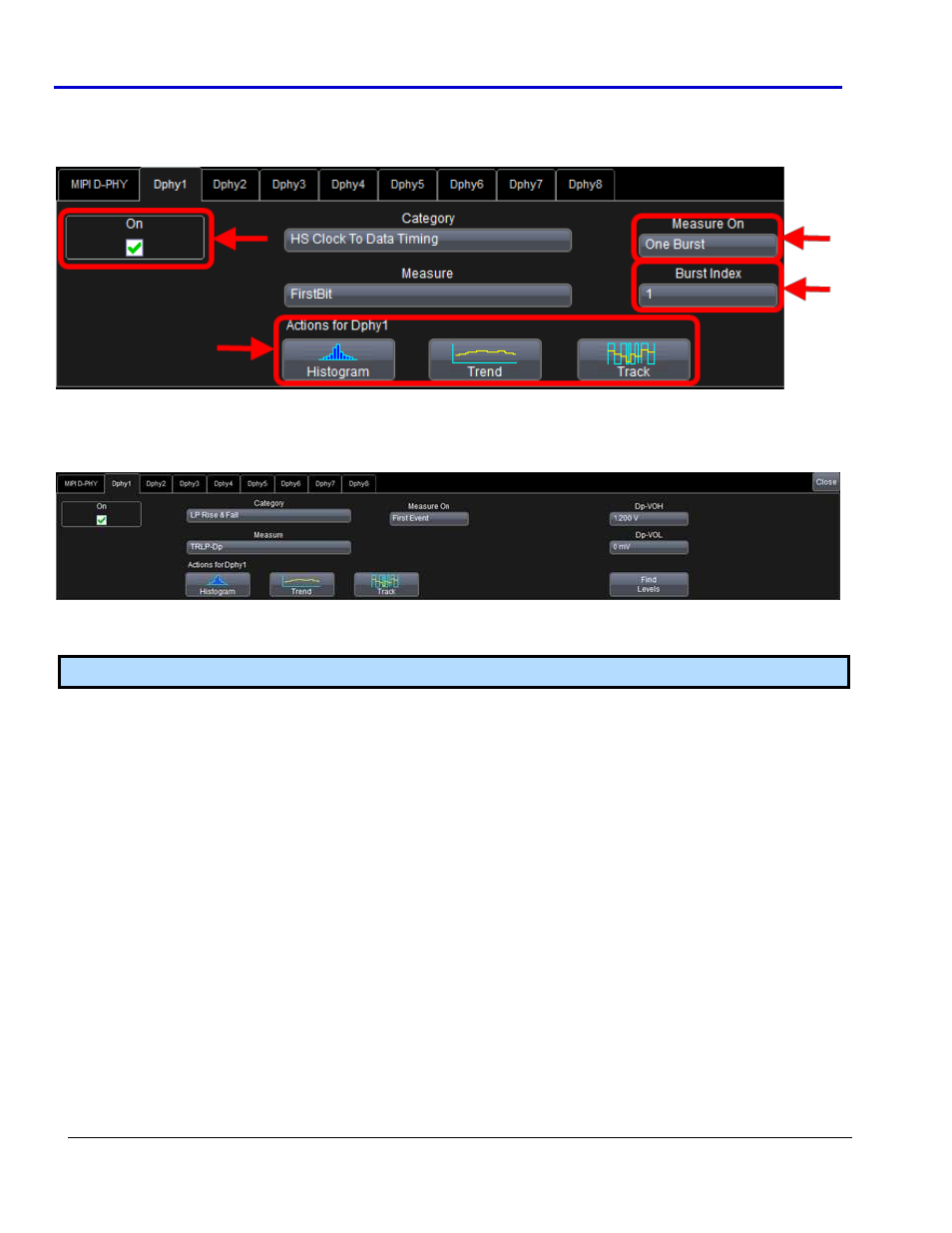

Go directly to its corresponding test dialog and enable/disable it from there. Additional controls for Measure
On, Burst Index, and Actions for Dphy1 buttons are made available from the specific test dialog.
LP (L OW P OWER ) T ESTS
All Dphy1 - X dialogs have controls for On, Category, Measure On, Measure and Actions for Dphy1 buttons.
When the LP Rise & Fall category is selected, Dn-VOH, Dn-VOL, and Find Levels controls are also shown.
With LP (Low Power) selected as your Mode on the Mode and Input Selection Area of the MIPI D-PHY Dialog
(on page 135), Categories and Measurements on the Dphy1 - X dialogs vary in the following manner.
Note: For HS (High Speed) Tests, refer to the HS (High Speed) Tests (on page 139) topic.
