The ProtoSync Right-Hand Dialog

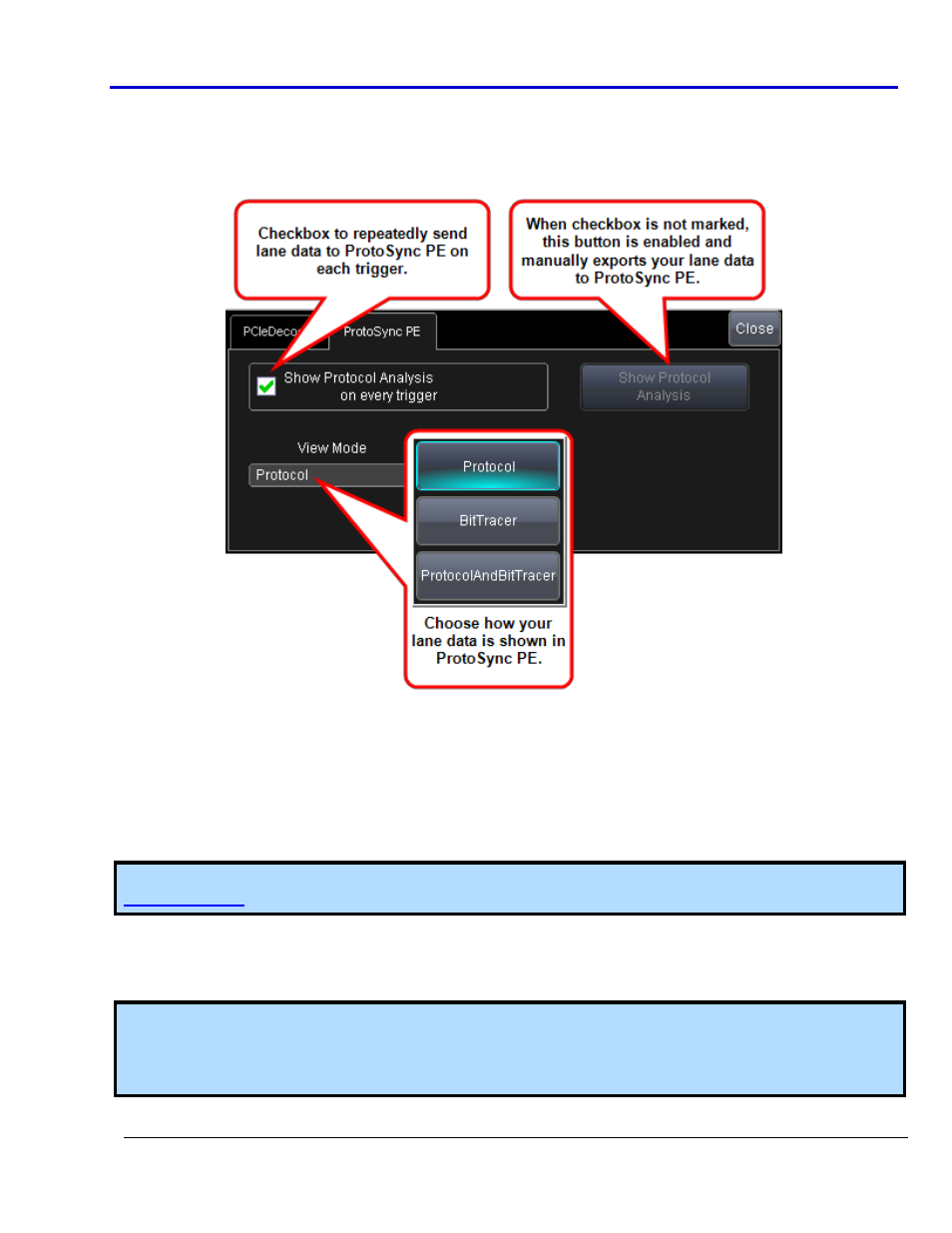

After setting up your specific Lane configuration, use the ProtoSync right-hand dialog for PCIEbus D to either
repeatedly send your Lane data to ProtoSync on each oscilloscope trigger or manually exporting the Lane data
to ProtoSync
.

Enable Time Sync between Scope and PE Tracer - Marking this checkbox disables the Export Now button
and repeatedly sends data to ProtoSync on each oscilloscope trigger.

View - Choose to send your data to ProtoSync and have it displayed in Protocol, Bit Tracer, or use Both
views.

Export Now - When the Enable Time Sync between Scope and PE Tracer checkbox is unmarked, this
button is enabled and allows you to manually export your data to ProtoSync and displayed in the manner
selected from the View field.

Note: Please refer to the LeCroy PETracer™ PCI Express Protocol Analyzer Software user manual at

www.lecroy.com

for information regarding more specific usage.

PCIEbus Decode Trace Annotations

Like all trace annotations, PCIEbus Decode annotations are rectangular shadings used to highlight messages on
decoded waveforms for easy viewing.

Tip: Data packets (or messages) on properly decoded protocol signals can be viewed using Serial Decode Trace
Annotations
(on page 18), the Protocol Results Table (on page 19), and/or by Searching for Messages (on
page 21)
(Types and Subtypes). Using these tools together provides fast insight to your data. See Serial Decode
Trace Annotations
(on page 18) for more information.
