Serial Data Debug Solutions
144 919586 RevA

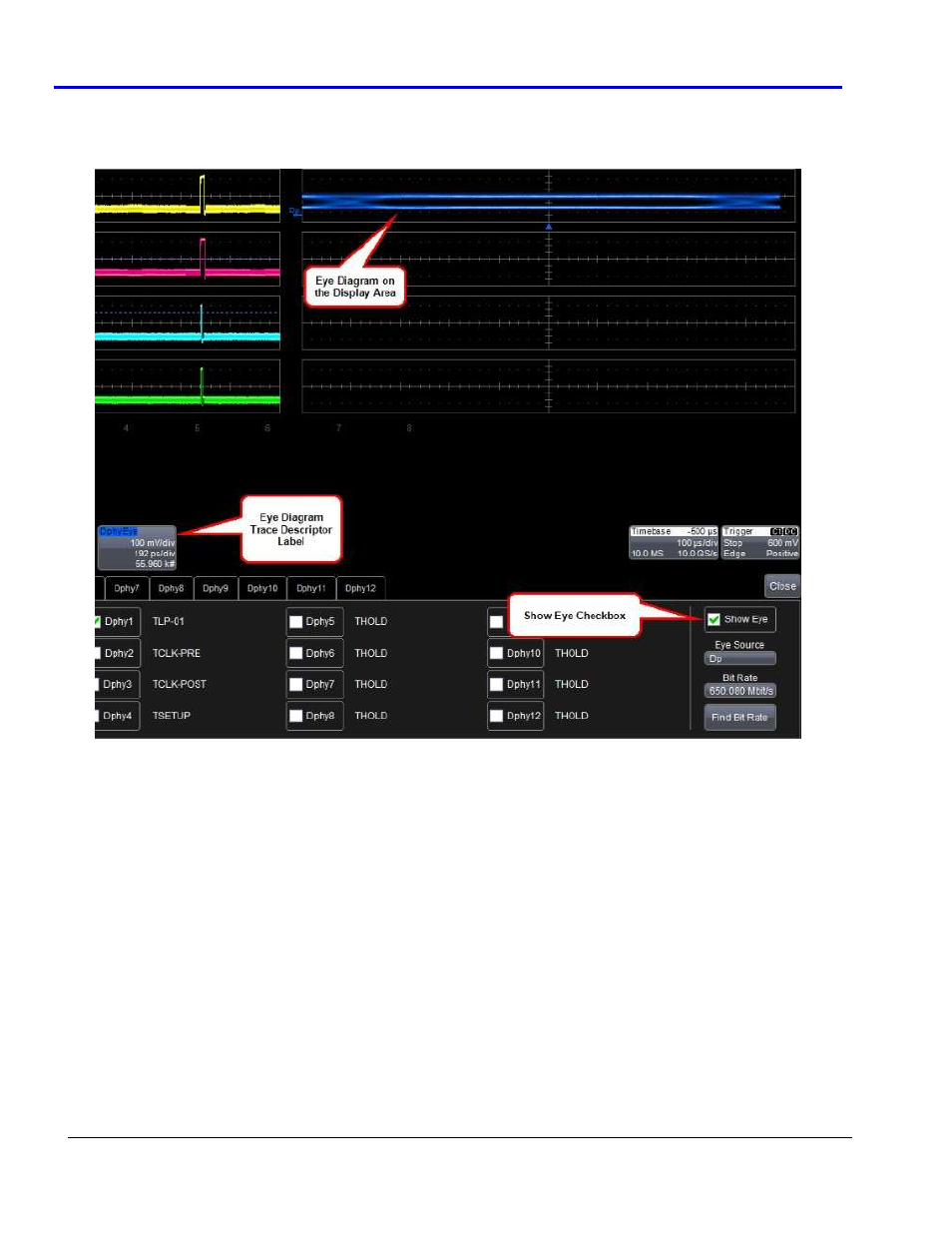

Show Eye
Marking this checkbox shows the eye diagram trace on the display area and includes a corresponding trace
descriptor label.
Eye Source
With HS High Speed Mode (LP Mode disables the Eye Diagram Control Area) selected and inputs selected as
indicated in the Mode and Input Selection Area of the MIPI D-PHY Dialog (on page 135) topic, use the Eye
Source field to select the HS signal (Dp (Data Positive), Dn (Data Negative), CLKp (Clock Positive), and CLKn
(Clock Negative)) for use on your Eye Diagram.
Additional choices for your Eye Diagram include Ddiff (Differential Data) and CLKdiff (Differential Clock).
Bit Rate and Find Bit Rate
These fields allow you to either enter a specific Bit Rate, or have MIPI D-PHY find your signal's bitrate.
