Serial Data Debug Solutions

190

919586 RevA

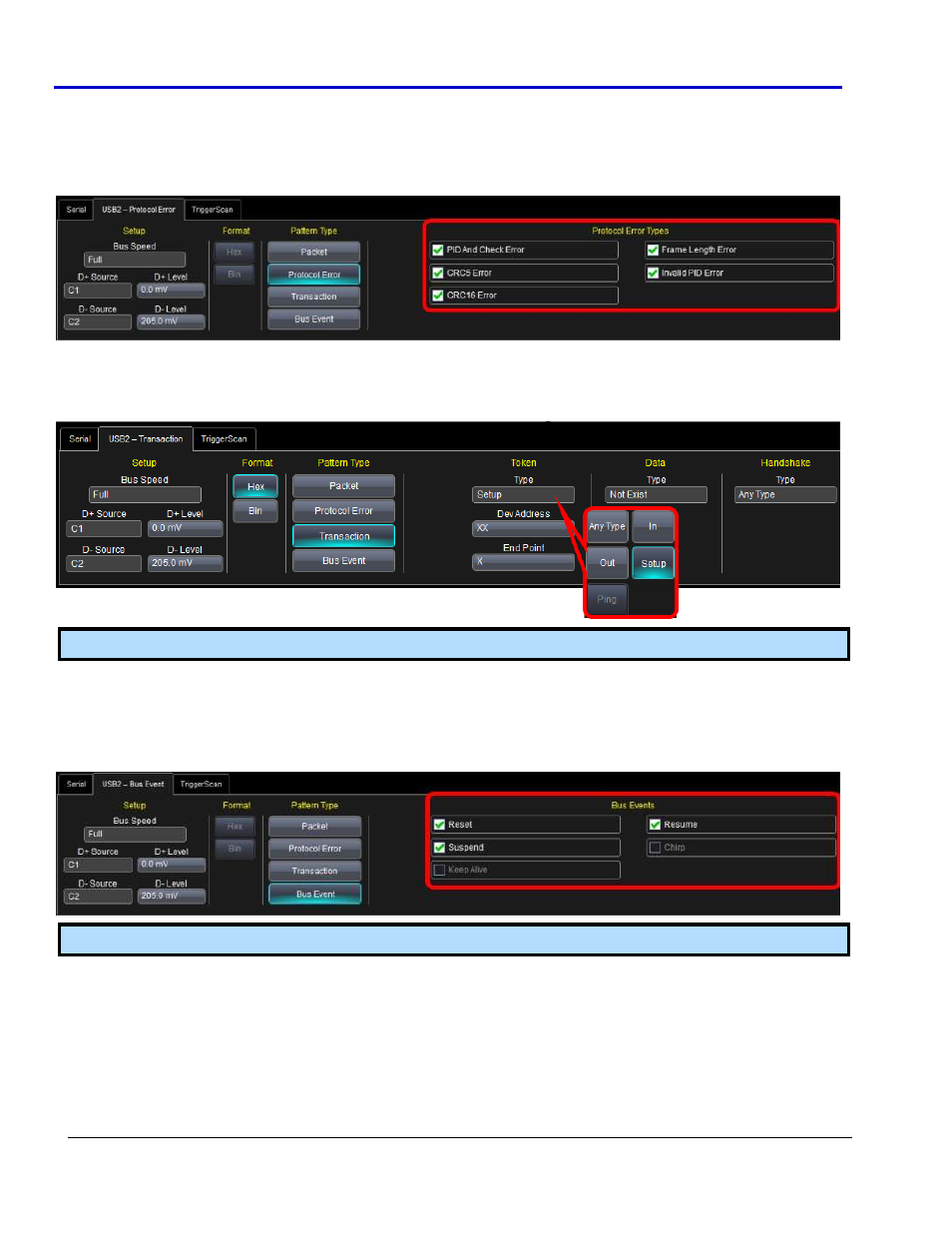

Protocol Error Pattern Type Selection Controls

With the Protocol Error pattern type selected, the following Protocol Error Type checkboxes are provided on the
dialog for PID And Check Error, Frame Length Error, CRC5 Error, Invalid PID Error, and CRC16 Error. Mark the
protocol error types as desired.

Transaction Pattern Type Selection Controls

With the Transaction pattern type selected, Token, Data, and Handshake sections of the dialog are shown. Each
of these three sections contain a Type control where you can select Any Type, In, Out, Setup, or Ping values.

Note: Transaction Pattern Type values are enabled or disabled based on Bus Speed selection.

Additional Dev Address and End Point controls are provided for the Token section of the dialog.

Bus Event Pattern Type Selection Controls

With the Bus Event pattern type selected, the following Bus Event checkboxes are provided on the dialog for
Reset, Resume, Suspend, Chirp, and Keep Alive. Mark the bus event types as desired.

Note: Bus Event checkboxes are enabled or disabled based on Bus Speed selection.
