DigRF 3G Decode Search

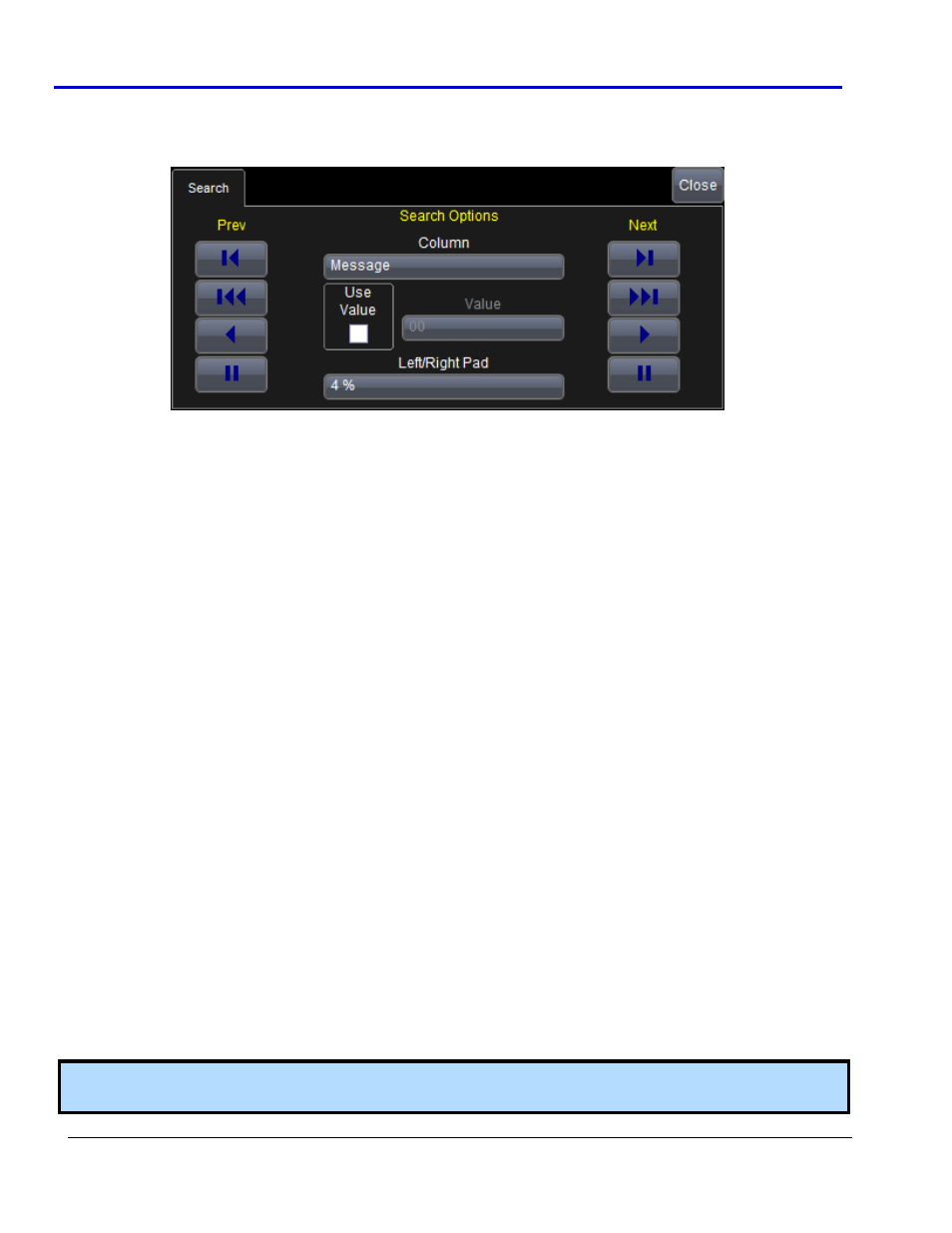

After clicking the Search button from the Decode dialog, the Zoom dialog is shown along with the DigRF 3G
Search right-hand dialog.
N AVIGATION F IELDS
On either side of the dialog there are four Prev and Next buttons for navigating through each occurrence, jump
to the last or first occurrence, play in either direction, and pause.
S EARCH O PTIONS F IELDS
Search Options fields in the center of the dialog allow you to restrict your search based on parameter values for
Column, Left/Right Pad, and Value. Value may be included or excluded from the search parameters using the
Use Value checkbox. Provide a percentage value in the Left/Right Pad field if desired.
The following Column field values are available for your searches.

Message

Time

Synch

LCTS - Logical Channel Types

CTS/RTI

TxRx - Transmit or Receive

WordName - A user-defined value when the DigRFv4_B10I.xml file is modified as described in
Customizing WordName and Comment Definitions (on page 128).

Comment - Another user-defined value when the same DigRFv4_B10I.xml file is modified.

Payload size - Packet Size

Payload - Raw data

I Data - In-Phase payload interpreted data.

Q Data - Quadrature payload interpreted data.

Frame - Start and stop time of the packet (hidden column).

Attributes
Using the DigRF v4 Option
Using the DigRF v4 Option Overview
The DigRF v4 option displays the digital conversion of I and Q RF signals, and then displays the entire frame
structure, including the Sync field, Header, Payload Size coding, and Payload.
Note: Ask your local LeCroy representative for more information about any Serial Data Debug Solution
Protocols or Toolkits using the Contact LeCroy for Support (on page 199) topic.
