FibreChannel Decode Table Column Details

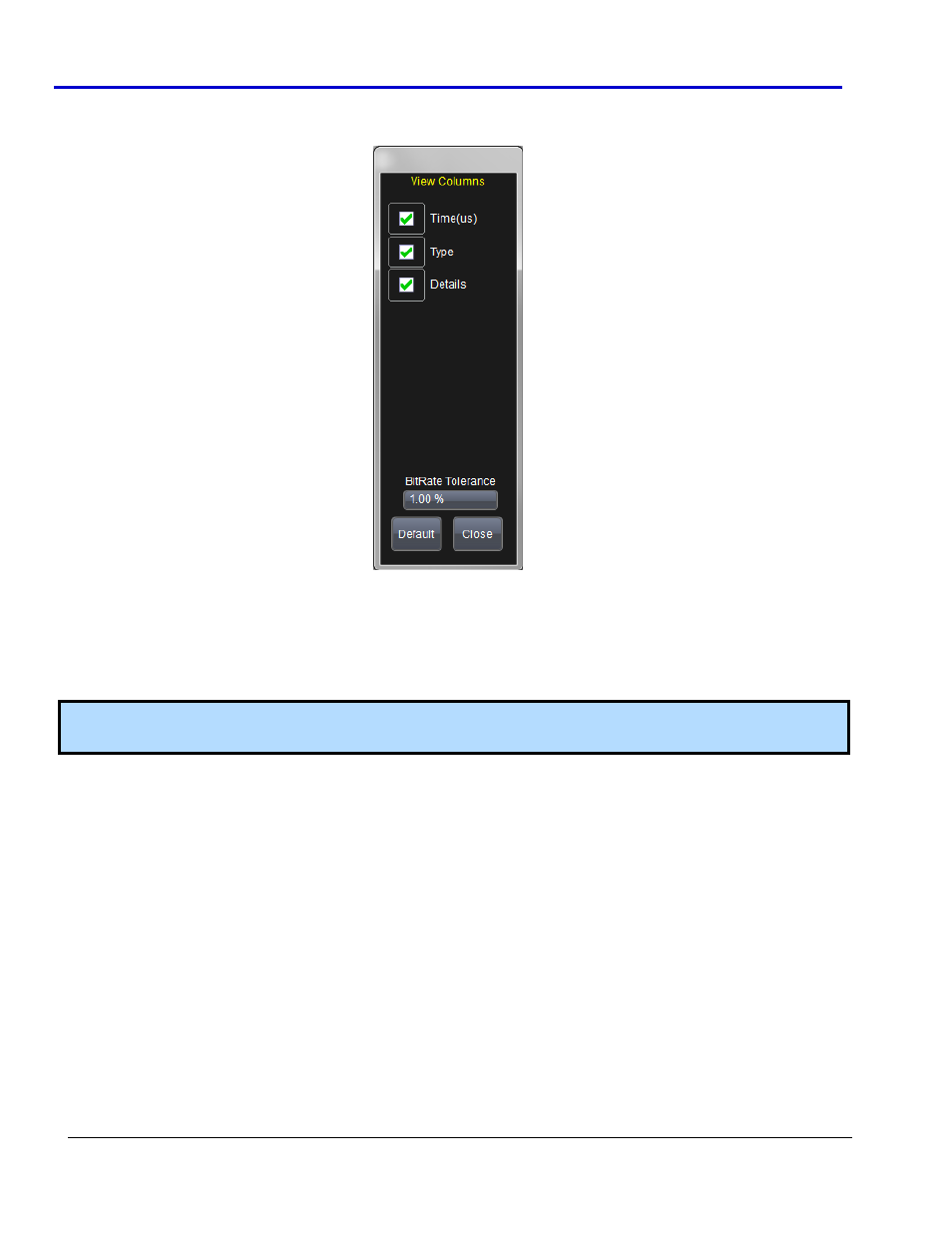

FibreChannel table column values available include the following:
Make selections as desired. You can also set a BitRate Tolerance percentage or touch the Default button to load
the preset selections. Touch the Close button when finished.
See Protocol Results Table (on page 19) for general information about the Table display.
After setting up your FibreChannel decode and checking the View Table checkbox, the table should be shown on
the display grid.
Note: After touching the View Table checkbox, touch the Close button at the upper-right portion of the
Decode Setup dialog to maximize the display grid area.
E XPORTING T ABLE D ATA
You can also Exported your table data as a .CSV file. Touch the Export Table button on the Decode Setup...
dialog and follow the procedure explained in Using The D Supported Protocol Toolsets (on page 14).
